A Comprehensive Logging Evaluation Method for High Quality Shale Gas Reservoirs in Fuling
-
摘要:
为了准确评价涪陵页岩气田地质与工程“双优”储层，首先定性分析了气田试气资料与地质、工程评价参数的关系，并采用欧式距离方法聚类分析了各评价参数的重要程度，优选出评价优质储层的地质和工程参数；然后，选择岩心化验分析资料和测井资料，采用“岩心刻度测井技术”建立了地质与工程“双优”储层的测井评价模型；最后，利用产气剖面测试资料，运用灰度关联理论确定“双优”储层评价参数的权重，计算页岩气储层地质和工程指数，进而建立“双优”储层综合评价图版，形成了页岩气地质与工程“双优”储层测井综合评价方法。利用该方法计算了涪陵页岩气田平桥区块28口井储层的综合评价指数，结果表明，页岩气储层单段和单井产量与综合评价指数、双优储层穿行长度具有明显的正相关关系。这表明，可以用构建的页岩气地质与工程“双优”储层综合测井评价方法评价页岩气储层，为页岩气水平井设计和分段压裂提供依据。
Abstract:In order to evaluate the “2X excellence” reservoirs in geology and engineering in Fuling Shale Gas Field with high quality and accuracy, the relationship between well testing data and geological/engineering evaluation parameters in the gas field was qualitatively analyzed, and then the geological/engineering parameters were selected through the European distance-squared systematic clustering method. On the basis of core test analysis data and logging data of the gas field, the logging evaluation model of geological and engineering “2X excellence” reservoir was established by using core calibration logging technology. Finally, the shale gas reservoir geological index and engineering index were calculated to establish the comprehensive evaluation chart of “2X excellence” reservoir by combining the gas producing profile logging data and using the gray correlation theory in the gas field, so as to determine the weight of the “2X excellence” reservoir parameters for production evaluation, forming the comprehensive evaluation method of such reservoir in shale gas geology and engineering. The comprehensive evaluation index of 28 wells in the Pingqiao Block of the Fuling Shale Gas Field has been evaluated by this method, and showed that the production of a single section and a single well of shale gas possessing a significant positive correlation with the comprehensive evaluation index and the crossing length in “2X Excellence” reservoir, which indicates that the shale gas reservoir could be evaluated by the proposed comprehensive logging evaluation method of shale gas geological and engineering the “2X Excellence” reservoir, and provide basis for shale gas horizontal well design and staged fracturing.
-
-
![]()

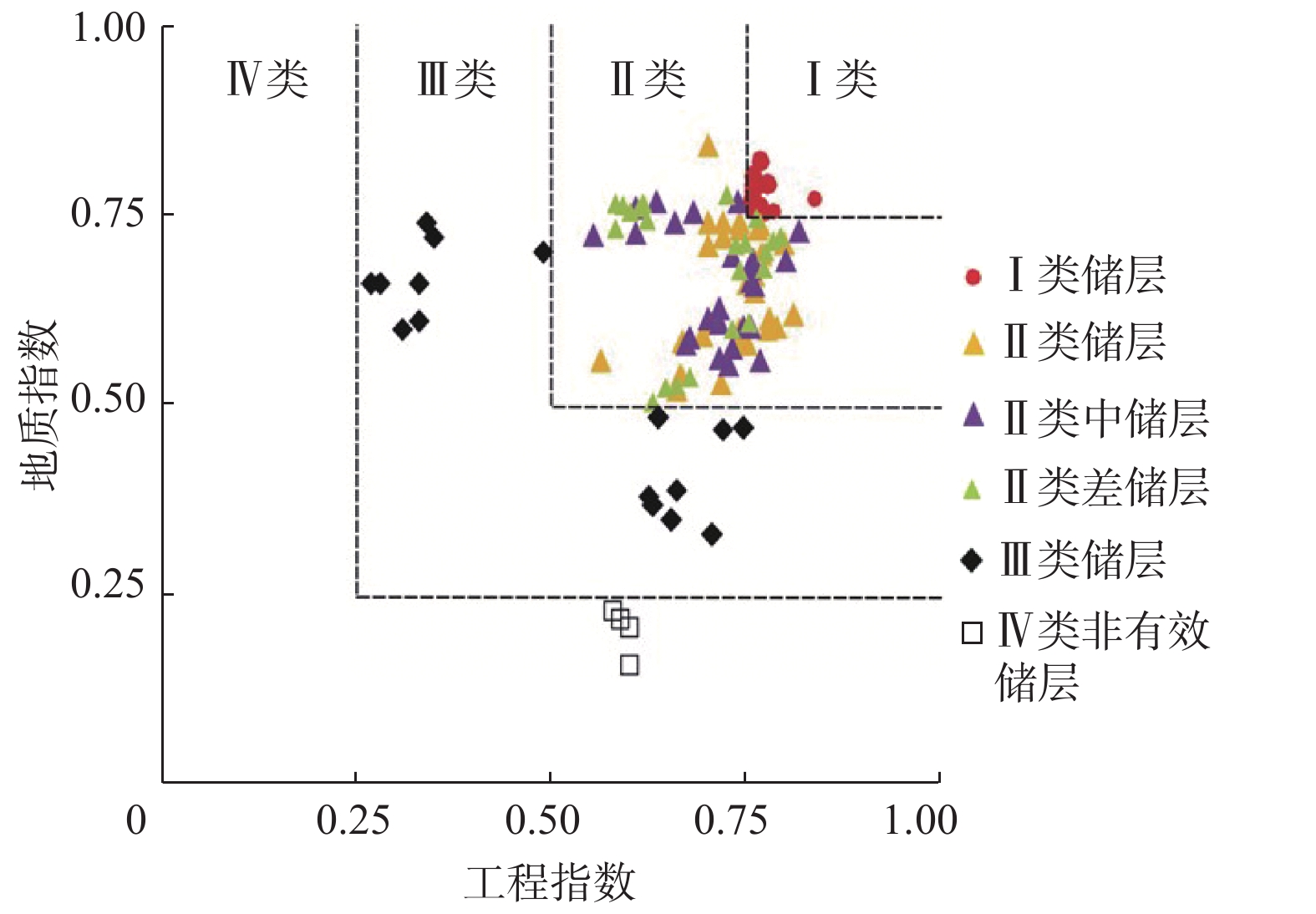

图 5 页岩气储层地质–工程指数评价图版
Figure 5. Geological-engineering index evaluation chart of shale gas reservoir
![]()

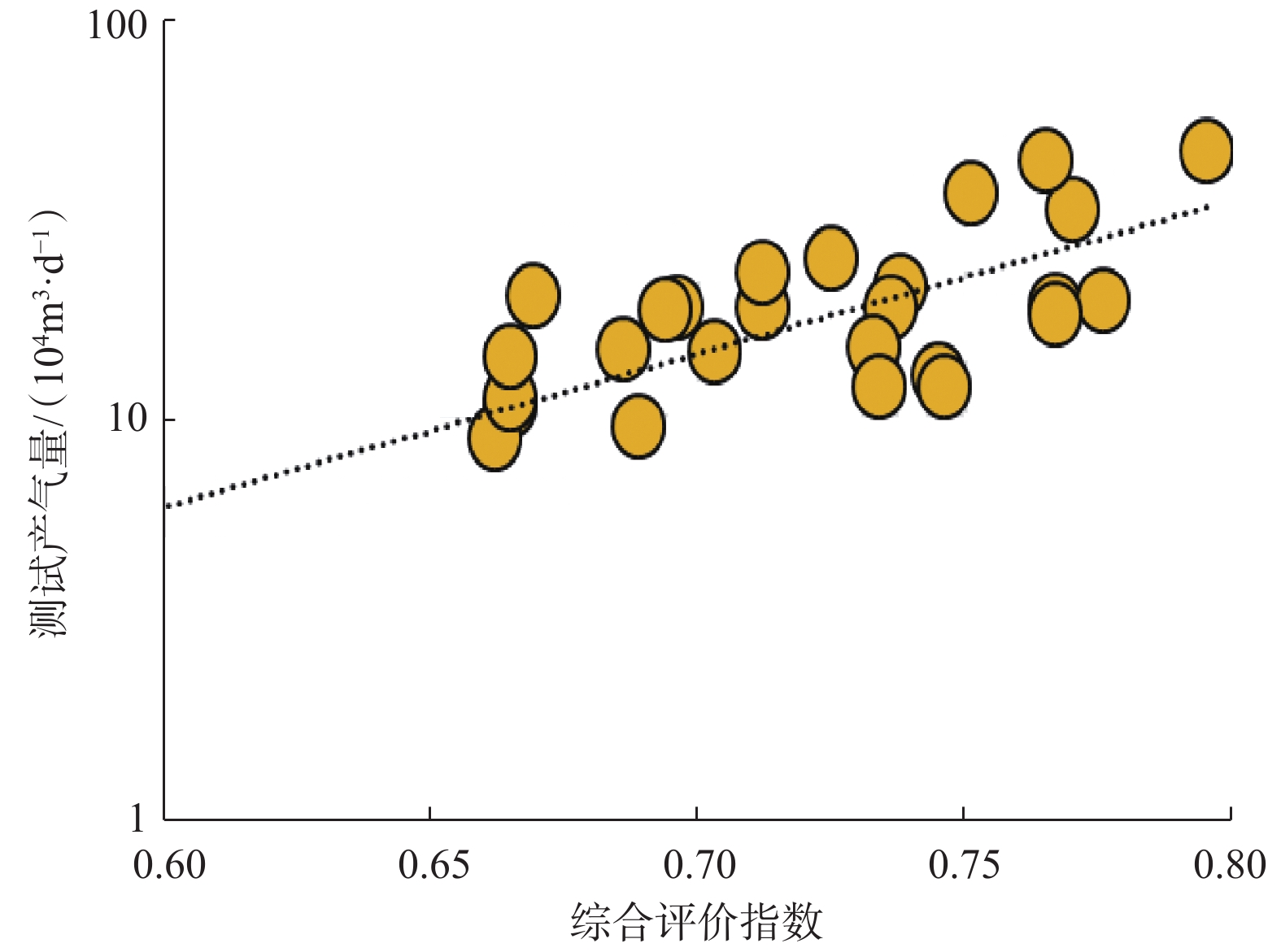

图 7 单井测试产气量与综合评价指数的关系
Figure 7. Relationship between single well test gas production and comprehensive evaluation index
![]()

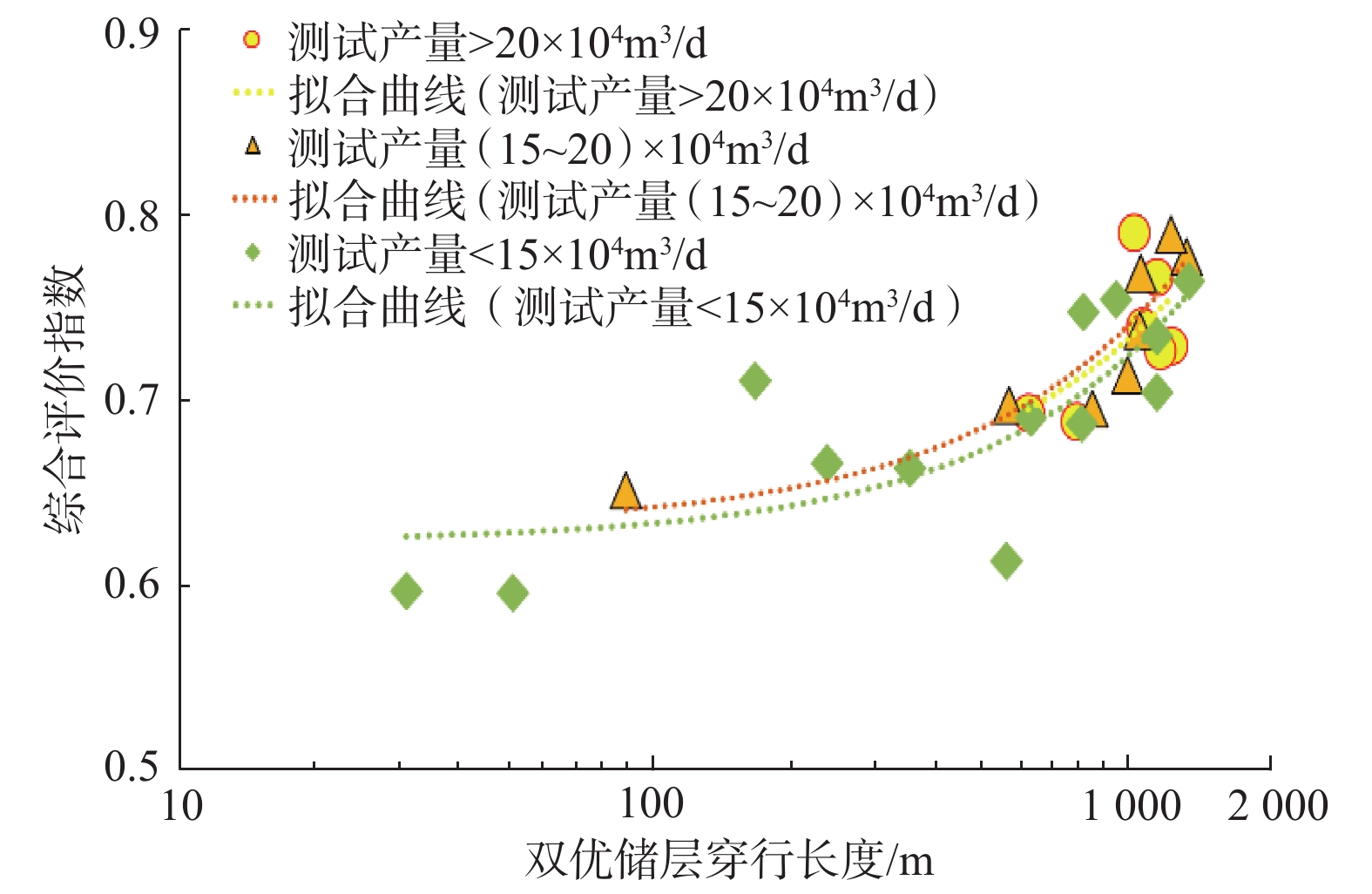

图 8 测试产气量与综合评价指数、双优储层穿行长度的关系
Figure 8. Relationship among test gas production and comprehensive evaluation index, crossing length in “2X Excellence” reservoir
表 1 地质参数相关性矩阵
Table 1 Correlation matrix of geological parameters
参数 产量 岩性 岩相 泥质
含量生物成因
硅质含量含气量 含水饱
和度电阻率 总有机碳
含量地化总烃
含量镜质体
反射率补偿
密度声波

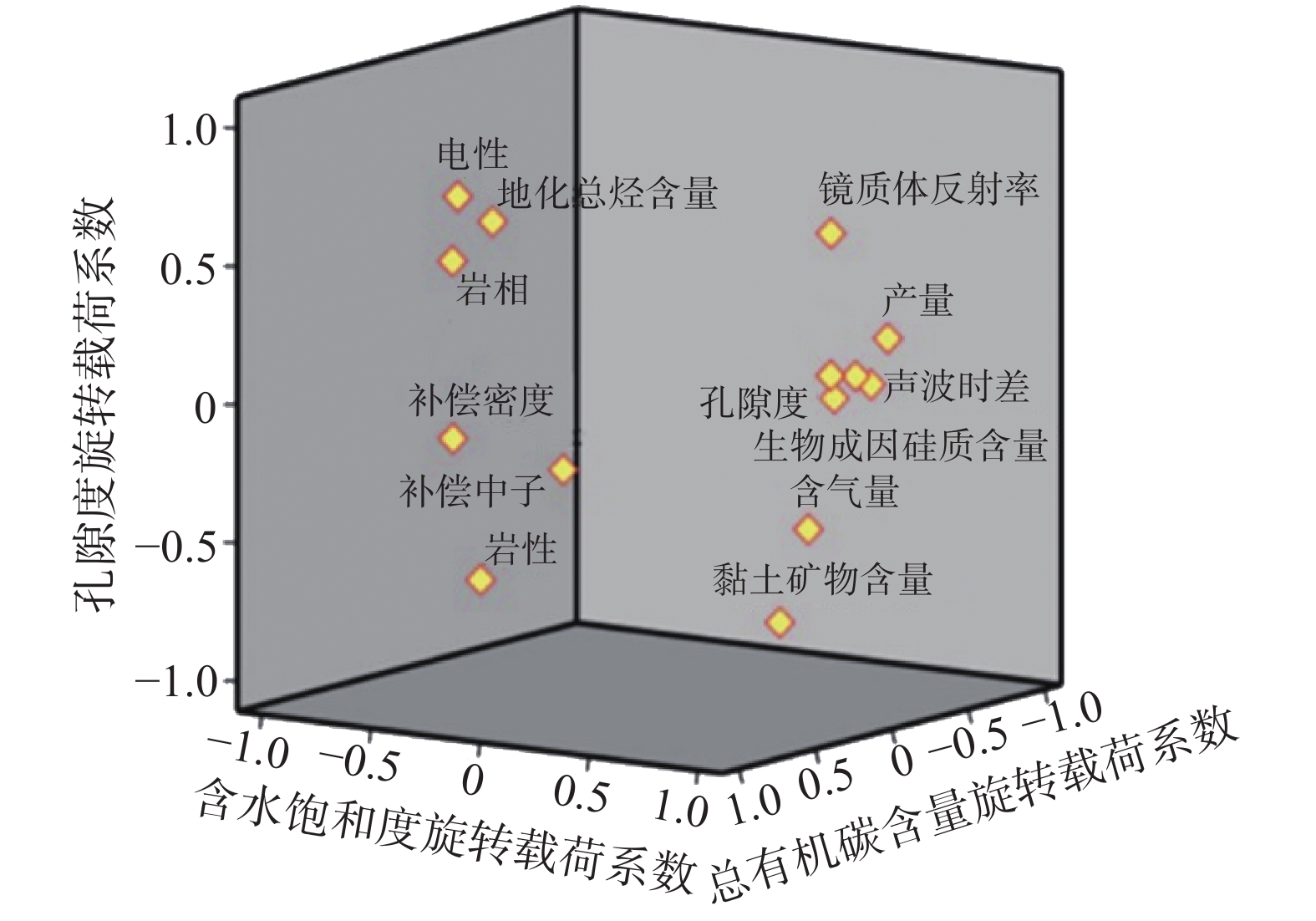

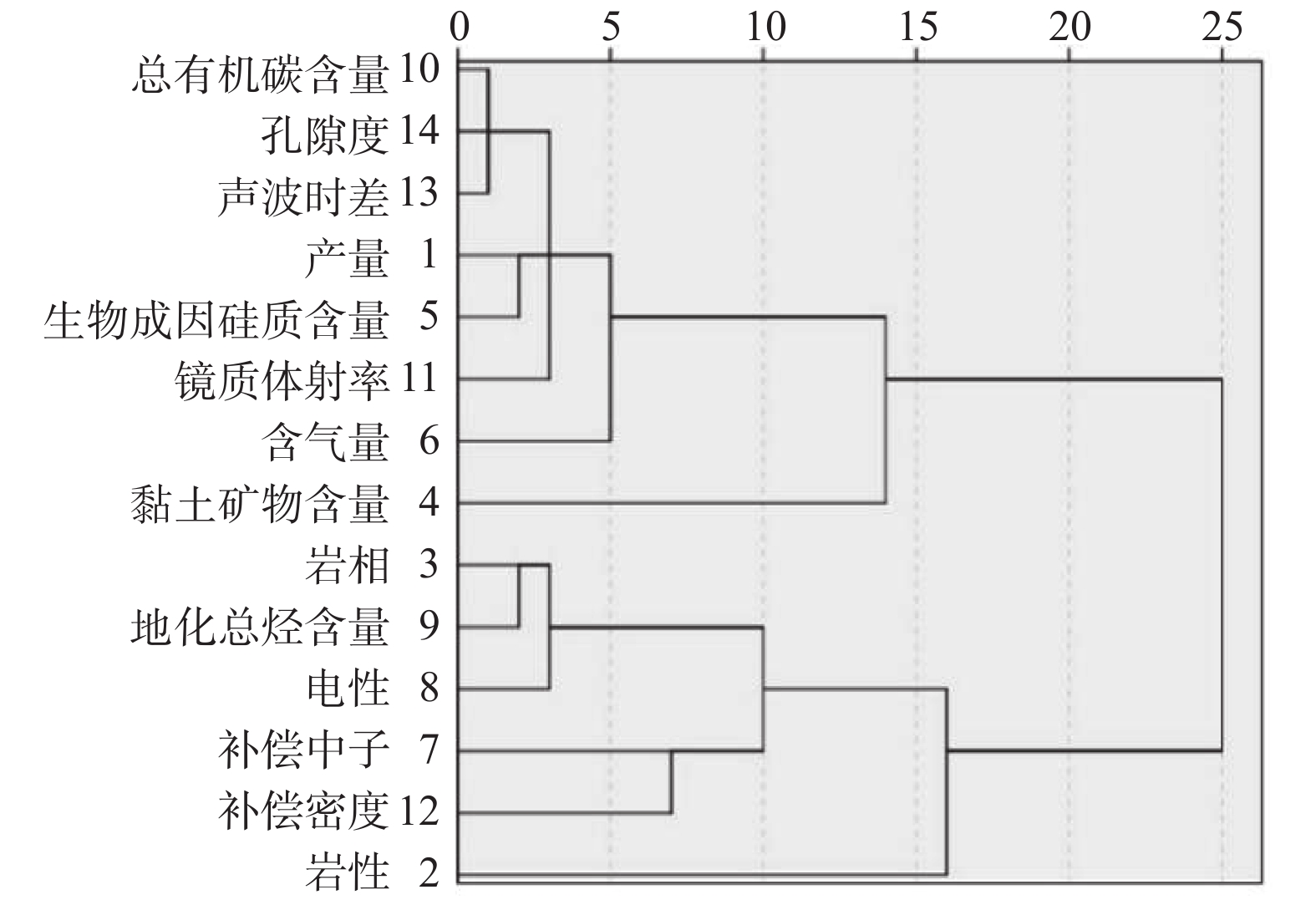

时差孔隙度 产量 1.000 岩性 –0.599 1.000 岩相 –0.594 0.615 1.000 泥质含量 0.231 0.138 –0.616 1.000 生物成因
硅质含量0.893 –0.196 –0.666 0.216 1.000 含气量 0.583 0.194 –0.943 0.519 0.783 1.000 含水饱和度 –0.557 0.049 0.489 0.326 –0.627 –0.627 1.000 电阻率 –0.524 –0.170 0.858 –0.920 –0.782 –0.782 0.055 1.000 总有机碳含量 0.845 –0.287 –0.818 0.158 0.835 0.835 –0.835 –0.532 1.000 地化总烃含量 –0.602 –0.222 0.868 –0.659 –0.953 –0.953 0.463 0.856 –0.728 1.000 镜质体反射率 0.871 –0.641 –0.391 –0.247 0.405 0.405 –0.777 –0.111 0.833 –0.311 1.000 补偿密度 –0.593 0.456 0.750 –0.101 –0.592 –0.592 0.600 0.411 –0.811 0.382 –0.666 1.000 声波时差 0.821 –0.344 –0.868 0.233 0.825 0.825 –0.754 –0.590 0.983 –0.700 0.789 –0.892 1.000 孔隙度 0.777 –0.192 –0.796 0.081 0.842 0.842 –0.894 –0.464 0.990 –0.714 0.810 –0.791 0.961 1.000
下载: 导出CSV
表 2 工程参数相关性矩阵
Table 2 Correlation matrix of engineering parameters

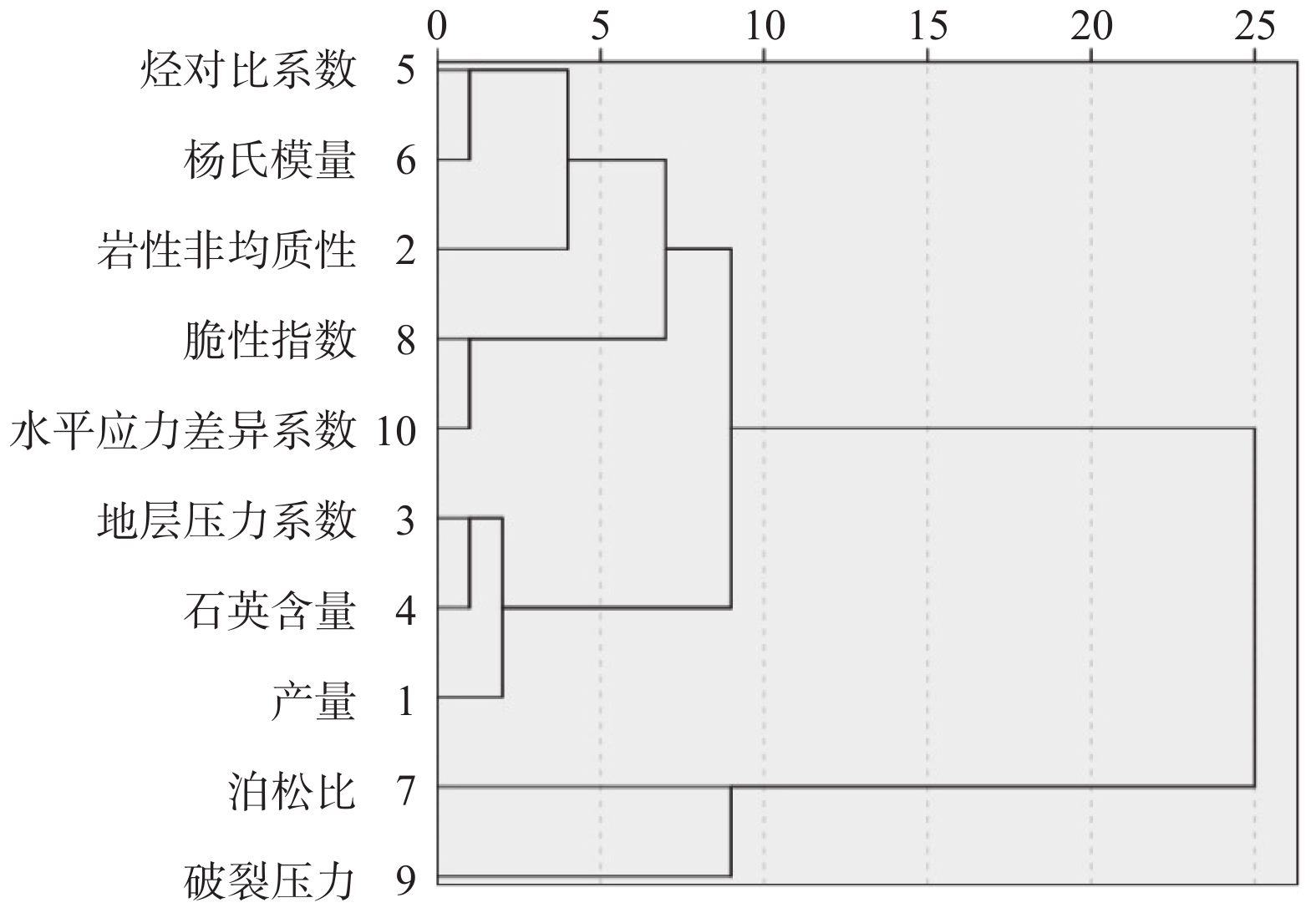

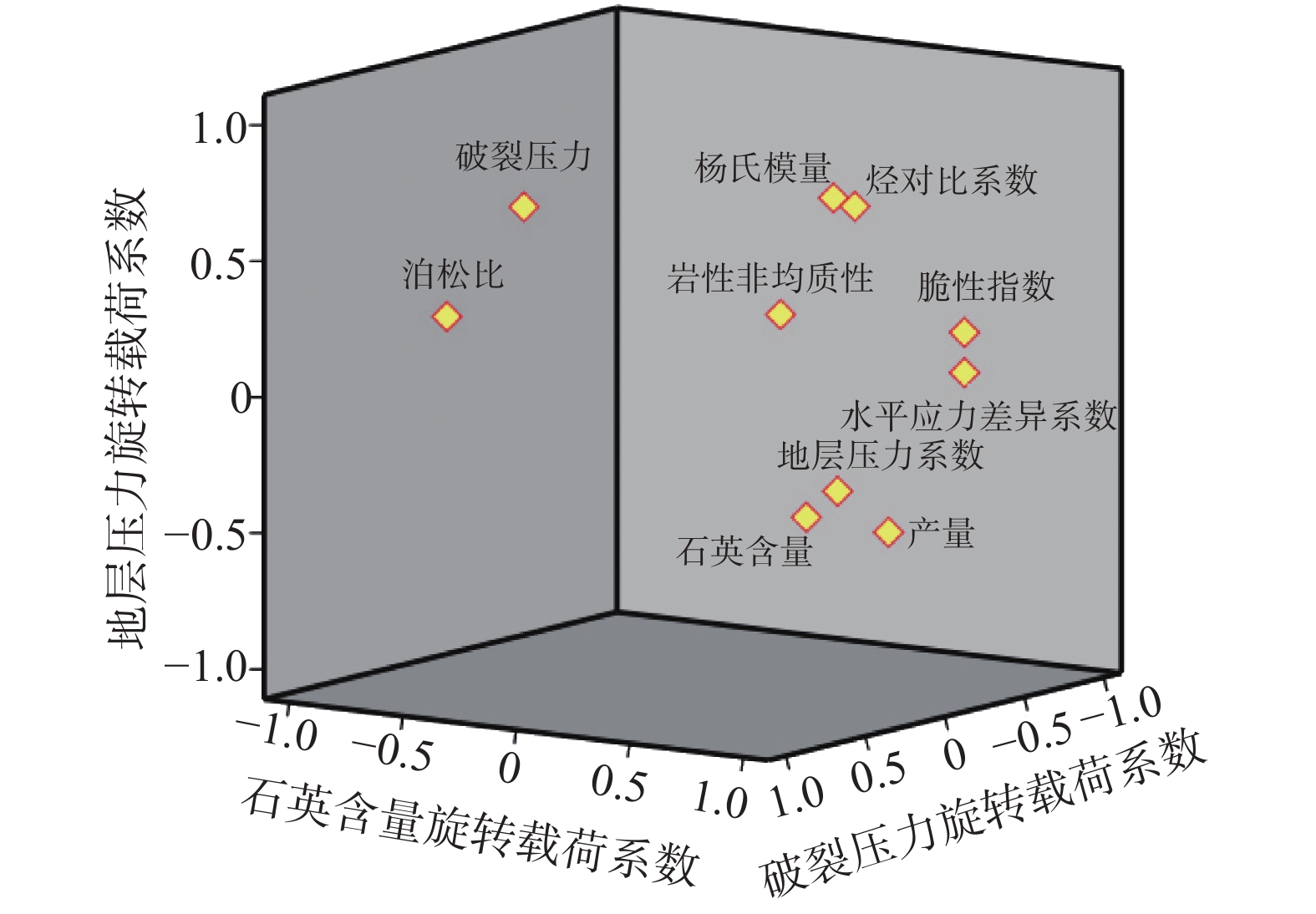

参数 产量 非均质性 地层压力 石英含量 烃对比系数 杨氏模量 脆性指数 泊松比 破裂压力 水平应力差异系数 产量 1.000 非均质性 0.510 1.000 地层压力 0.928 0.762 1.000 石英含量 0.905 0.716 0.989 1.000 烃对比系数 0.296 0.799 0.431 0.312 1.000 杨氏模量 0.244 0.821 0.410 0.298 0.996 1.000 脆性指数 0.619 0.410 0.483 0.356 0.722 0.655 1.000 泊松比 –0.578 0.138 –0.262 –0.179 –0.169 –0.076 –0.802 1.000 破裂压力 –0.990 0.458 –0.921 –0.920 –0.174 –0.127 –0.504 0.514 1.000 水平应力差异系数 0.758 0.494 0.641 0.529 0.694 0.628 0.981 –0.786 –0.659 1.000
下载: 导出CSV
表 3 地质参数评价赋分标准
Table 3 Scoring criteria for geological parameters evaluation
生物成因硅质含量，% 总有机碳含量，% 含气量/（m3·t–1） 有效孔隙度，% 泥质含量，% 补偿密度/（g·cm–3） 赋分 [30, 100） [4, 100） [4, ∞） [5.0, 100.0） （0, 40］ （0, 2.50］ （1.00, 0.75］ （30, 15］ （4, 2］ （4, 2］ （5.0, 3.5］ （40, 45］ （2.50, 2.60］ （0.75, 0.50］ （15, 5］ （2, 1］ （2, 1］ （3.5, 2.5］ （45, 50］ （2.60, 2.68］ （0.50, 0.25］ （0, 5） （0, 1） （0, 1） （0, 2.5） （50, 100） （2.68, ∞） [0, 0.25）
下载: 导出CSV
表 4 工程参数评价赋分标准
Table 4 Scoring criteria for engineering parameters evaluation
岩性非均质性系数 烃对比系数 地层压力系数 脆性指数，% 地应力差异系数 石英含量，% 赋分 （0, 8］ [10,∞） [1.5, ∞） [60, 100） （0～0.3］ [40, 100） （1.00, 0.75］ （8, 15］ （10, 5］ （1.5, 1.2］ （60, 40］ （0.3, 0.4］ （40, 20］ （0.75, 0.50］ （15, 30］ （5, 3］ （1.2, 1.0］ （40, 30］ （0.4, 0.5］ （20, 10］ （0.50, 0.25］ （30, ∞） （0, 3） （0, 1） （0, 30） （0.5, ∞） （0, 10） [0.25, 0）
下载: 导出CSV
-
