Research on the Prediction of Annular Trapping Pressure in Deepwater Wells Considering Solid Sedimentation
-
摘要:

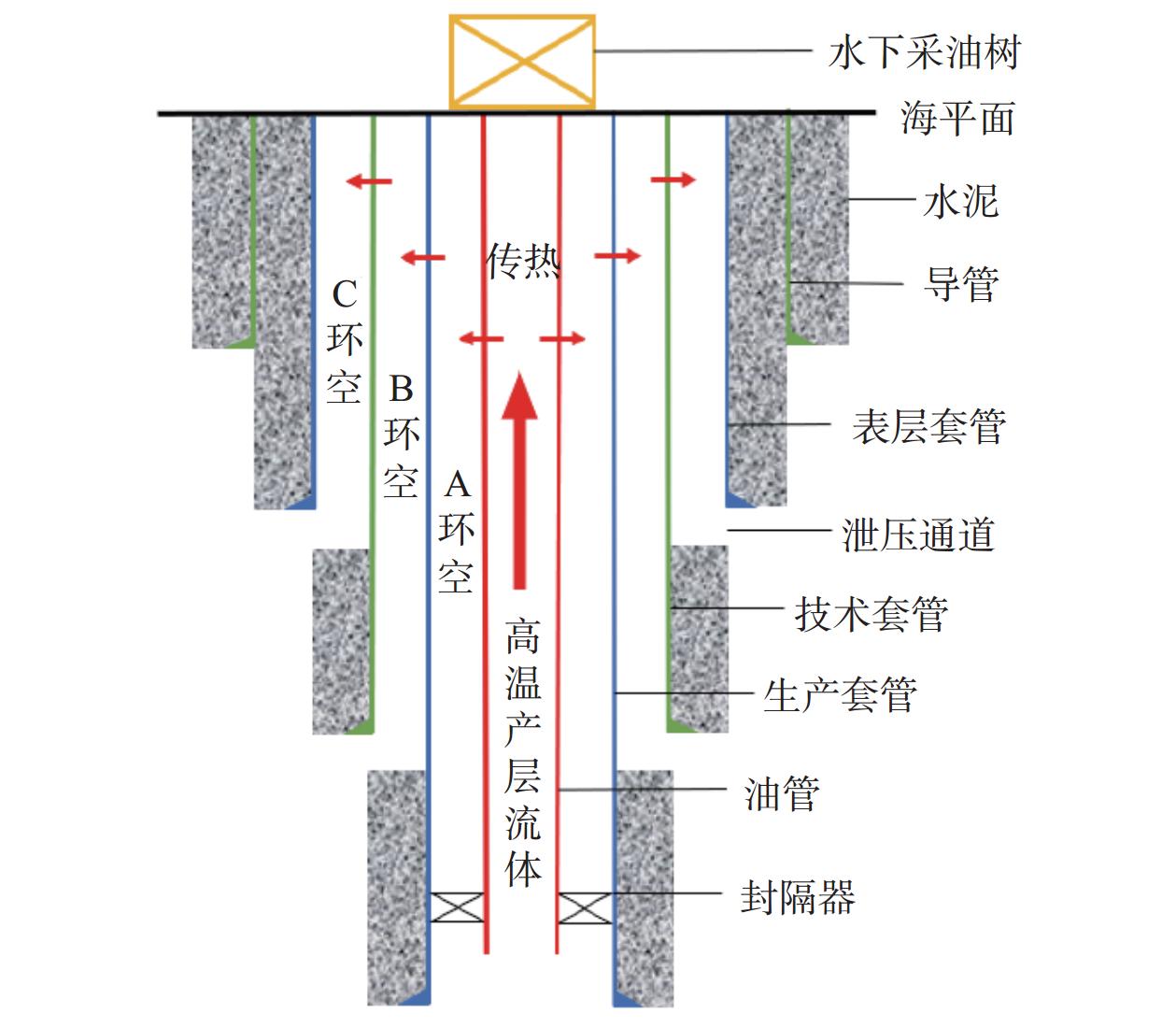

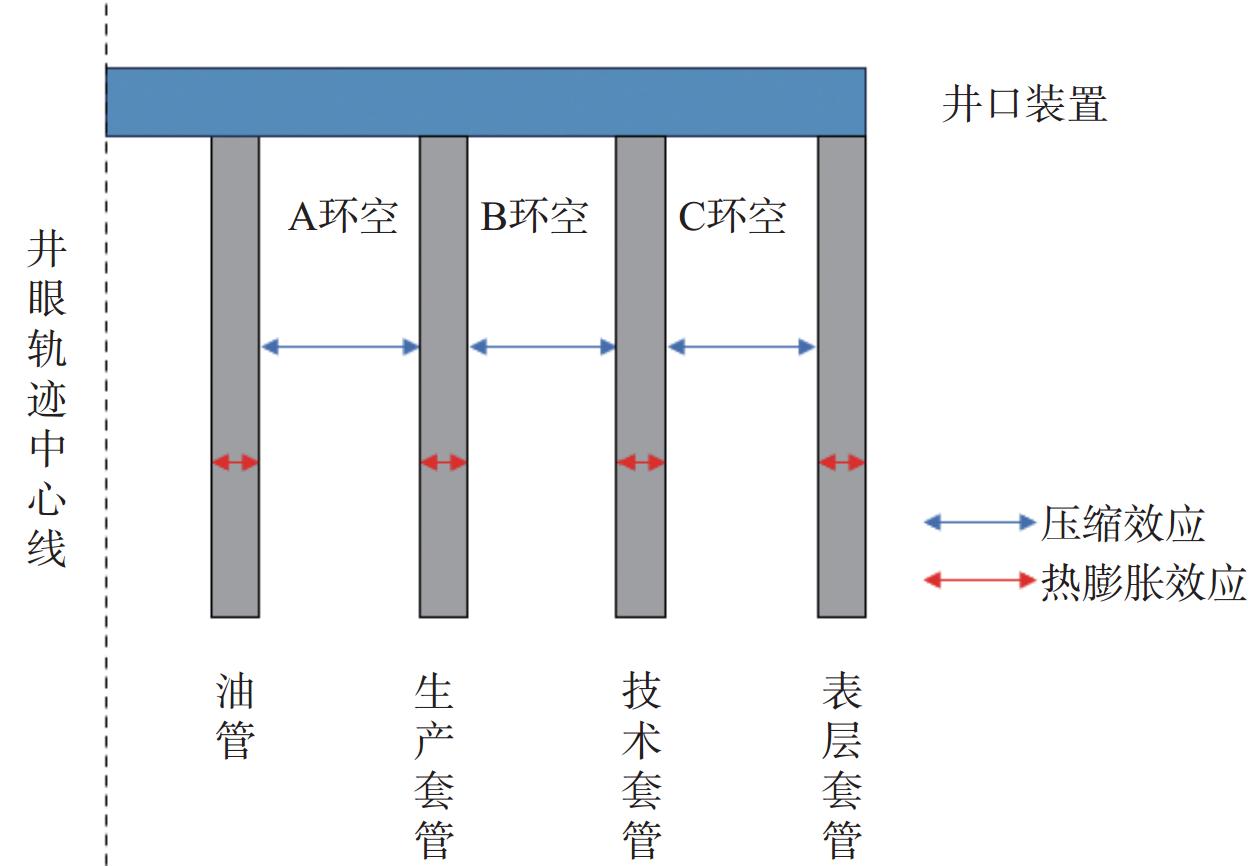

深水油气井开采期间，由于水下井口装置的特殊性，井筒内高温流体热膨胀会引起环空圈闭压力升高，导致套管挤毁，严重威胁油气井的井筒完整性。基于定容热力学定律和环空流体质量守恒定律，考虑环空内钻井液固相沉降对环空体积的影响，建立了深水井多环空耦合圈闭压力计算模型；测试了常用钻井液体系的固相沉降规律和流体热物性参数，分析了沉降时间对钻井液密度、等温压缩系数及等压膨胀系数的影响规律；以南海某采气井为例，采用离散网格法，对井筒环空圈闭压力进行迭代求解，分析了不同因素对环空圈闭压力的影响。分析结果表明：固相沉降对钻井液密度的影响较大，随着沉降时间增长，钻井液密度呈明显降低趋势，10 d后钻井液固相沉降趋于稳定；随着沉降时间增长，A环空圈闭压力的变化幅度较小，B、C环空圈闭压力的升高幅度较大；环空圈闭压力与采气量、地温梯度、泊松比及等压膨胀系数呈正相关，与等温压缩系数呈负相关。研究表明，考虑固相沉降的影响可提高环空圈闭压力预测的准确度，为深水油气井管柱选型及制定生产制度提供理论依据。
Abstract:During the exploitation of deepwater oil and gas wells, because of the particularity of the subsea wellhead, the thermal expansion of high temperature fluid in the wellbore causes the increase in annular trapping pressure, which leads to casing collapse and seriously threatens the wellbore integrity of oil and gas wells. Based on the law of constant volume thermodynamics and the mass balance principle in annular fluid, the influence of solid sedimentation of drilling fluid on the annular volume was considered, and a calculation model of multi-annular coupling trapping pressure in deepwater wells was proposed. The sedimentation laws and fluid thermophysical parameters of the commonly used drilling fluid systems were tested, and the influence of sedimentation time on the density, isothermal compression coefficient, and isobaric expansion coefficient of drilling fluid was obtained. By taking a gas production well in the South China Sea as an example, the annular trapping pressure of the wellbore was iteratively solved through the discrete grid method, and the factors affecting the annular trapping pressure were analyzed. The results show that solid sedimentation has a significant impact on the density of drilling fluid. With the increase in sedimentation time, the density of drilling fluid shows a significant downward trend. After 10 days of testing, the solid sedimentation of drilling fluid tends to stabilize. With the increase in sedimentation time, the variation range of the trapping pressure in annular space A is relatively small, while the increase range of the trapping pressure in annular space B and C is relatively large. The annular trapping pressure is positively correlated with the gas production volume, ground temperature gradient, Poisson’s ratio, and isobaric expansion coefficient and negatively correlated with the isothermal compression coefficient. The research results show that considering the influence of solid sedimentation can improve the accuracy of annular trapping pressure prediction, providing a theoretical basis for the selection of pipe strings and the design of production parameters in deepwater wells.
-
-
![]()

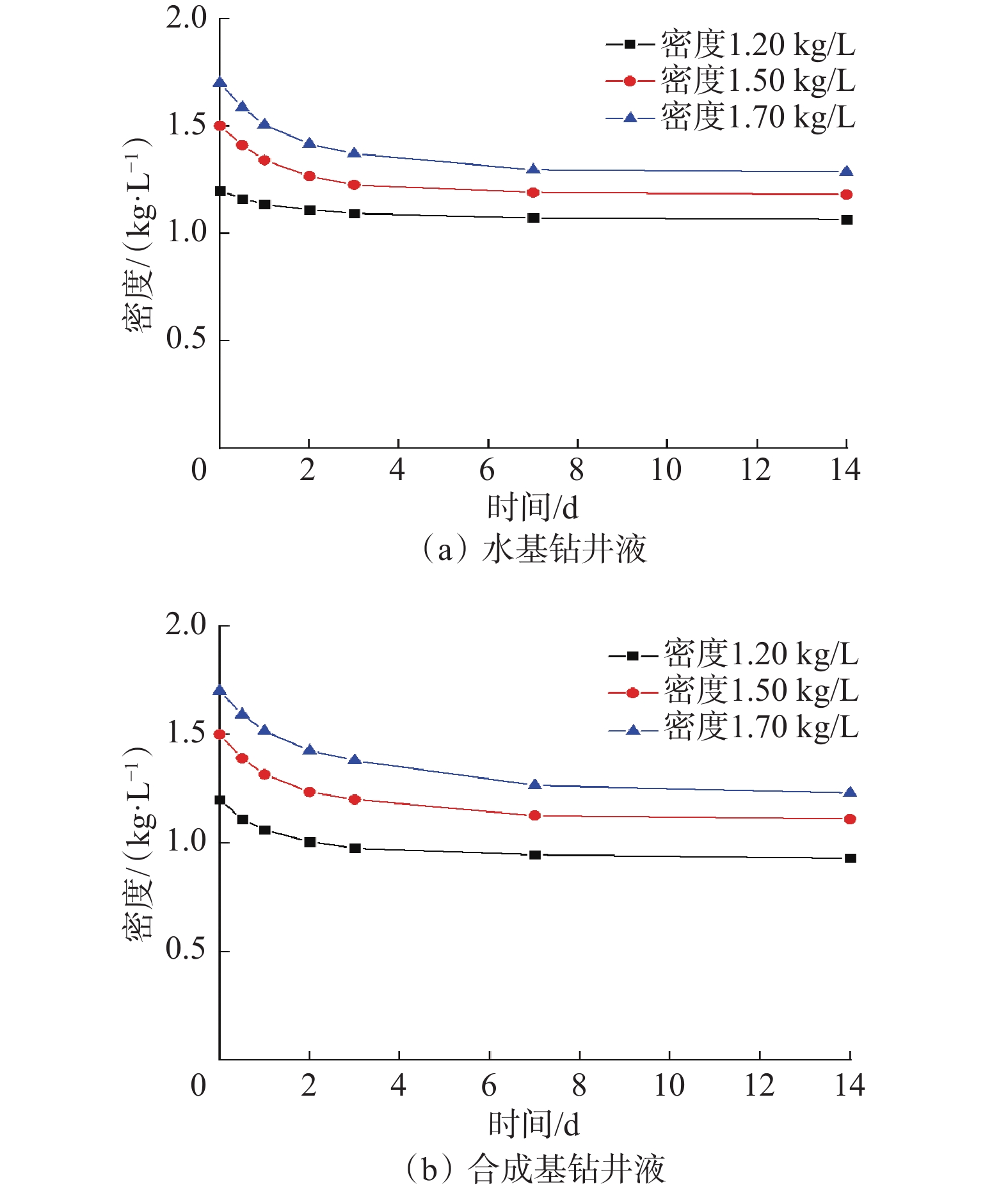

图 3 考虑固相沉降的钻井液密度变化规律
Figure 3. Variation of density of drilling fluid considering solid sedimentation
![]()

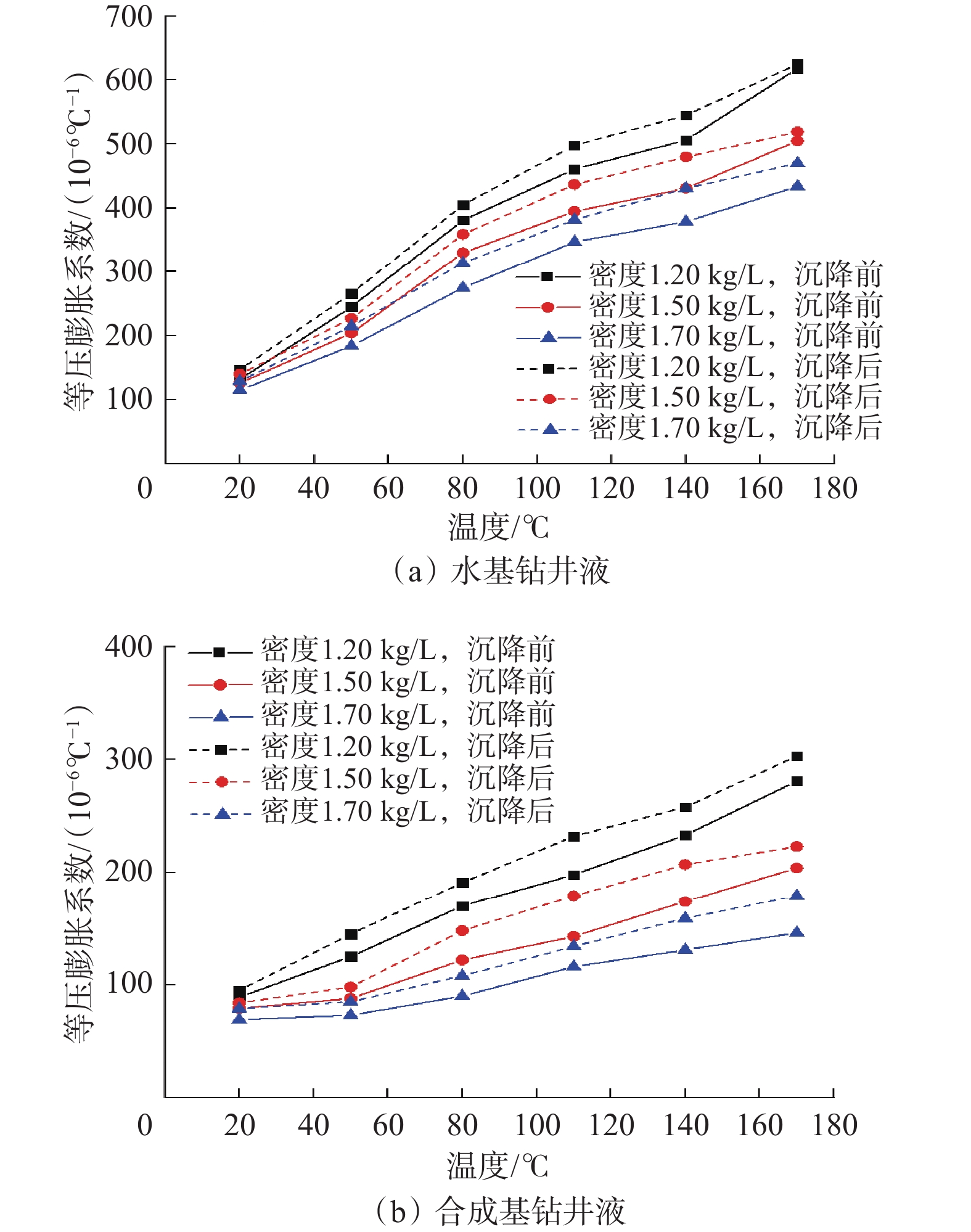

图 4 考虑固相沉降的钻井液等压膨胀系数的变化规律
Figure 4. Variation of isobaric expansion coefficient of drilling fluid considering solid sedimentation
![]()
图 5 考虑固相沉降的钻井液等温压缩系数变化规律
Figure 5. Variation of isothermal compression coefficient of drilling fluid considering solid sedimentation
![]()

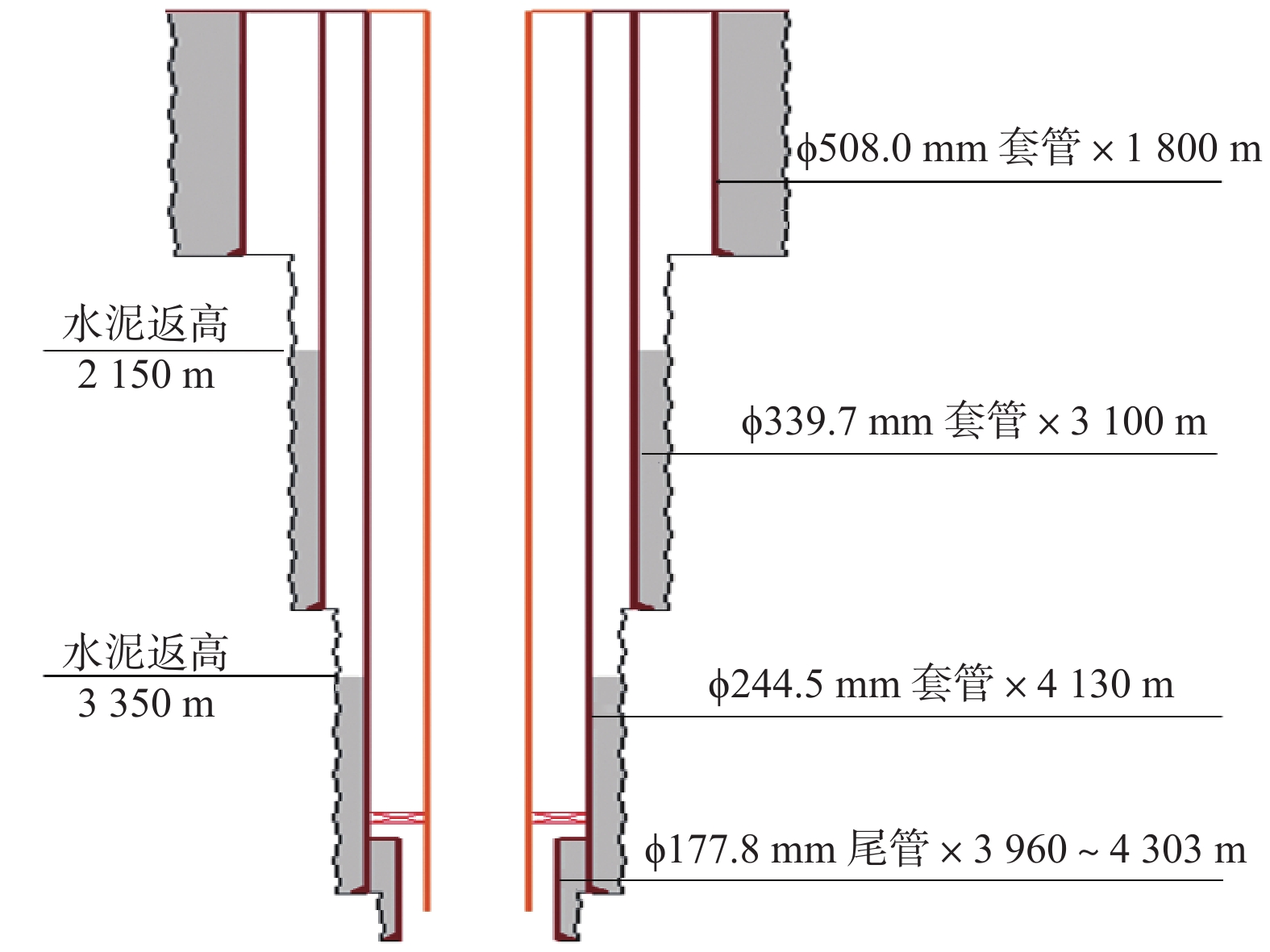

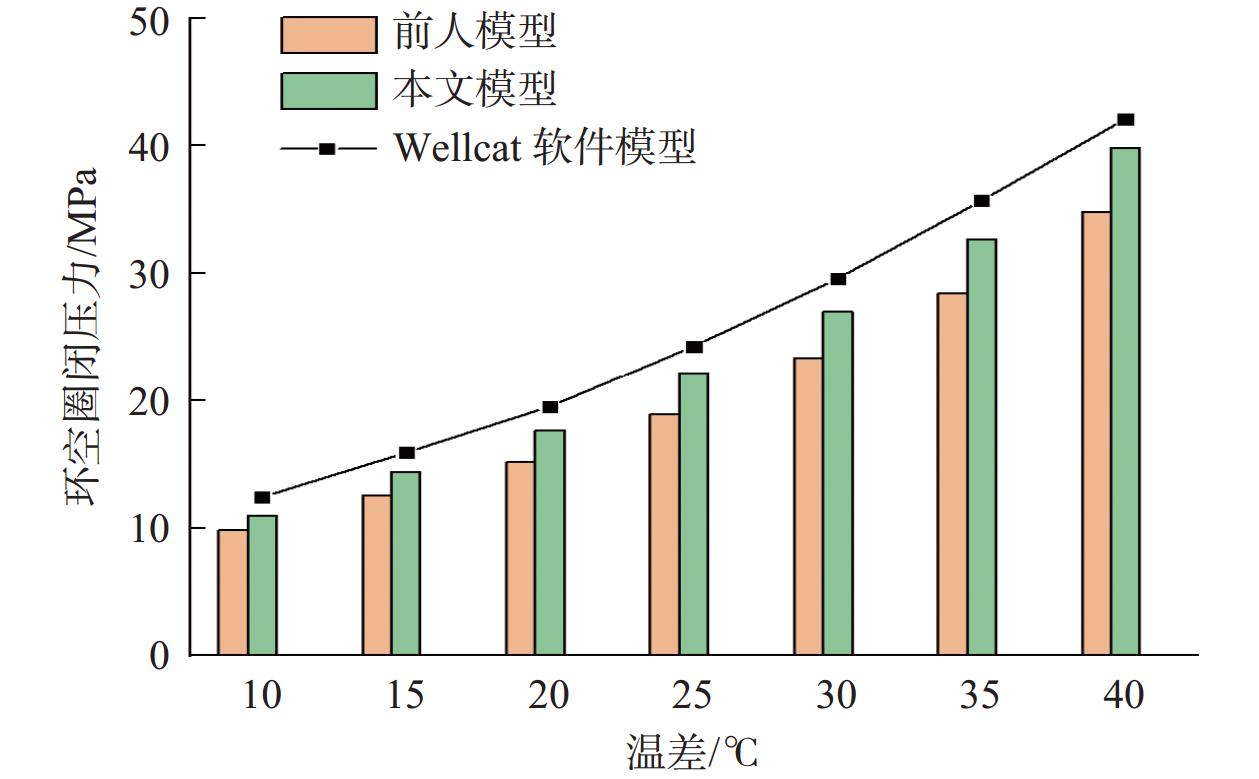

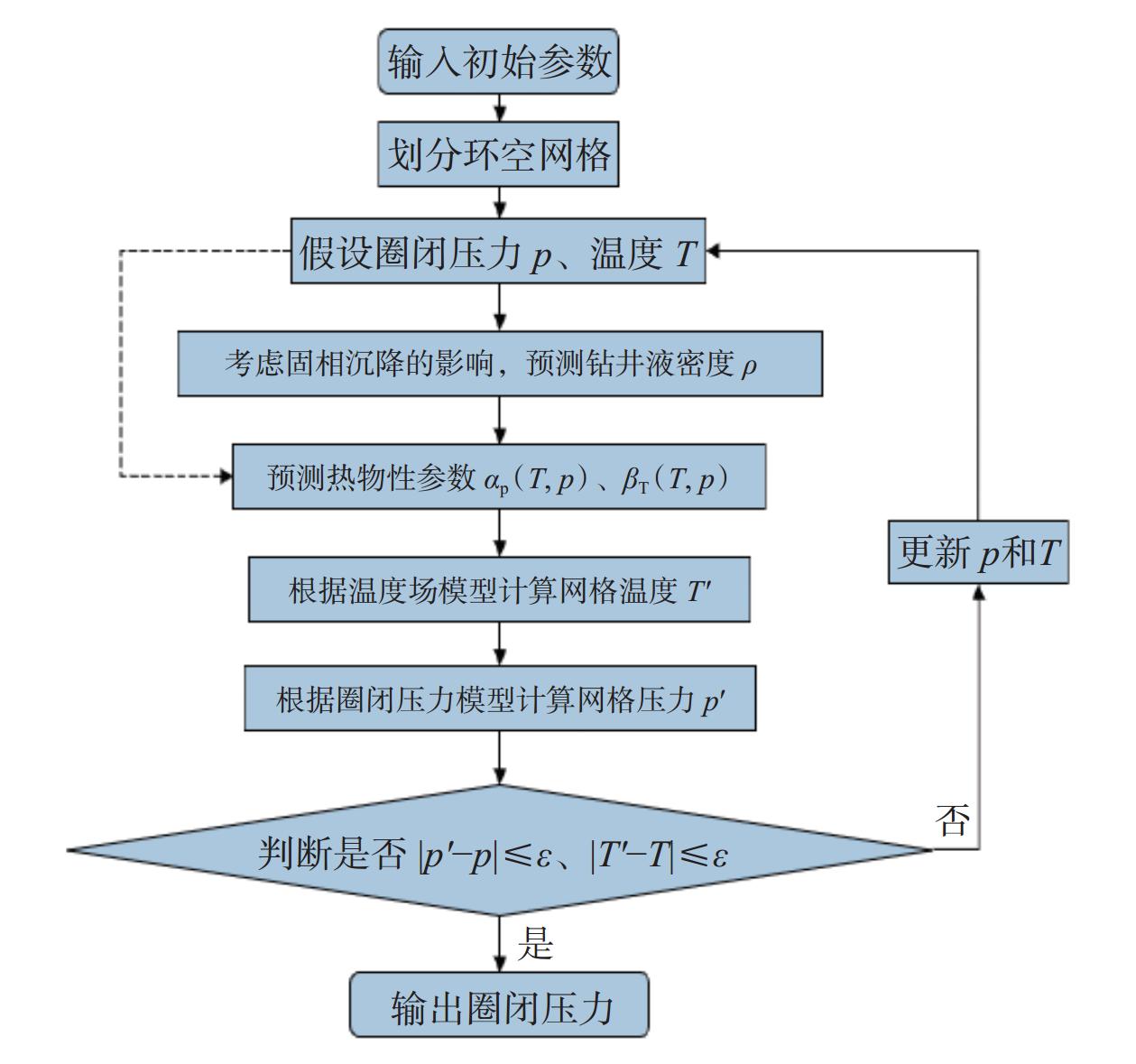

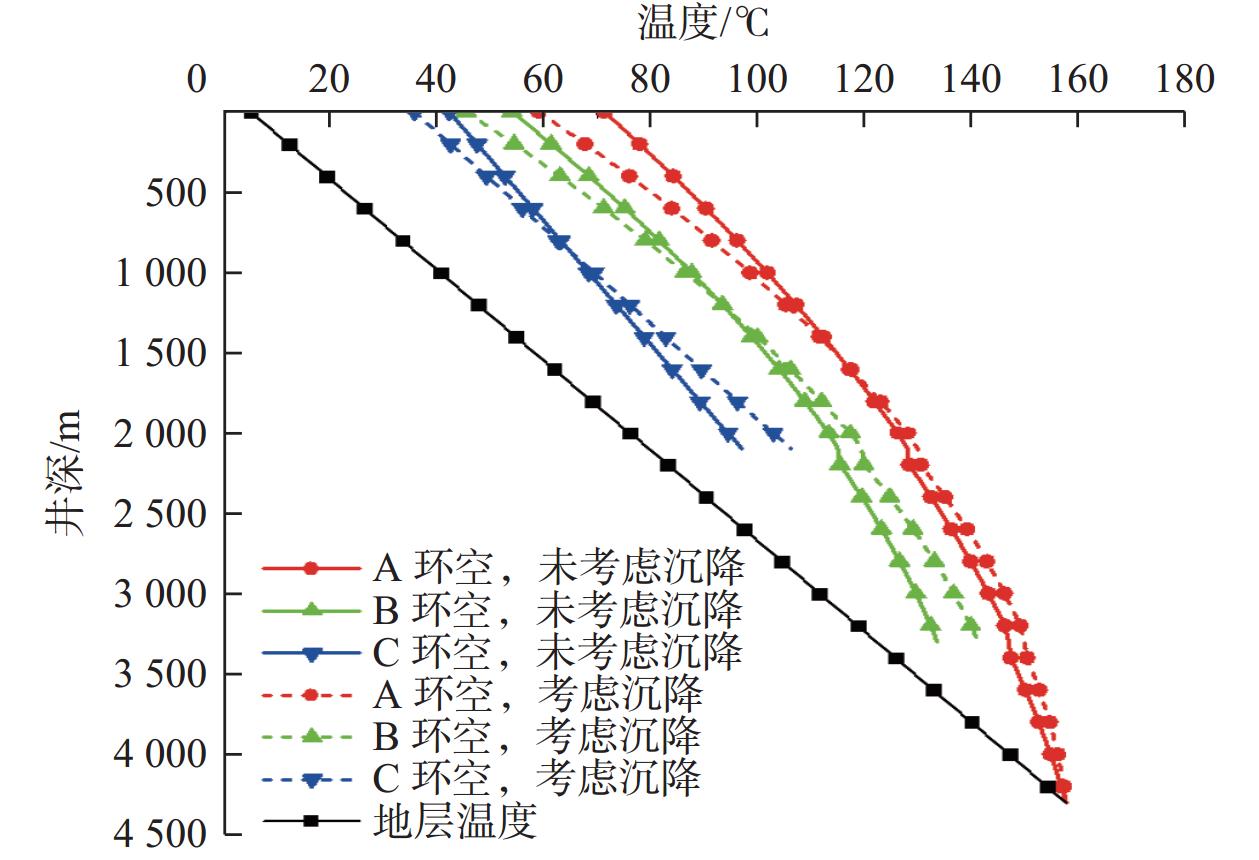

图 9 考虑固相沉降井筒环空温度的分布
Figure 9. Annular temperature distribution of wellbore considering solid sedimentation
![]()

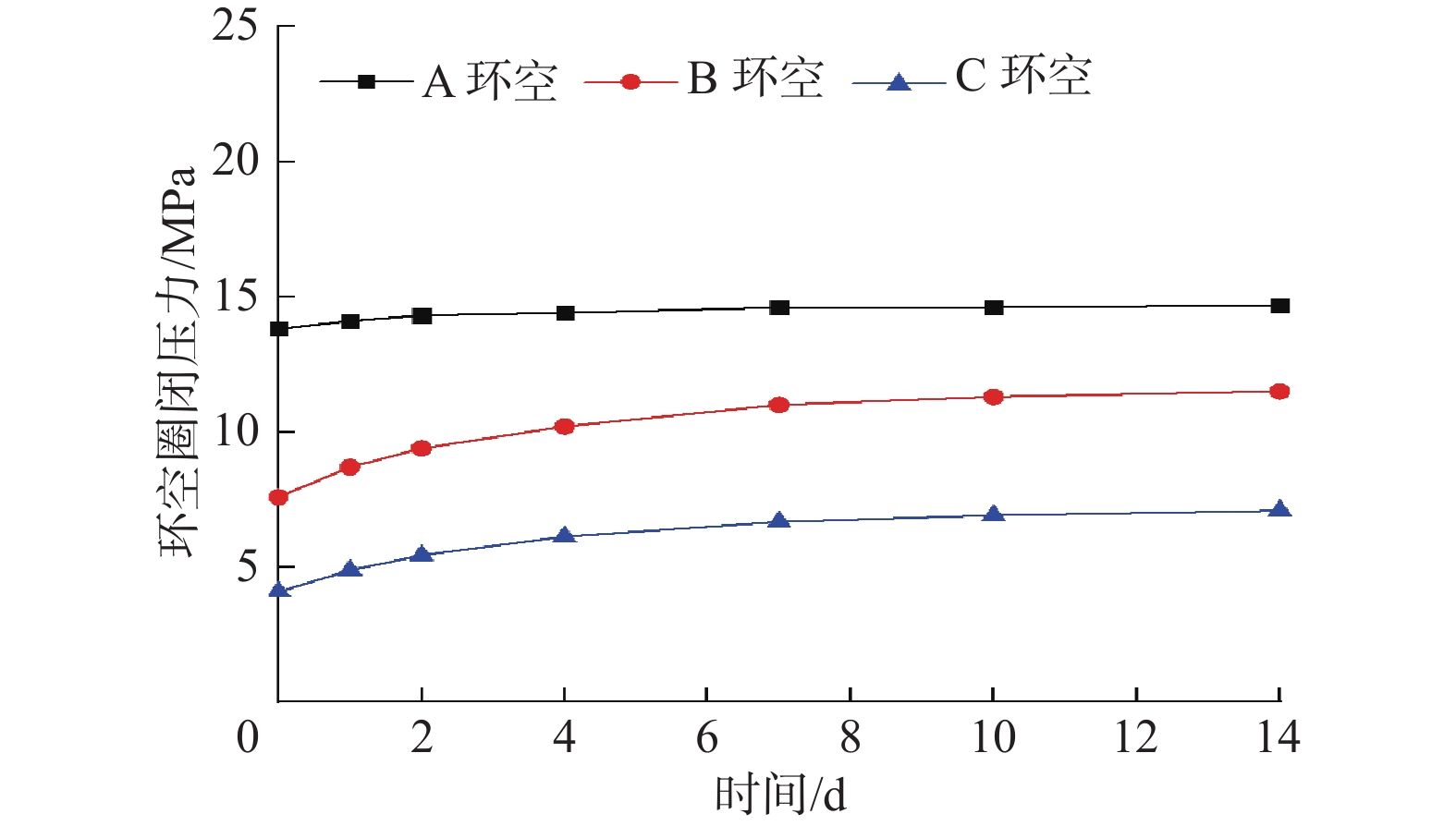

图 10 环空圈闭压力随沉降时间的变化规律
Figure 10. Variation of annular trapping pressure with sedimentation time
![]()

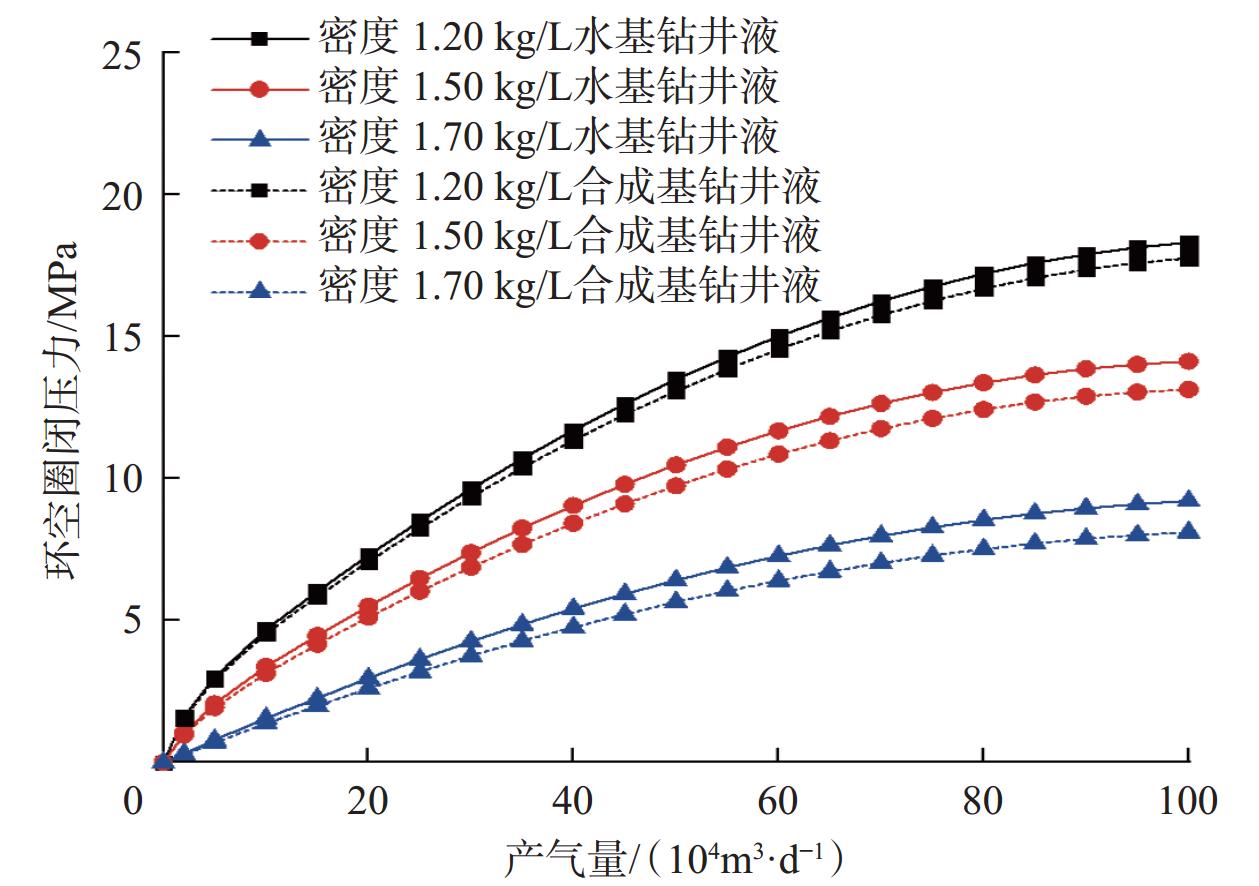

图 11 不同密度水基和合成基钻井液的B环空圈闭压力随产气量的变化规律
Figure 11. Variation of trapping pressure in annulus B of annular water-based and synthetic base drilling fluid with different densities with gas production volume
![]()

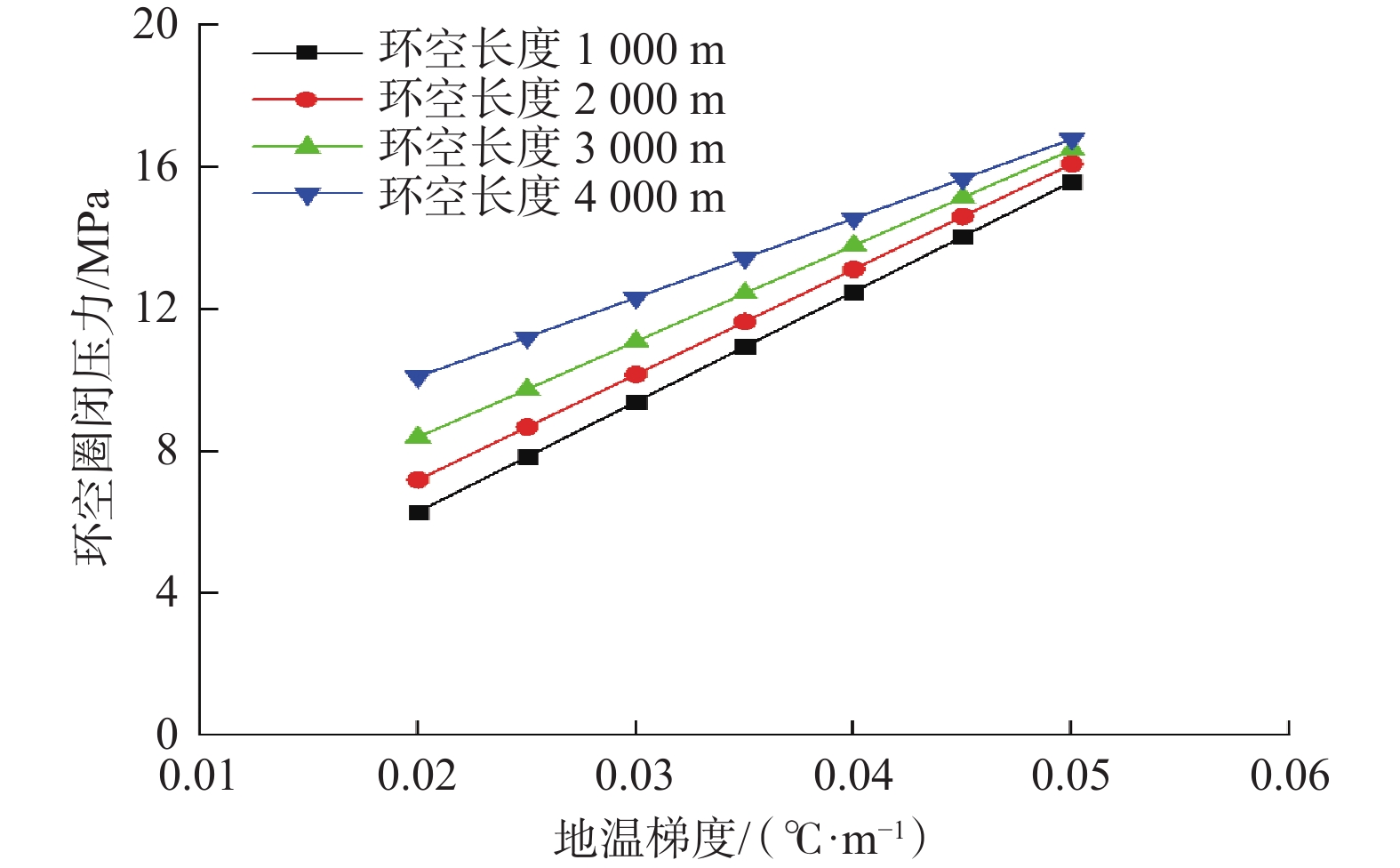

图 12 B环空圈闭压力随地温梯度和环空长度的变化规律
Figure 12. Variation of trapping pressure in annulus B with ground temperature gradient and annular length
![]()

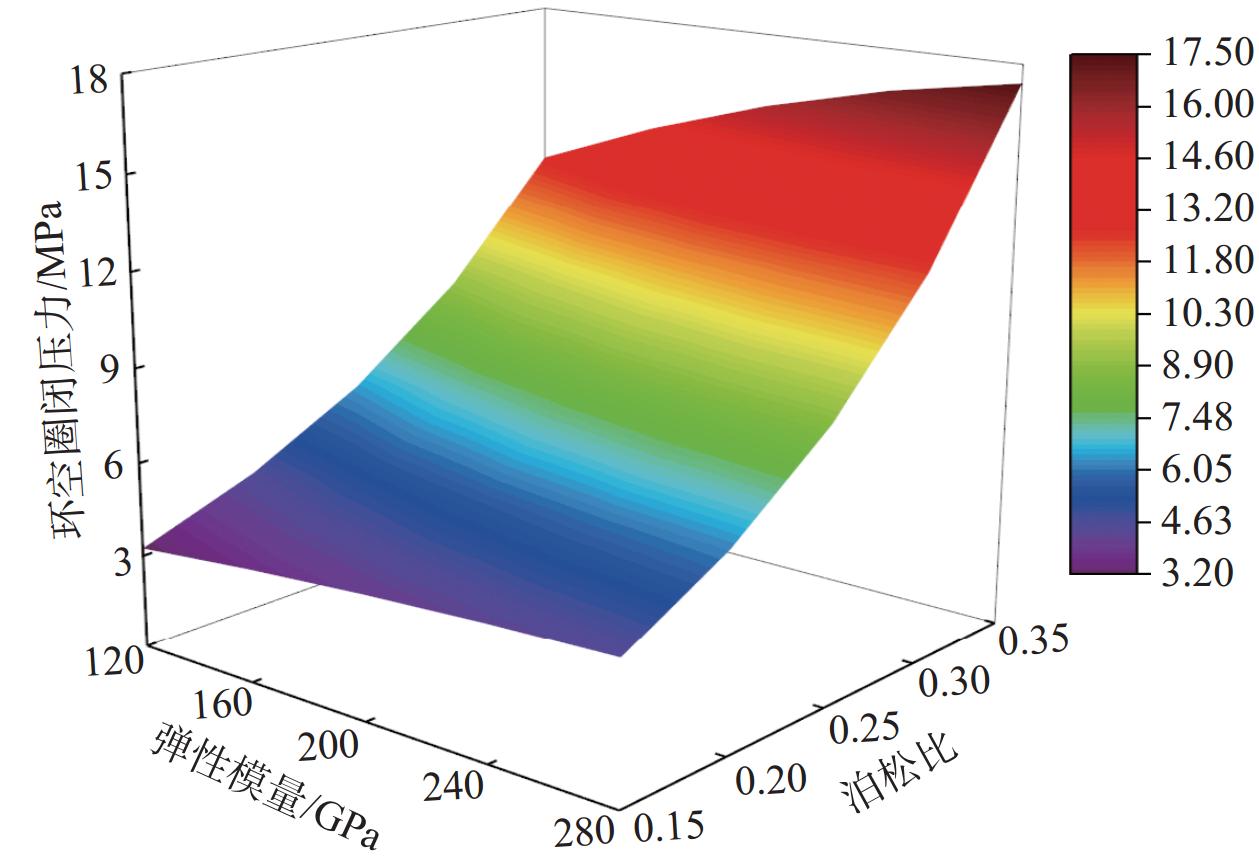

图 13 B环空圈闭压力随套管弹性模量和泊松比的变化规律
Figure 13. Variation of trapping pressure in annulus B with elastic modulus of casing and Poisson’s ratio
![]()

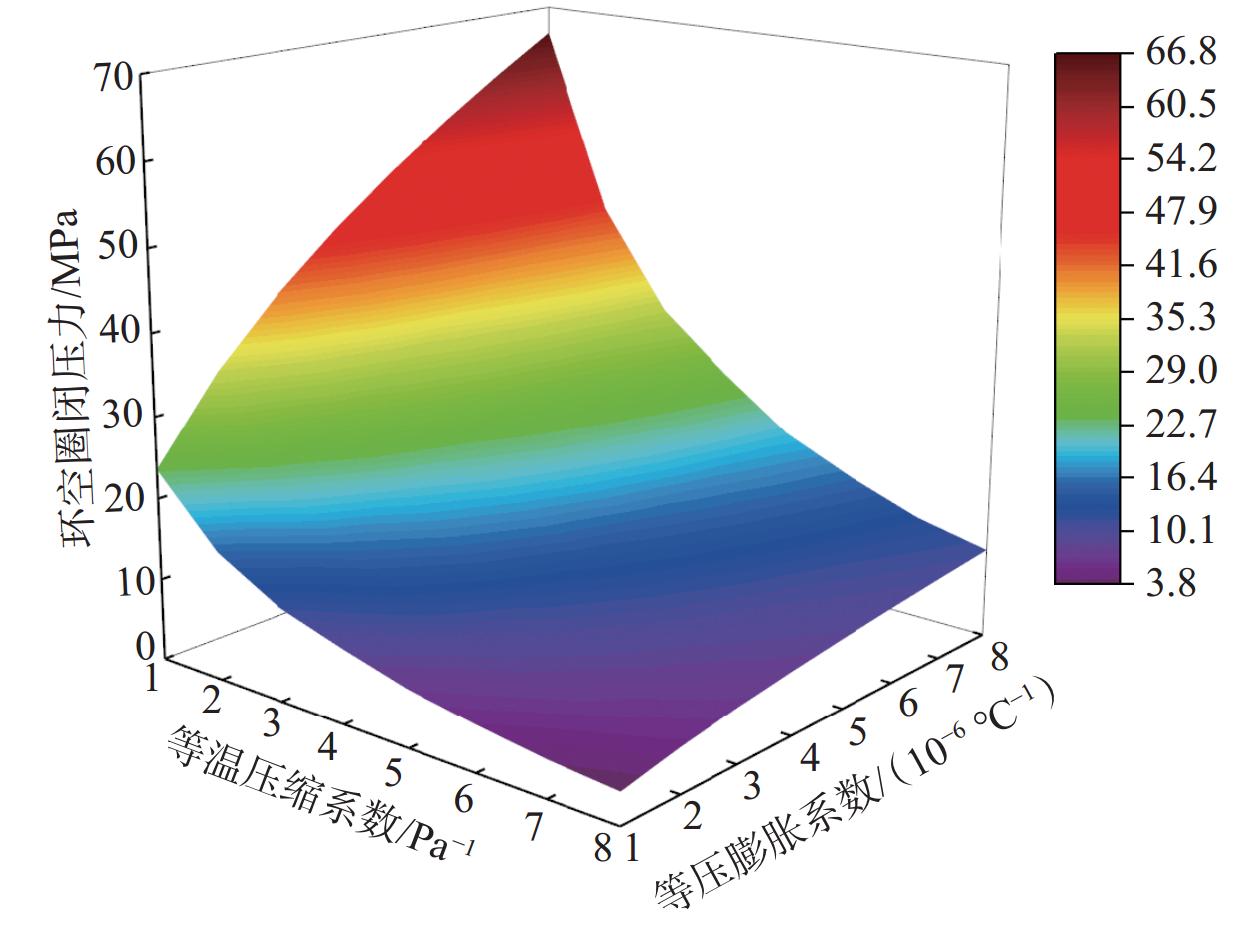

图 14 B环空圈闭压力随钻井液膨胀系数和压缩系数的变化规律
Figure 14. Variation of trapping pressure in annulus B with expansion coefficient and compression coefficient of drilling fluid
表 1 井筒第i环空第j网格的环空圈闭压力离散求解参数
Table 1 Parameters for discrete solution to annular trapping pressure of wellbore in i-th annular space and j-th grid
井筒第i环空网格 已知参数 求解变量 j=1 ρi1，αi1，βi1 ∆Ti1，∆pi1 j=2 ρi2，αi2，βi2 ∆Ti2，∆pi2 … … … j=m ρim，αim，βim ∆Tim，∆pim
下载: 导出CSV
-
[1] 张来斌,谢仁军,殷启帅. 深水油气开采风险评估及安全控制技术进展与发展建议[J]. 石油钻探技术,2023,51(4):55–65. ZHANG Laibin, XIE Renjun, YIN Qishuai. Technical progress and development suggestions for risk assessment and safety control of deep-water oil and gas exploitation[J]. Petroleum Drilling Techniques, 2023, 51(4): 55–65.
[2] 王金铎,王宴滨,贺子磬,等. 气侵条件下深水钻井井筒温压耦合场分布规律研究[J]. 石油钻探技术,2024,52(6):50–61. WANG Jinduo, WANG Yanbin, HE Ziqing, et al. Temperature and pressure coupling field distribution law in deepwater drilling wellbore under gas kick[J]. Petroleum Drilling Techniques, 2024, 52(6): 50–61.
[3] WILLIAMSON R, SANDERS W, JAKABOSKY T, et al. Control of contained-annulus fluid pressure buildup[R]. SPE 79875, 2003.
[4] AZZOLA J H, TSELEPIDAKIS D P, PATTILLO P D, et al. Application of vacuum–insulated tubing to mitigate annular pressure buildup[J]. SPE Drilling & Completion, 2007, 22(1): 46–51.
[5] HASAN A R, IZGEC B, KABIR C S. Ensuring sustained production by managing annular-pressure buildup[R]. SPE 121754, 2009.
[6] 张锐尧,宋亚港. 深水钻井井筒压力预测与控制方法研究进展[J]. 世界石油工业,2024,31(5):74–82. ZHANG Ruiyao, SONG Yagang. Research progress in wellbore pressure prediction and control methods for deep water drilling[J]. World Petroleum Industry, 2024, 31(5): 74–82.
[7] 孔祥伟,林元华,何龙,等. 钻井多相流体运移特性及套压控制研究[J]. 应用力学学报,2015,32(5):823–827. KONG Xiangwei, LIN Yuanhua, HE Long, et al. Migration characteristics and control of back pressure for multiphase fluid along wellbore in drilling operations[J]. Chinese Journal of Applied Mechanics, 2015, 32(5): 823–827.
[8] VARGO R F Jr, PAYNE M, FUAL R, et al. Practical and successful prevention of annular pressure buildup on the Marlin project[J]. SPE Drilling & Completion, 2003, 18(3): 228–234.
[9] 高宝奎. 高温引起的套管附加载荷实用计算模型[J]. 石油钻采工艺,2002,24(1):8–10. GAO Baokui. Practical model for calculating the additional load on casing by high temperature[J]. Oil Drilling & Production Technology, 2002, 24(1): 8–10.
[10] ADAMS A. How to design for annulus fluid heat-up[R]. SPE 22871, 1991.
[11] 杨进,唐海雄,刘正礼,等. 深水油气井套管环空压力预测模型[J]. 石油勘探与开发,2013,40(5):616–619. YANG Jin, TANG Haixiong, LIU Zhengli, et al. Prediction model of casing annulus pressure for deepwater well drilling and completion operation[J]. Petroleum Exploration and Development, 2013, 40(5): 616–619.
[12] LODER T, EVANS J H, GRIFFITH J E. Prediction of and effective preventative solution for annular fluid pressure buildup on subsea completed wells-case study[R]. SPE 84270, 2003.
[13] 张波,管志川,张琦. 深水油气井开采过程环空压力预测与分析[J]. 石油学报,2015,36(8):1012–1017. ZHANG Bo, GUAN Zhichuan, ZHANG Qi. Prediction and analysis on annular pressure of deepwater well in the production stage[J]. Acta Petrolei Sinica, 2015, 36(8): 1012–1017.
[14] 刘劲歌. 深水油气井开采期间环空压力预测及释放机理研究[D]. 北京:中国石油大学(北京),2017. LIU Jinge. Research on the annular pressure buildup and mitigation mechanism in deepwater wells[D]. Beijing: China University of Petroleum(Beijing), 2017.
[15] 张万栋,罗鸣,吴江,等. 海上超高温高压钻井井筒温度压力场耦合研究[J]. 中国安全生产科学技术,2023,19(1):128–135. ZHANG Wandong, LUO Ming, WU Jiang, et al. Coupling analysis of wellbore temperature and pressure field in offshore extreme high pressure-high temperature drilling[J]. Journal of Safety Science and Technology, 2023, 19(1): 128–135.
[16] 刘金璐,李军,柳贡慧,等. 深水固井循环阶段井筒温度场预测模型研究[J]. 石油钻探技术,2024,52(4):66–74. LIU Jinlu, LI Jun, LIU Gonghui, et al. Prediction model of wellbore temperature field during deepwater cementing circulation stage[J]. Petroleum Drilling Techniques, 2024, 52(4): 66–74.
[17] 张智,王翔辉,黄媚,等. 基于随机森林和长短期记忆网络模型的高压气井环空带压预测方法[J]. 天然气工业,2024,44(9):167–178. ZHANG Zhi, WANG Xianghui, HUANG Mei, et al. A prediction method of annular pressure in high-pressure gas wells based on the RF and LSTM network models[J]. Natural Gas Industry, 2024, 44(9): 167–178.
[18] 刘雪琪,王志远,魏强,等. 物理信息神经网络驱动的井筒温度场求解方法[J]. 石油学报,2025,46(2):413–425. LIU Xueqi, WANG Zhiyuan, WEI Qiang, et al. A method for solving wellbore temperature field driven by physical information neural network[J]. Acta Petrolei Sinica, 2025, 46(2): 413–425.
[19] 曾静. 深水套管及水下井口温压效应研究[D]. 北京:中国石油大学(北京),2019. ZENG Jing. Coupling effect of temperature and pressure on deepwater casing and subsea wellhead[D]. Beijing: China University of Petroleum(Beijing), 2019.
[20] 孔祥伟,刘祚才,靳彦欣. 川渝裂缝性地层自动压井环空多相压力波速特性研究[J]. 应用数学和力学,2022,43(12):1370–1379. KONG Xiangwei, LIU Zuocai, JIN Yanxin. Study on multiphase pressure wave velocity characteristics of automatic kill annulus in Chuanyu fractured formation[J]. Applied Mathematics and Mechanics, 2022, 43(12): 1370–1379.
[21] 张更,李军,柳贡慧,等. 深水油气井全生命周期环空圈闭压力预测模型[J]. 石油机械,2022,50(4):49–55. ZHANG Geng, LI Jun, LIU Gonghui, et al. Prediction model of annular trapped pressure in the whole life cycle of deepwater oil and gas wells[J]. China Petroleum Machinery, 2022, 50(4): 49–55.
[22] XIE Renjun, ZHANG Laibin. A new prediction model of annular pressure buildup for offshore wells[J]. Applied Science, 2024, 14(21): 9768.
[23] 李洁月. 考虑固相沉降的井筒温度场与环空压力变化机理研究[D]. 西安:西安石油大学,2018 LI Jieyue. Study on change mechanism of wellbore temperature field and annular pressure considering solid sedimentation[D]. Xi’an: Xi’an Shiyou University, 2018.
[24] 宋闯,张晓诚,谢涛,等. 渤海 “三高” 气井环空早期圈闭压力预测[J]. 石油学报,2022,43(5):694–707. SONG Chuang, ZHANG Xiaocheng, XIE Tao, et al. Prediction of early annular trap pressure of three-high gas wells in Bohai Sea[J]. Acta Petrolei Sinica, 2022, 43(5): 694–707.
[25] 孔祥伟,董巧玲,叶佳杰. 储气库采–关作业油管气相波动压力分析[J]. 石油钻探技术,2023,51(6):93–98. KONG Xiangwei, DONG Qiaoling, YE Jiajie. Analysis of gas phase fluctuation pressure in oil pipes during production and shutdown operations of gas storage[J]. Petroleum Drilling Techniques, 2023, 51(6): 93–98.
[26] 邓元洲,陈平,张慧丽. 迭代法计算油气井密闭环空压力[J]. 海洋石油,2006,26(2):93–96. DENG Yuanzhou, CHEN Ping, ZHANG Huili. Calculating the pressure in sealed annulus in oil well by iterative method[J]. Offshore Oil, 2006, 26(2): 93–96.
[27] 朱德武,何汉平. 凝析气井井筒温度分布计算[J]. 天然气工业,1998,18(1):60–62. doi: 10.3321/j.issn:1000-0976.1998.01.015 ZHU Dewu, HE Hanping. Calculation of well bore temperature distribution in condensate gas well[J]. Natural Gas Industry, 1998, 18(1): 60–62. doi: 10.3321/j.issn:1000-0976.1998.01.015
[28] 刘书杰,罗鸣,马传华,等. 深水高温高压气井环空圈闭压力下油管柱安全评价方法[J]. 科学技术与工程,2024,24(12):4959–4968. LIU Shujie, LUO Ming, MA Chuanhua, et al. Safety evaluation method for tubing strings under annular trapping pressure in deep water high temperature and high pressure gas wells[J]. Science Technology and Engineering, 2024, 24(12): 4959–4968.
-
