降压法开采天然气水合物二次生成数值模拟研究

Numerical Simulation of Natural Gas Hydrate Reformation during Gas Recovery Induced by Depressurization

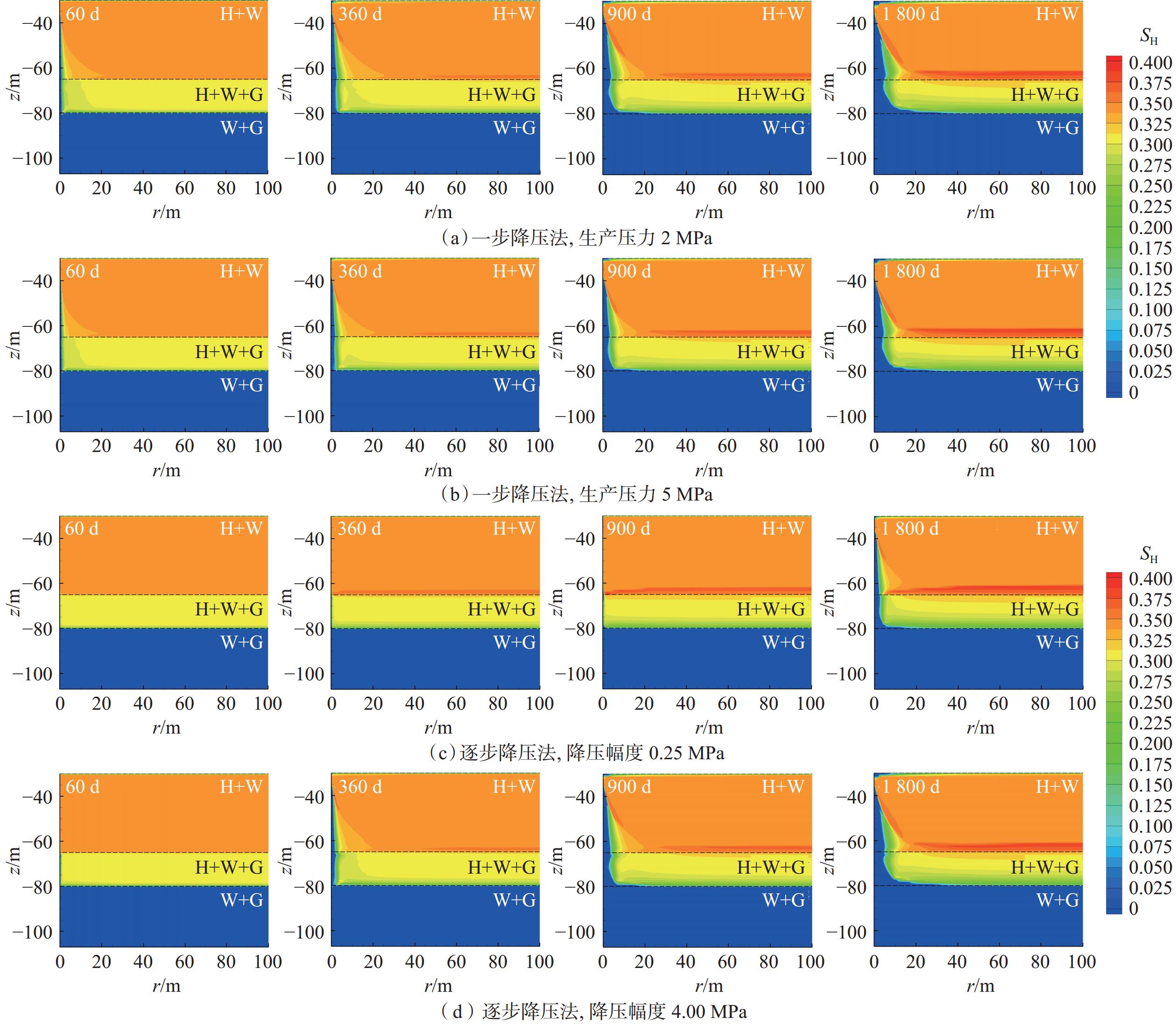

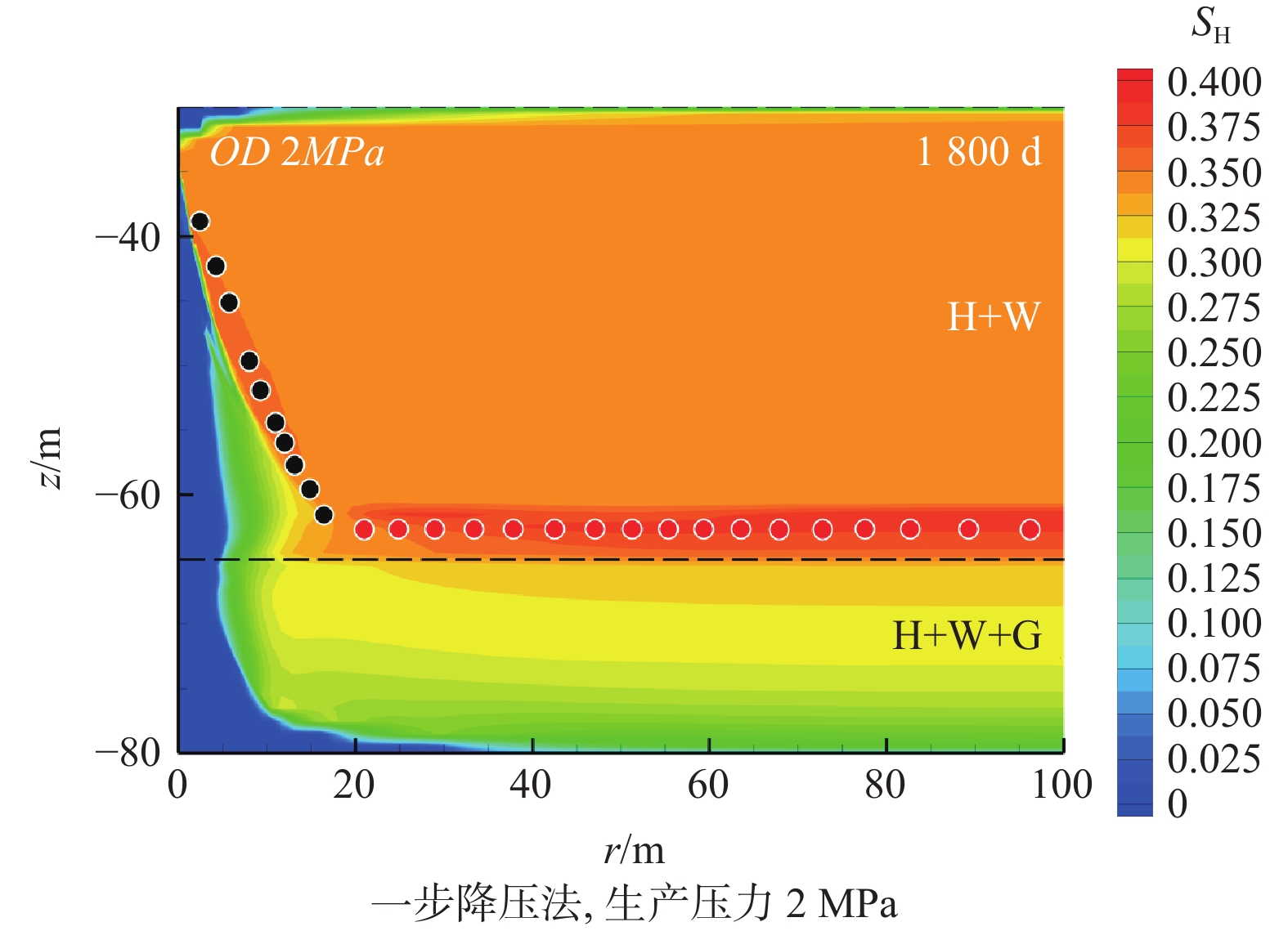

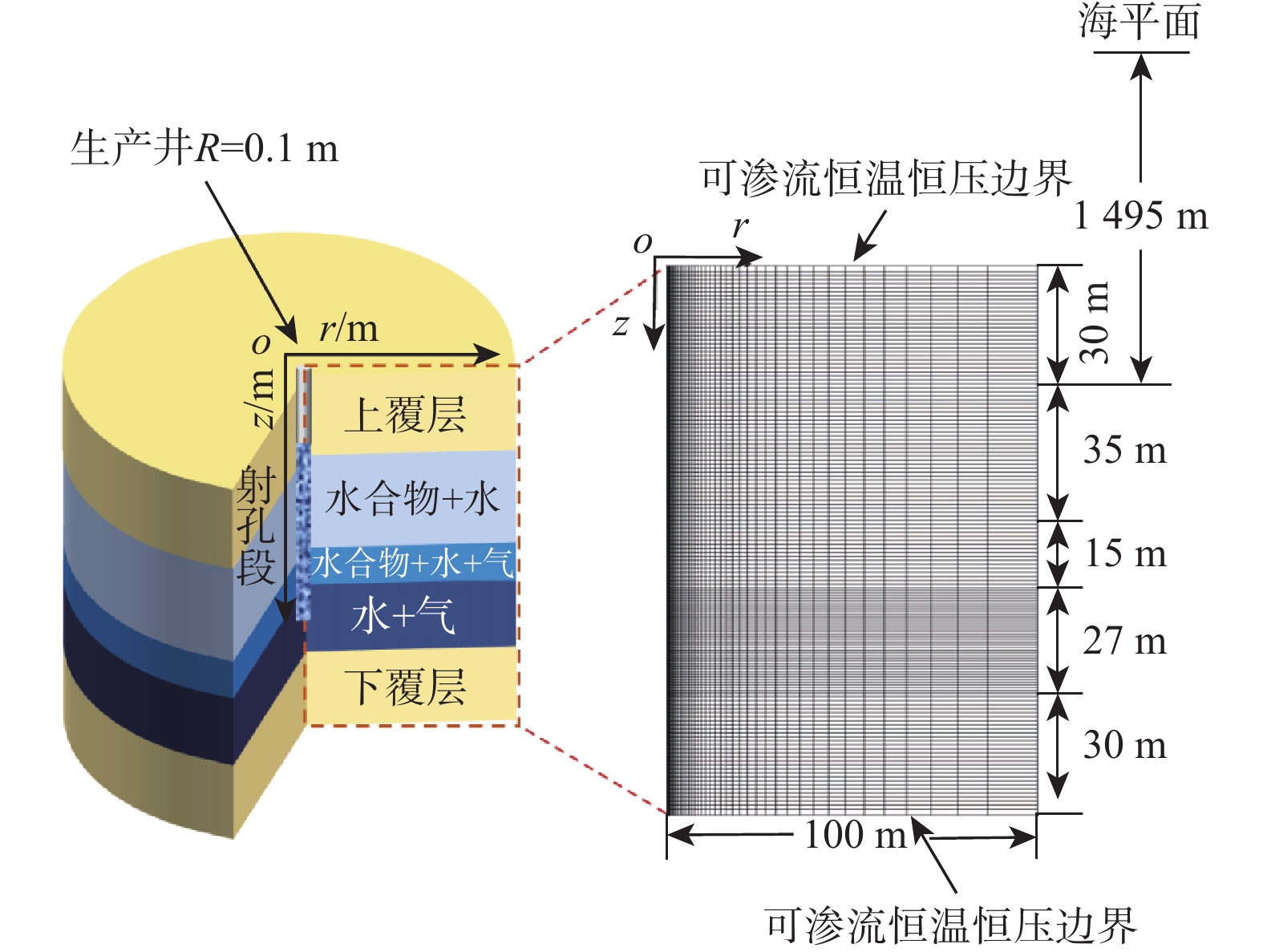

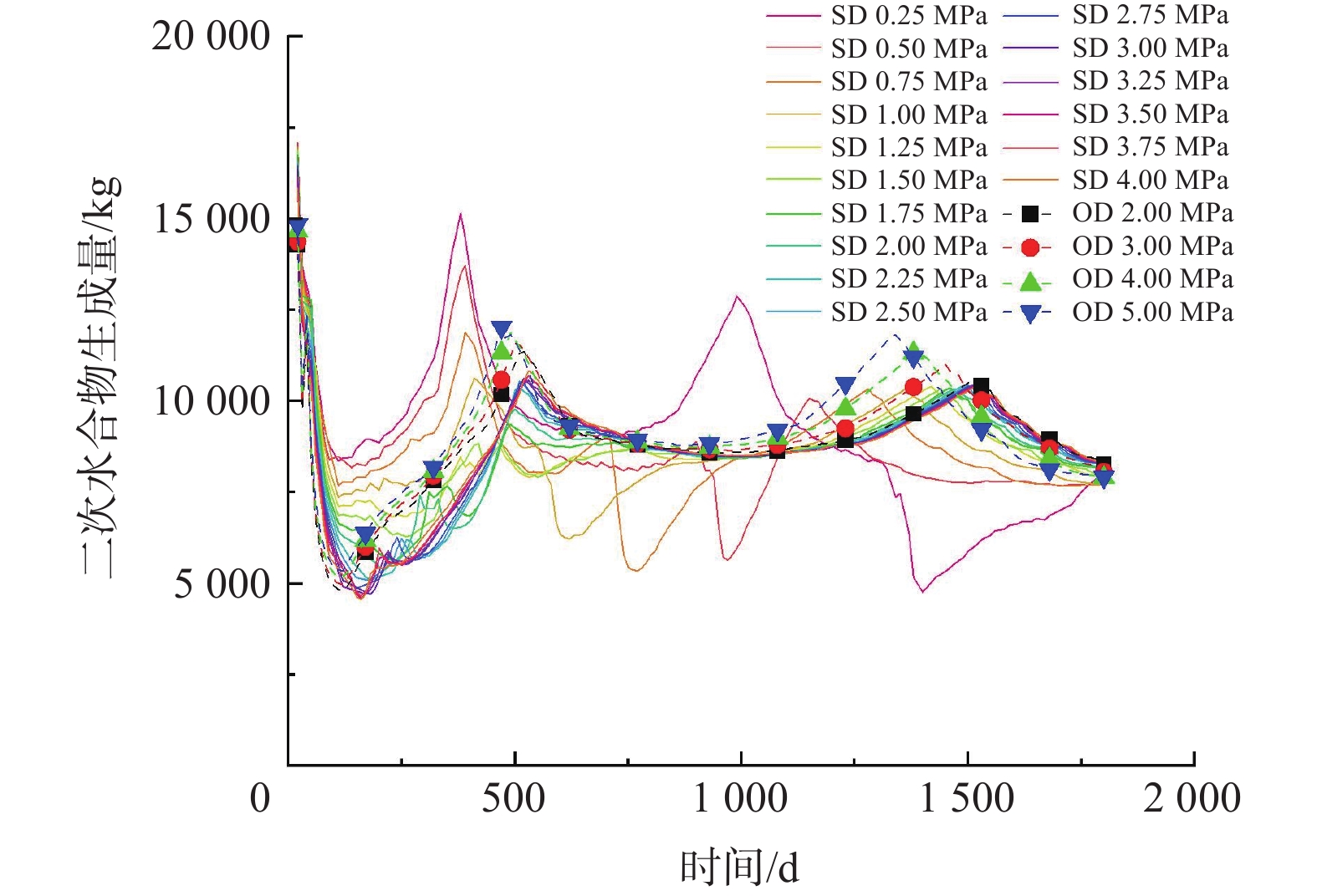

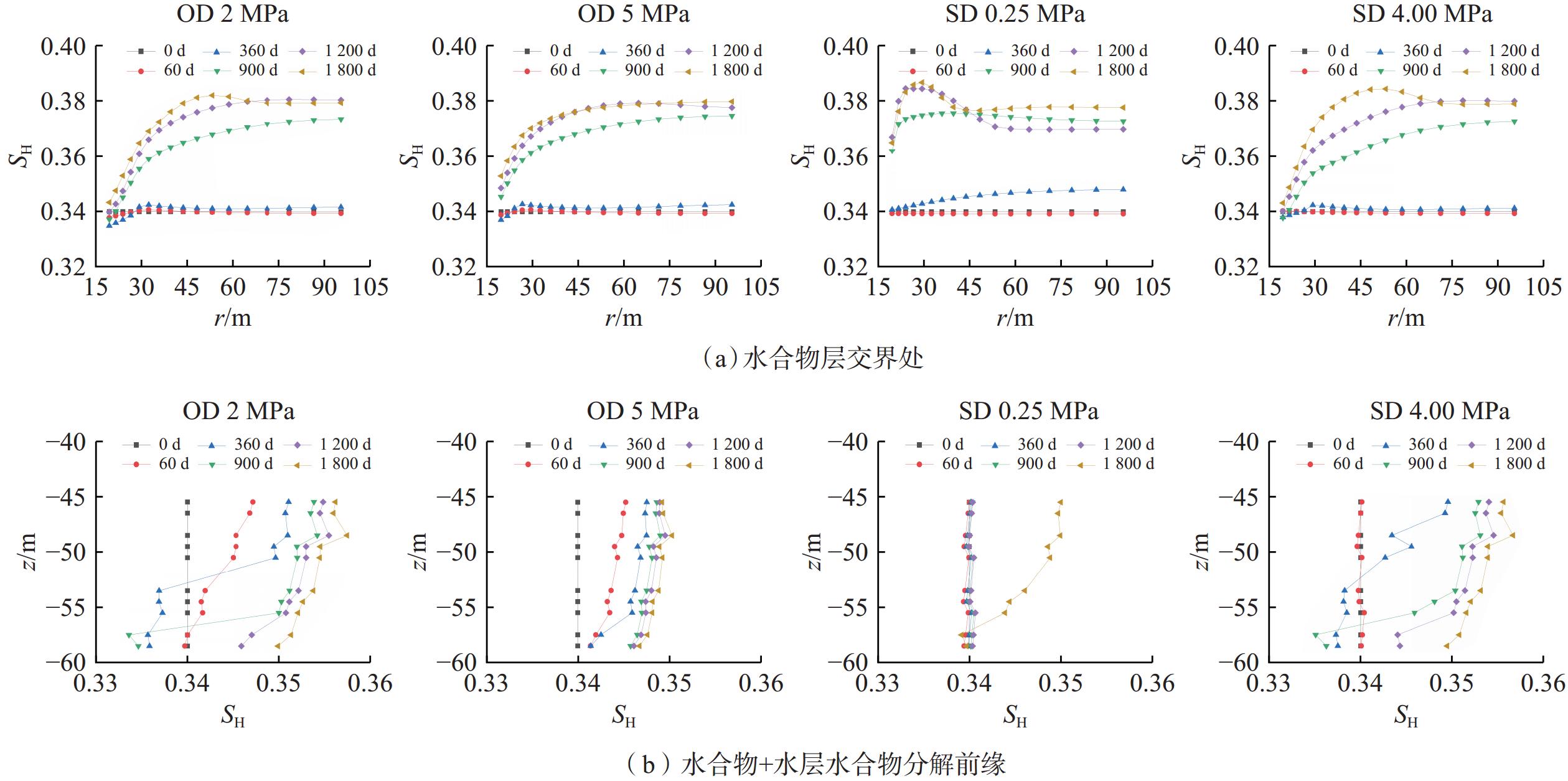

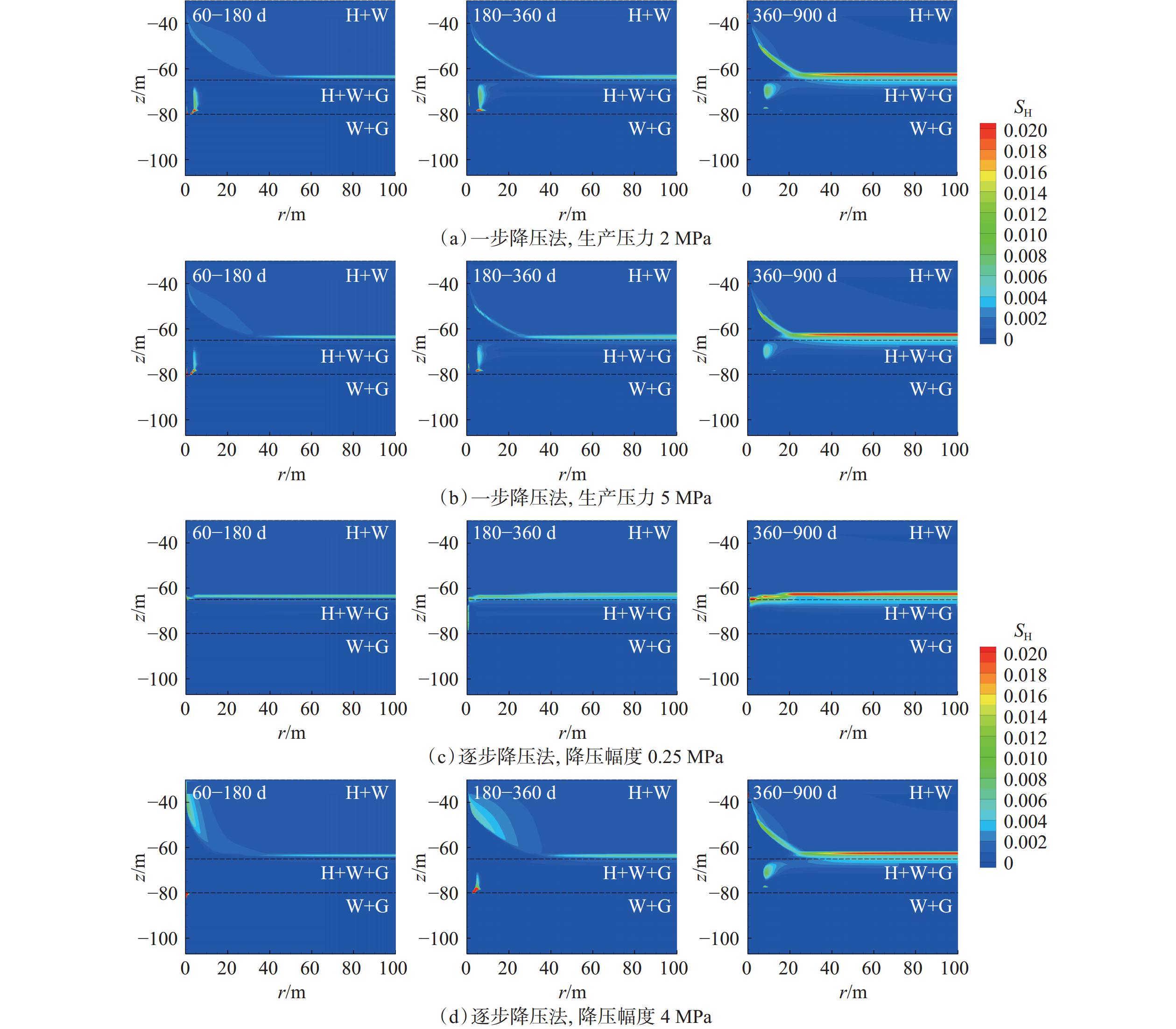

  • 摘要: 为了解天然气水合物开采过程中二次生成水合物对产气效率和开采安全的影响,运用流体动力学和有限差分法建立了直井降压开采天然气水合物二次生成的数值模拟模型,模拟了不同降压方式下水合物二次生成区域、时空演化特征以及生成量,结果显示:水合物分解前缘和水合物层交界处是二次生成水合物的主要区域;水合物分解前缘处二次生成水合物的时间通常更早,且离井筒越近,二次生成的水合物越多;二次生成水合物的量在开采初期先减小后增大,中期略有下降后稳定,后期由于热量供应不足导致二次生成水合物的量增大。降压方式对二次生成水合物有明显的影响,逐步降压法相对一步降压法可以控制水合物分解前缘处二次生成水合物的范围并推迟二次生成水合物的时间;一步降压法二次生成水合物的量与降压幅度成反比;逐步降压法前期二次生成水合物的量与降压幅度成反比,后期成正比。研究结果可为天然气水合物开采方式的选择提供理论依据。



    Abstract: To understand the impact of hydrate reformation on gas production efficiency and mining safety during natural gas hydrate recovery, a numerical model for natural gas hydrate reformation in vertical wells under depressurization was established based on the theories of fluid dynamics and the finite difference method. The hydrate reformation region, spatiotemporal evolution characteristics, and hydrate amount under different depressurization strategies were simulated. Results show that the hydrate decomposition front and the interface of hydrate layers are the primary regions of hydrate reformation. Hydrate reformation at the hydrate decomposition front typically form earlier, with higher concentrations closer to the wellbore. The amount of hydrate reformation initially decreases then increases at the early recovery stage, stabilizes after slight declines at the middle stage, and then increases due to insufficient heat supply at the later stage. The depressurization mode has obvious influence on hydrate reformation. The stepwise depressurization (SD) mode, compared to one-step depressurization (OD) mode, can control the spatial extent of hydrate reformation at the hydrate decomposition front and delay the hydrate reformation time. The amount of hydrate reformation by OD mode is inversely proportional to the pressure reduction magnitude. However, for SD mode, the amount of hydrate reformation at the initial stage is inversely proportional to the pressure reduction magnitude but directly proportional to the pressure reduction magnitude at the later stage. These findings provide a theoretical basis for selecting natural gas hydrate exploitation strategies.



/
