张岩,冯海顺,翟勇,等. 低渗透稠油油藏CO2压驱提高采收率机理及规律研究[J]. 石油钻探技术,2024,52(4):1-10. DOI: 10.11911/syztjs.2024070
引用本文: 张岩,冯海顺,翟勇,等. 低渗透稠油油藏CO2压驱提高采收率机理及规律研究[J]. 石油钻探技术,2024,52(4):1-10. DOI: 10.11911/syztjs.2024070
ZHANG Yan, FENG Haishun, ZHAI Yong, et al. Experimental study on the enhancing oil recovery mechanisms and displacement law of CO2 high speed flooding in low permeability reservoirs [J]. Petroleum Drilling Techniques, 2024, 52(4):1-10. DOI: 10.11911/syztjs.2024070
Citation: ZHANG Yan, FENG Haishun, ZHAI Yong, et al. Experimental study on the enhancing oil recovery mechanisms and displacement law of CO2 high speed flooding in low permeability reservoirs [J]. Petroleum Drilling Techniques, 2024, 52(4):1-10. DOI: 10.11911/syztjs.2024070

低渗透稠油油藏CO2压驱提高采收率机理及规律研究

Experimental Study on the Enhancing Oil Recovery Mechanisms and Displacement Law of CO2 High Speed Flooding in Low Permeability Reservoirs

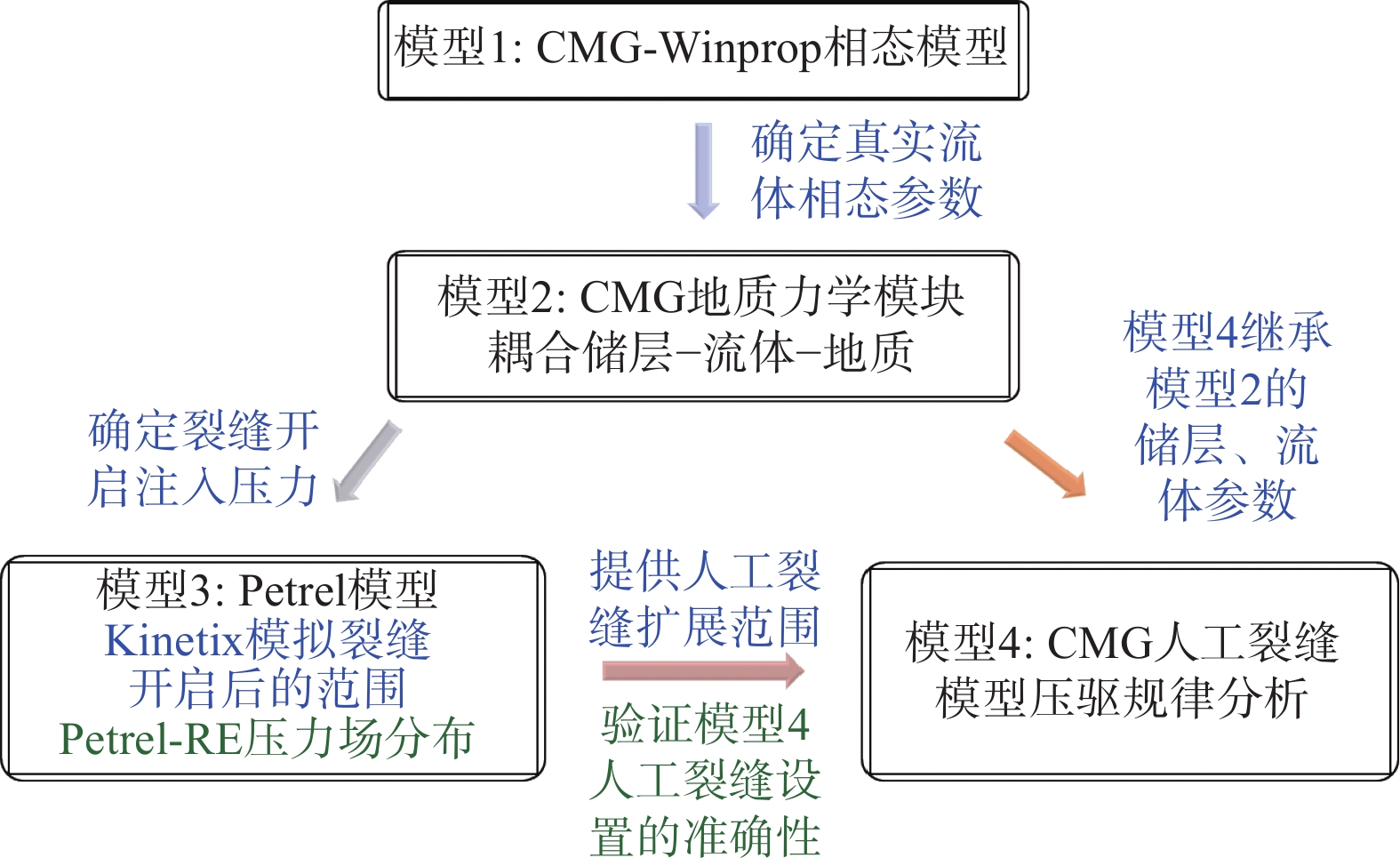

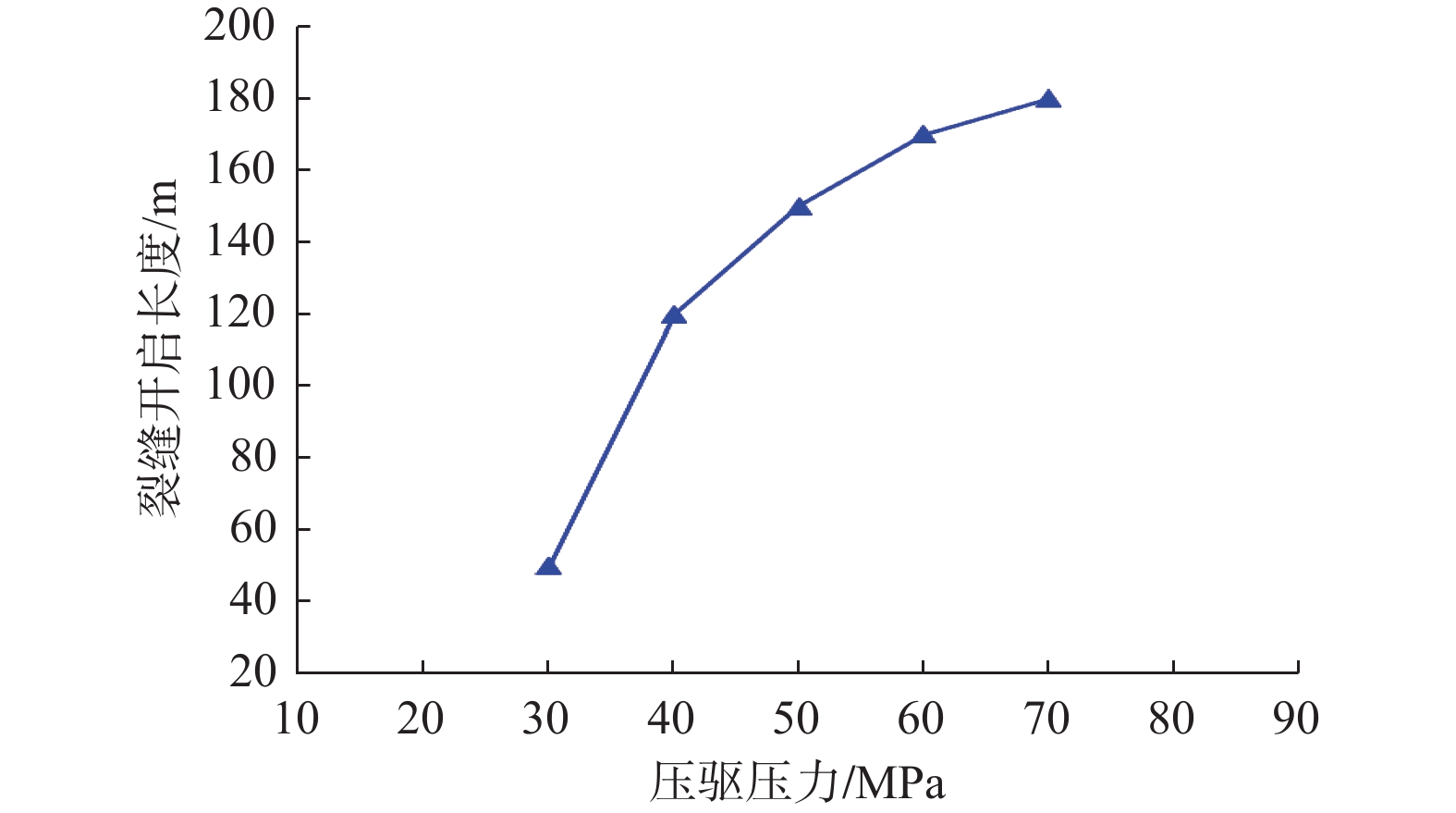

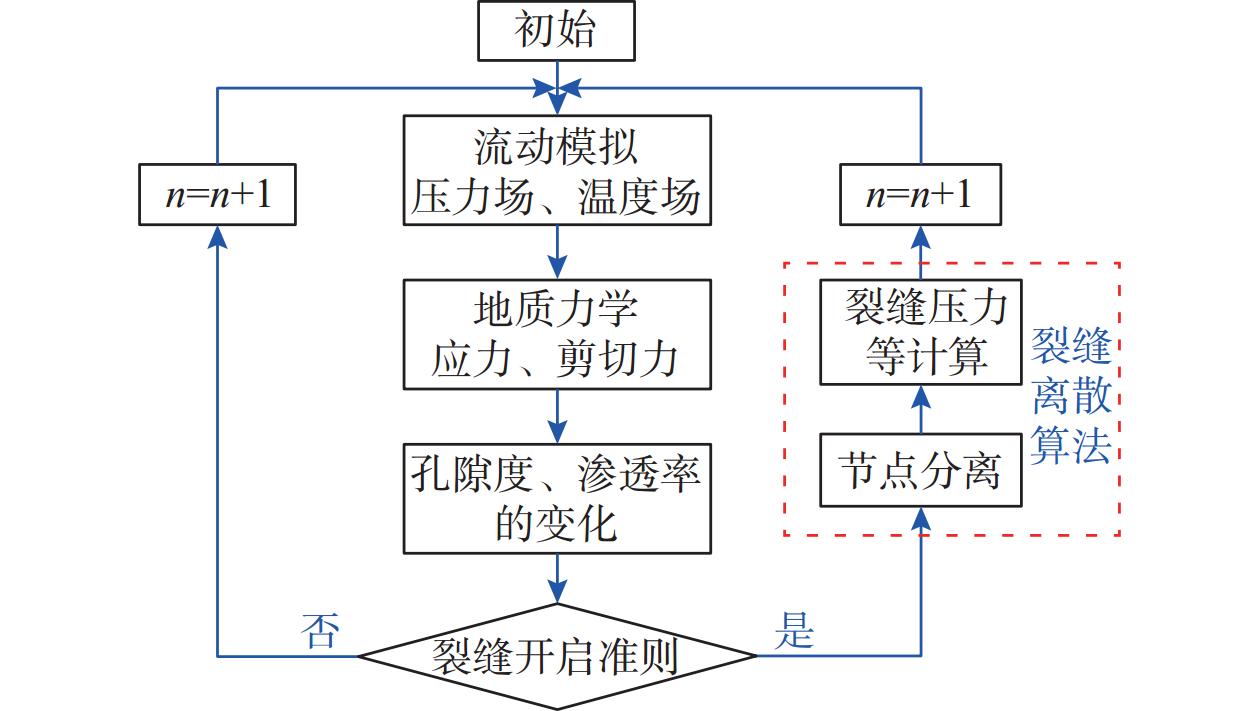

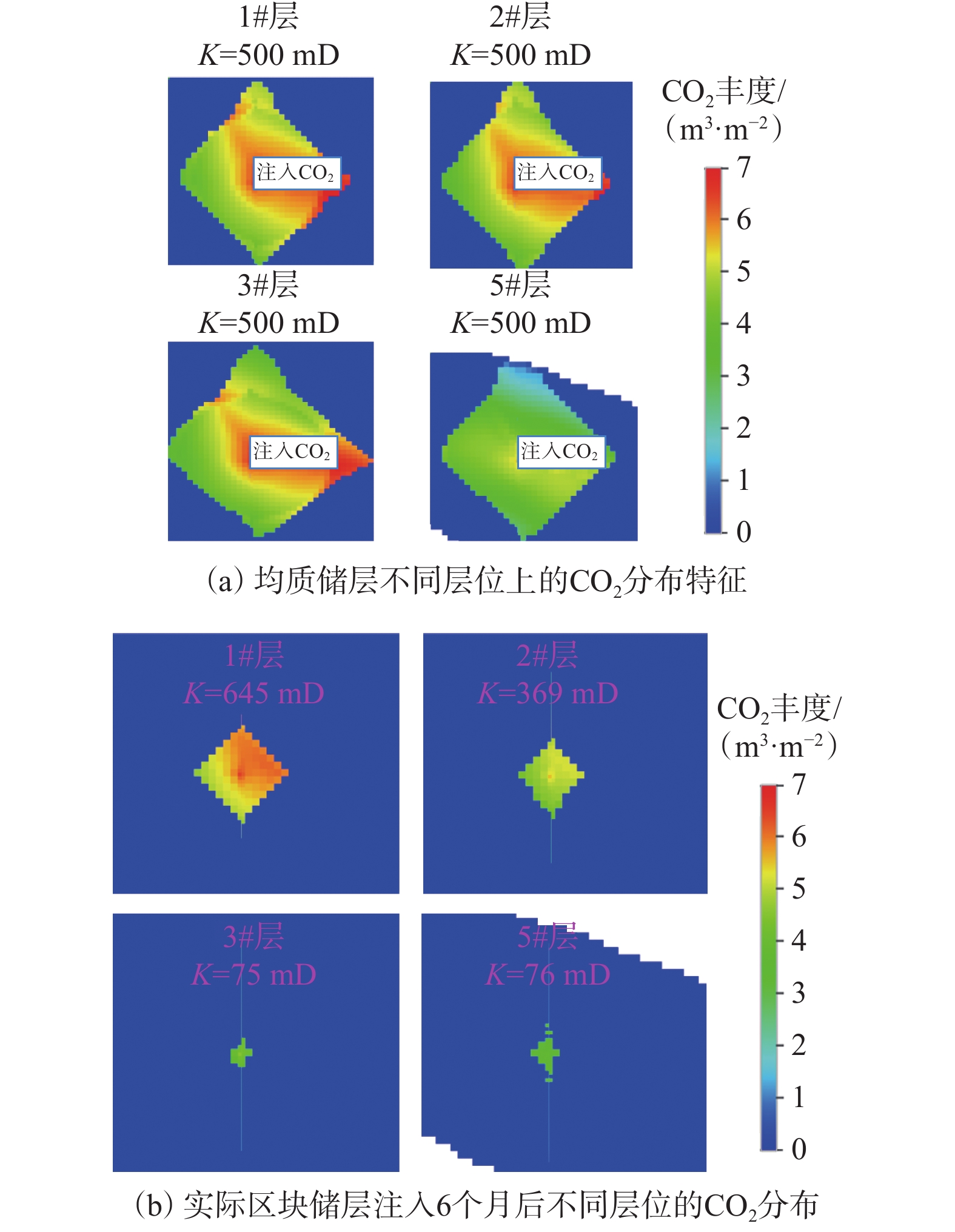

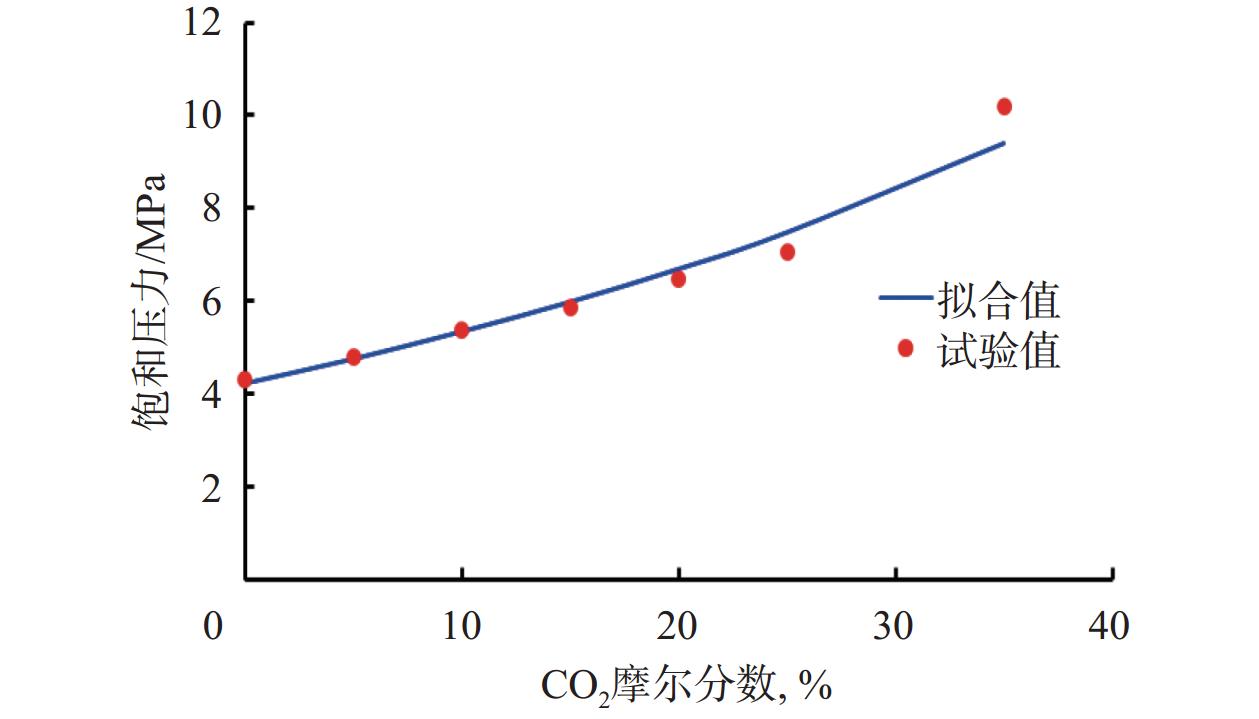

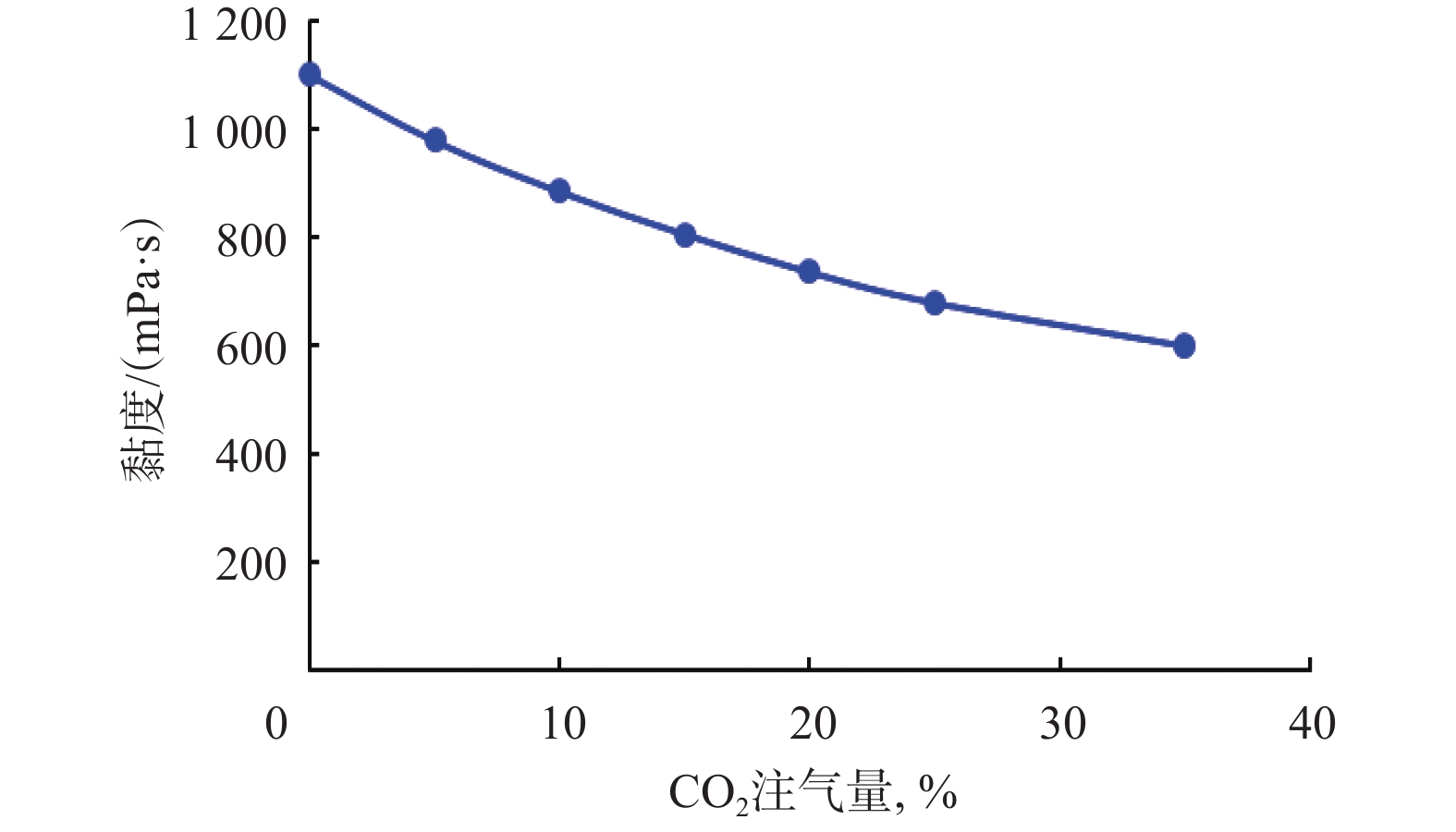

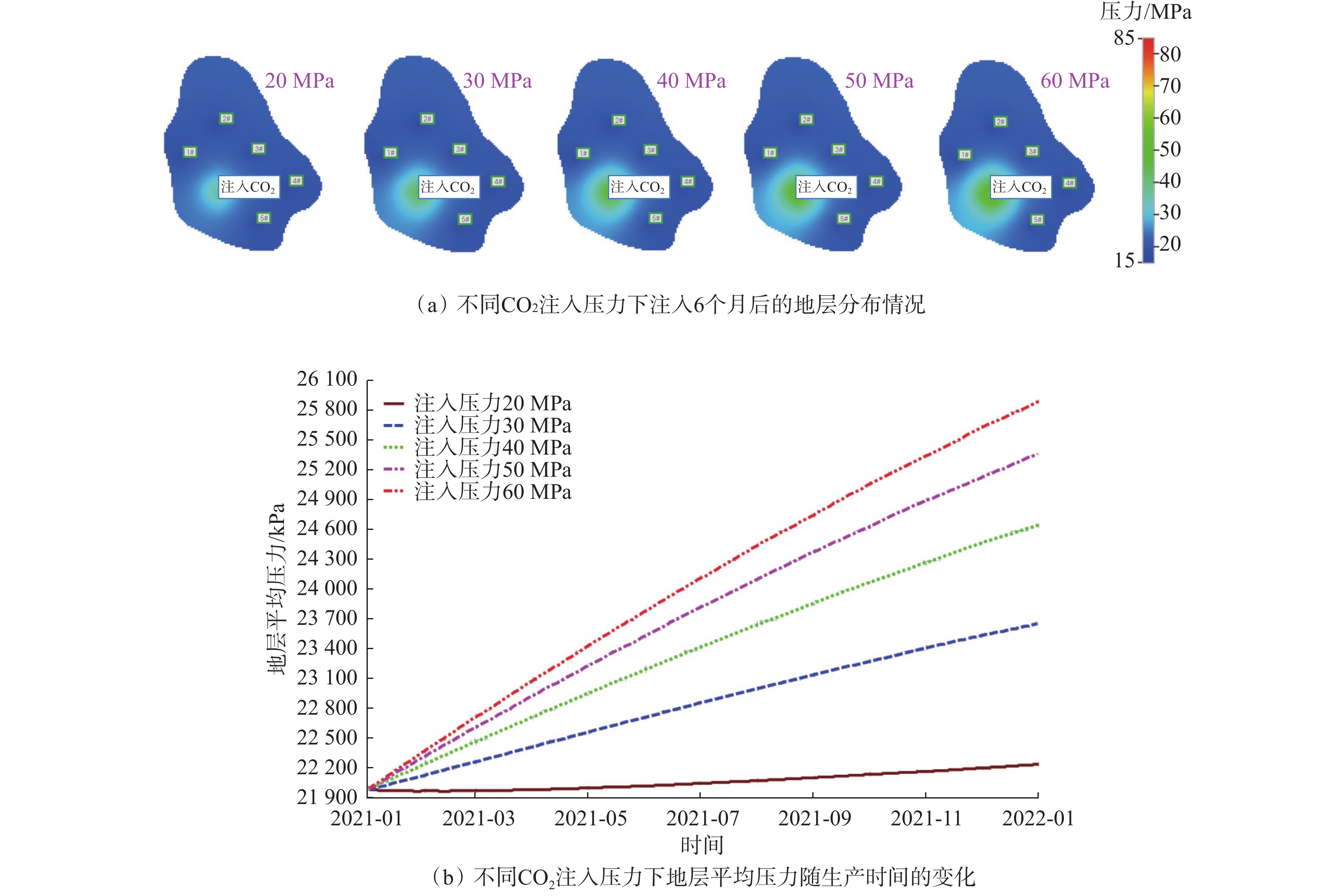

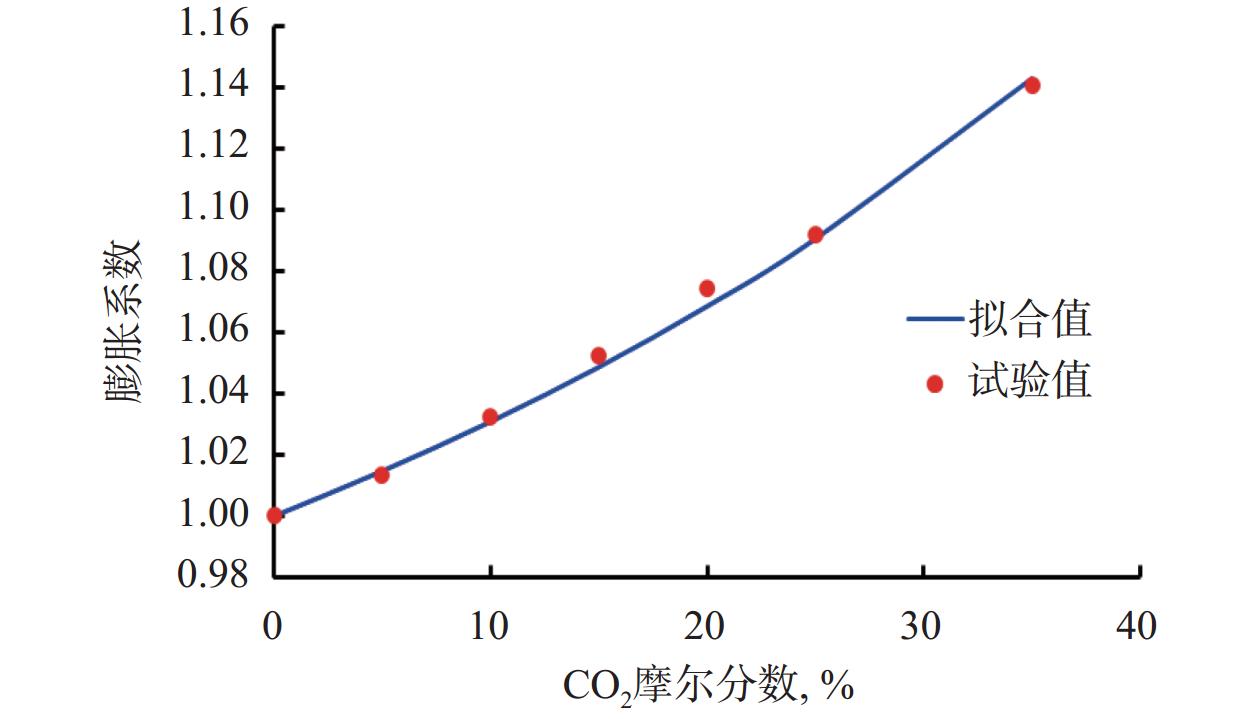

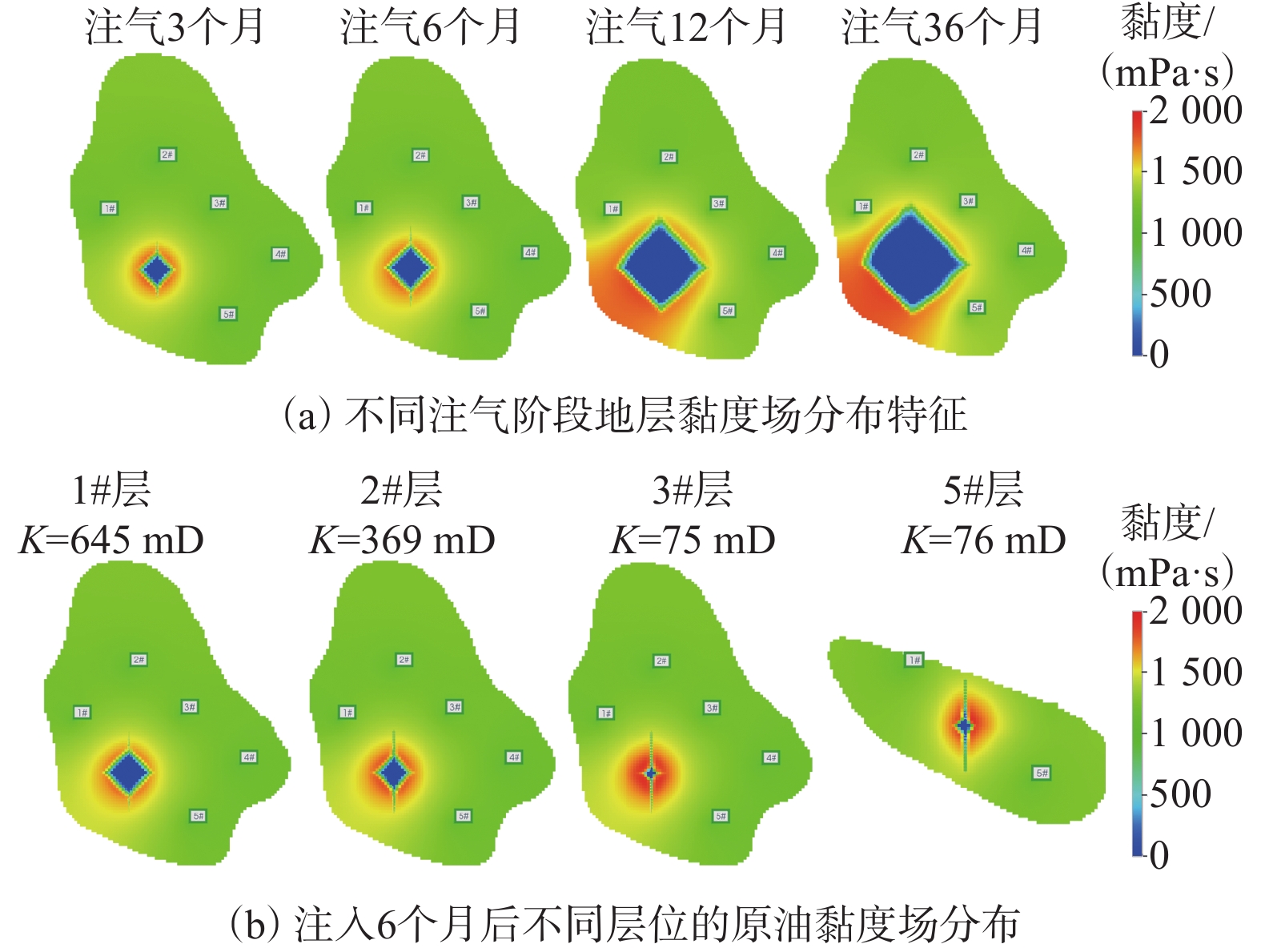

  • 摘要: 为明确低渗透稠油油藏CO2压驱开采机理及开发效果,利用相态模拟技术分析了CO2对稠油的作用机理。基于有限元离散法,建立了裂缝扩展渗流场−应力场耦合模型,分析了注入压力对裂缝扩展行为的影响。基于裂缝生成模拟结果,建立了考虑CO2复合压驱后形成复杂裂缝的数值模型用于油藏压后生产模拟,形成了基于油藏动态参数的稠油油藏CO2压驱数值模拟方法,研究了CO2压驱过程中的裂缝扩展行为,优化了CO2压驱工艺参数。模拟结果表明,CO2压驱的主要作用机理包括降低原油黏度、膨胀原油、增强原油流动性、在注入井附近造缝提高CO2注入能力及增加地层压力。CO2具有较好的增能效果,CO2运移受储层非均质性影响严重,气体超覆作用导致注入的CO2易在储层上部位聚集,上部位原油降黏效果更为显著。通过优化稠油CO2压驱工艺参数,建议将压驱注入压力控制在40~50 MPa。该研究结果对稠油油藏CO2压驱设计及现场应用具有一定的指导意义。



    Abstract: In order to clarify the production mechanism and development effect of CO2 pressure flooding in heavy oil reservoir, this study analyzed the action mechanism of CO2 on heavy oil by using phase simulation technology. Based on the finite element discrete method, a coupling model of seepage field and stress field was established to analyze the influence of injection pressure on fracture propagation behavior. Based on the simulation results of fracture generation, a numerical model considering the formation of complex fractures after CO2 composite pressure flooding was established for the simulation of reservoir production after pressure flooding. A numerical simulation method of CO2 pressure flooding for heavy oil reservoirs based on reservoir dynamic parameters was developed. The propagation behavior of fractures during CO2 pressure flooding was studied, and the technological parameters of CO2 pressure flooding were optimized. The simulation results show that the main mechanisms of CO2 flooding include reducing oil viscosity, expanding oil, enhancing oil fluidity, creating fractures near injection Wells to improve CO2 injection capacity and increasing formation pressure. The CO2 pressure flooding results of heavy oil show that CO2 has a good energy increasing effect, and CO2 migration is seriously affected by the heterogeneity of the reservoir. The gas overburden leads to the accumulation of CO2 in the upper part of the reservoir, and the viscosity reduction effect of the upper part of the oil is more significant. Through the optimization of CO2 pressure flooding process parameters for heavy oil, it is suggested that the pressure flooding injection pressure should be controlled within 40~50 MPa. The results of this study have certain guiding significance for the design and field application of CO2 pressure flooding in heavy oil reservoirs.



/
