Key Technologies and Prospect of Salt Cavern Hydrogen Storage in China
-
摘要:
随着中国“双碳”目标的推进，传统化石能源正向可再生清洁能源转型。氢能具有来源广、能量密度高和高效清洁等特点，已成为未来重要的能源构成。盐穴的气密性优势明显，且盐与氢气不发生反应，是地下大规模储氢的首选。为聚焦中国盐穴储氢技术研究和未来发展，分析了储氢地质类型及特征，详细阐述了盐穴储氢研究进展和国外运营现状；围绕盐穴储氢技术，深入剖析了大尺寸钻完井、盐穴造腔及形态控制、腔体密封性评价、井筒完整性检测及评价、管材腐蚀及氢脆控制等关键技术；总结了近年来各国制定的相关氢能政策和战略目标，结合我国盐穴储氢未来发展的机遇和挑战，对盐穴储氢地质选择和评估、大尺寸井筒完整性、盐穴造腔形态控制和密封性检测、氢能和盐业有机协同发展进行了展望，以期推进氢能规模化应用与产业链发展。研究结果为中国盐穴储氢发展和规划提供了技术参考。
Abstract:With the advancement of China’s carbon peaking and carbon neutrality (“dual carbon”) goals, traditional fossil energy is being transformed into renewable and clean energy. Hydrogen energy, characterized by wide sources, high energy density, and high efficiency and cleanliness, has become an important energy component in the future. Salt caverns have especially obvious advantages in terms of gas tightness, and salt does not react with hydrogen, making them the first choice for large-scale underground hydrogen storage. In order to focus on the research and future development of salt cavern hydrogen storage technologies in China, the geological types and characteristics of hydrogen storage were analyzed and the research progress of salt cavern hydrogen storage and its current situation in foreign operations were discussed. In view of the salt cavern hydrogen storage technologies, the key technologies such as large-size drilling and completion, salt cavern cavity creation and morphology control, cavity sealing evaluation, wellbore integrity testing and evaluation, and control of tubing corrosion and hydrogen embrittlement were analyzed. The relevant hydrogen energy policies and strategic goals formulated by various countries in recent years were summarized. Combining the opportunities and challenges for the future development of salt cavern hydrogen storage in China, the prospects were provided for the geological selection and evaluation of salt cavern hydrogen storage, integrity of large-size wellbore, morphology control of salt cavern cavity creation and sealing detection, and organic synergistic development of hydrogen energy and salt, with a view to advancing the large-scale application of hydrogen energy and the development of industrial chain. The results of the study can provide a reference for the development and planning of salt cavern hydrogen storage in China.
-
-
![]()

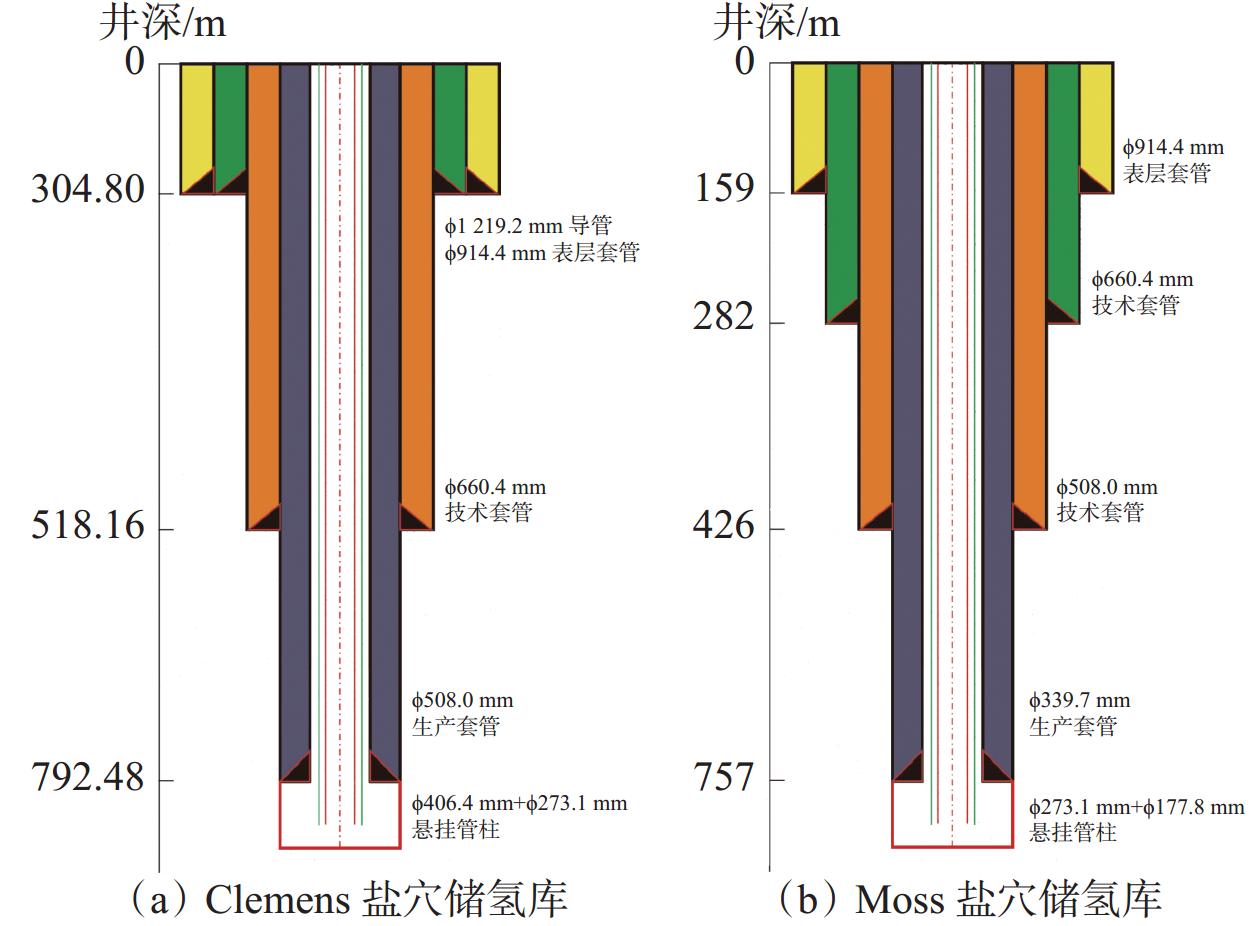

图 2 盐穴储氢库Clemens和Moss的井身结构
Figure 2. Casing programs for salt cavern hydrogen storages Clemens and Moss
表 1 不同地质类型储氢库对比[16]
Table 1 Comparison of hydrogen storage reservoirs of different geological types[16]
类型 优点 缺点 应用现状 枯竭气藏 存储容量巨大；
分布广，地层构造清晰；
地层中的剩余气可以用作缓冲气氢可能与地下矿物和流体发生反应；
储氢可能触发耗氢微生物的生长；
储氢库的应力场会发生变化，影响密封性；
垫底气比例高，收效率可能低尚无商业储氢案例，
有天然气储气库案例含水层 地层密封性相对好；
工程造价相对较低；
适宜地区潜在的库容大勘探难度大，选址受限；
盖层要求较高，需要不透水地层；
需采取注浆等措施提高储能效率；
地层不存在原生气体，垫底气比例高欧洲有少量天然气+
氢气混合储气库案例硬岩硐室 硬岩地层分布广泛，选址相对较易；
洞穴自稳性好，变形小，库容稳定；
运行压力区间大；
注采速度快，适合多循环注采；
垫底气比例要求低建库造价相对较高，经济性较差；
存储容积有限；
施工工艺复杂，技术难度较大尚无储氢案例 废弃矿井 废弃矿井分布多样，选址灵活；
垫底气比例可能低；
利用旧矿井，建设成本较低地质特性可能不适合长期储存；
废弃矿井的安全性难以有效保证尚未储氢案例 盐穴 盐岩渗透性小，密封性良好；
损伤自愈合性好，气体渗漏风险低；
地下工程相对简单、技术较成熟;
建库经济性好，造价相对较低；
注采效率高，速度快适合调峰，垫底气通常30%蠕变性较强，长期运行体积收缩较大；
氯离子作用下，高压氧腐蚀；
注采压力区间小；
盐岩地层分布相对较少，选址受限有储氢成功实例
下载: 导出CSV
国家/
地区储氢库名称 建库
时间气体组成 盐腔体积/
（104m3）深度/
m工作压力/
MPa美国 Clemens Dome 1983 H2 58.00 930 7.0～13.5 Moss Bluff 2007 H2 56.60 1 200 5.5～15.2 Spindletop 2014 H2 >58.00 1 340 6.8～20.2 英国 Tesside 1972 H2 21.00 365 4.5 Aldbrough 未来 天然气、H2 3 300.00 德国 Hypos 未来 H2 InSpEE 未来 H2 欧盟 HyUnder 未来 H2 40.00 法国 HyPster 未来 H2 4.84 Terega 未来 H2 33.00 丹麦 Green
Hydrogen
Hub未来 H2 0.66 1 370 荷兰 HyStock 未来 H2 0.66 1 200 LSES 未来 H2 140.00
下载: 导出CSV
影响因素 影响程度 产生不利影响的因素 井筒管柱及固井质量 高 生产套管腐坏，非气密扣，未到盐层或下管的距离不达标；
注采管柱、封隔器、安全阀等配件寿命较短，存在质量隐患和问题；
生产套管固井效果不理想，特别是与套管鞋邻近的区域盐腔压力 高 造腔时，若腔体压力超标，便会直接影响腔体特别是腔体脖颈处；
气库运行压力超标，影响了腔体尤其是腔体脖颈部位；
气库运行压力不足，使得腔顶垮塌，尤其是生产套管鞋部岩盐出现脱落问题盖层及夹层密封性 较高 盖层岩性不理想，受高压的影响，微孔隙、微孔洞或微裂隙贯通；
盖层突破压差不达标（深1 000 m处盖层突破压差需大于9.0 MPa）；
夹层中有裂缝或大规模的溶洞；
岩盐层启动压力梯度不足，在0.05 MPa/m以下；
24 h内腔内气体漏失量在2.8 Nm3以上岩盐蠕变 低 盐穴井口密封的时间过长，放压不及时 卤水热膨胀 低 盐穴井口密封的时间过长，放压不及时 岩盐溶解 低 造腔时，生产套管鞋部出现溶解现象 岩盐渗透性 低 能够降低岩盐蠕变和卤水热膨胀所致的腔内升压现象，有利于提升气库密封性能
下载: 导出CSV
-
