Development of a Reamer-while-Drilling with Multistage Variable Diameter and Analysis of Force on Blade and Weight-on-Bit Distribution
-
摘要:
深层小井眼采用随钻扩眼器进行扩眼作业时存在井眼缩径、固井质量差和卡钻频繁等问题。为解决该问题，基于随钻扩眼器基本结构和工作原理，采用新型变径结构，研制了一种多级变径随钻扩眼器；建立了随钻扩眼尺寸与主动活塞轴向位移之间的函数关系，并分析了扩眼器刀翼的受力情况；采用双因素计算方法分析了该扩眼器的钻压分配情况，得到了随钻扩眼器钻压分配比对扩眼尺寸、钻具锐度及地层抗压强度的影响规律。分析得知，随钻扩眼器的钻压分配比与钻遇地层抗压强度、扩眼尺寸呈正比，与扩眼器锐度呈反比，该扩眼器的理论井径扩大率为7%～20%。研究认为：对随钻扩眼器进行钻压分配分析，可以指导扩眼器的设计及领眼钻头的选型；研制的多级变径随钻扩眼器为提高扩眼效率提供了技术支撑。
Abstract:Reaming operations in deep slim holes with a reamer-while-drilling faced various problems, such as borehole shrinkage, poor cementing quality and frequent sticking etc. A reamer-while-drilling with multistage variable diameter was developed by adopting a new variable diameter structure following the basic structure and working principle of reamer-while-drilling. The functional relationship between the reaming-while-drilling size and the axial displacement of the active piston was built, and the forces on the blade of the reamer were investigated. The weight-on-bit distribution on the reamer was analyzed by the two-factor calculation method, and the influence laws of the weight-on-bit ratio of the reamer-while-drilling on reaming size, drilling tool sharpness, and the compressive strength of the formation were obtained. The analysis showed that the weight-on-bit ratio of the reamer-while-drilling was directly proportional to the compressive strength of the penetrated formation and reaming size, and inversely proportional to reamer sharpness. The theoretical borehole diameter enlargement rate of the reamer was 7%–20%. The paper concludes that weight-on-bit distribution analysis of reamers while drilling can guide the design of such reamers and the selection of pilot bits, and the developed reamer-while-drilling with multistage variable diameter can provide effective technical support for improving reaming efficiency.
-
-
![]()
图 1 多级变径随钻扩眼器的结构
Figure 1. Structure of reamer-while-drilling with multistage variable diameter
![]()

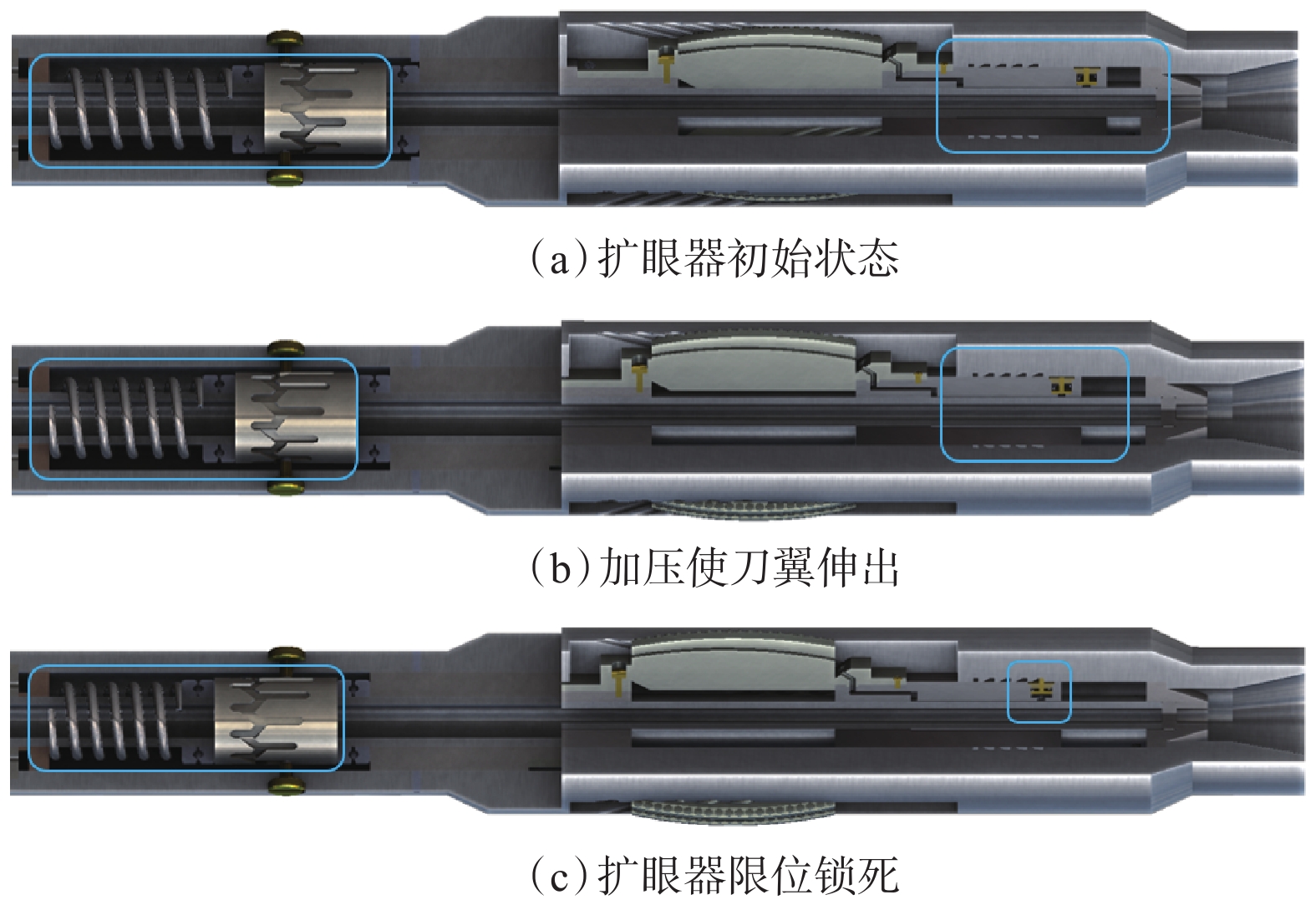

图 2 多级变径随钻扩眼器的工作原理
Figure 2. Working principle of reamer-while-drilling with multistage variable diameter
![]()

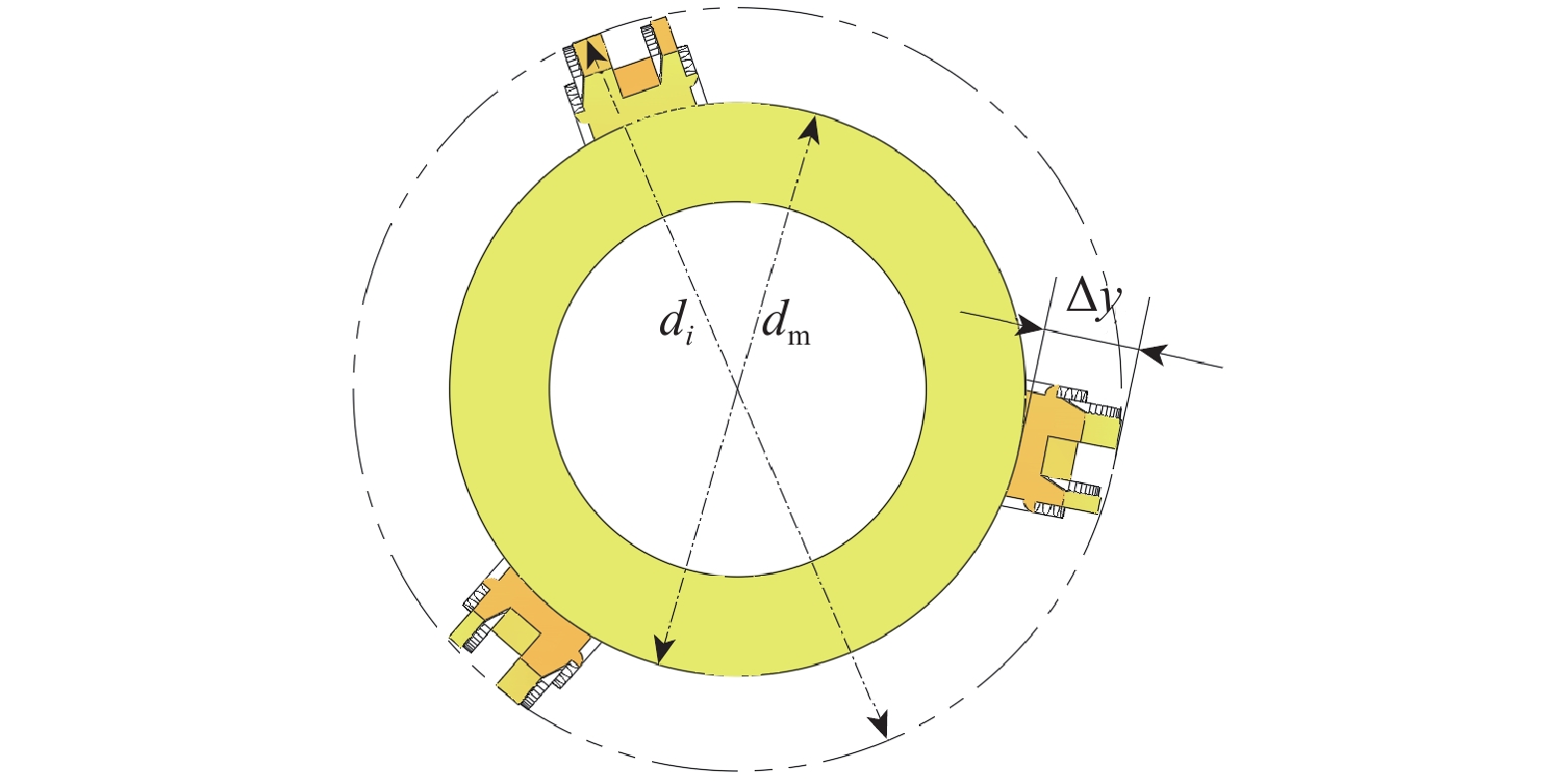

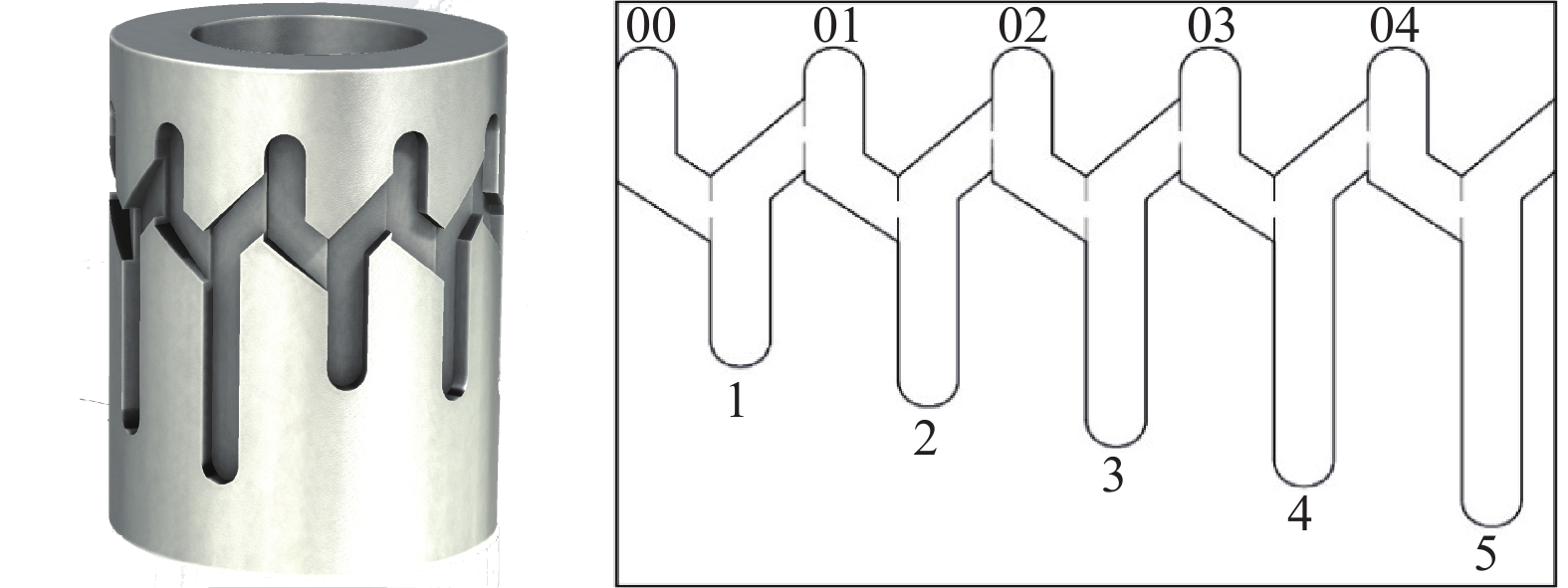

图 6 扩眼直径与主动活塞轴向位移的关系
Figure 6. Relationship between reaming diameter and axial displacement of active piston
![]()
图 7 多级变径随钻扩眼器钻压比与扩眼器和领眼钻头钻遇地层抗压强度之比的关系
Figure 7. Relationship between weight-on-bit ratio of reamer with multistage variable diameter and ratio of compressive strength of formation penetrated by reamer to that of formation penetrated by pilot bit
-
[1] 黄韬,何世明,汤明,等. 井下扩眼工具的研究现状分析[J]. 石油矿场机械,2021,50(3):8–16. doi: 10.3969/j.issn.1001-3482.2021.03.002 HUANG Tao, HE Shiming, TANG Ming, et al. Analysis of the research status of downhole reaming tools[J]. Oil Field Equipment, 2021, 50(3): 8–16. doi: 10.3969/j.issn.1001-3482.2021.03.002
[2] 张全立,曹通,侯福祥,等. 基于分区法的扩眼器刀翼布齿优化研究[J]. 石油机械,2021,49(4):44–50. doi: 10.16082/j.cnki.issn.1001-4578.2021.04.006 ZHANG Quanli, CAO Tong, HOU Fuxiang, et al. Cutter layout optimization of reamer based on zoning method[J]. China Petroleum Machinery, 2021, 49(4): 44–50. doi: 10.16082/j.cnki.issn.1001-4578.2021.04.006
[3] 祝效华,李明月,戴黎明. 领扩眼钻具间钻铤数量对随钻扩眼钻进特性的影响研究[J]. 振动与冲击,2019,38(15):42–48. ZHU Xiaohua, LI Mingyue, DAI Liming. Effects of number of drill collars between pilot bit and reamer on drilling performance of reaming while drilling[J]. Journal of Vibration and Shock, 2019, 38(15): 42–48.
[4] 崔国杰,谢荣斌,韩亮,等. 随钻水力扩眼工具在渤海自营油田的成功应用[J]. 中国海上油气,2016,28(3):115–120. CUI Guojie, XIE Rongbin, HAN Liang, et al. Application of tools of hydraulic reaming while drilling in the proprietary oilfield in Bohai Sea[J]. China Offshore Oil and Gas, 2016, 28(3): 115–120.
[5] 王德贵,吴小雄,王小红,等. 液压随钻扩眼器的研制与典型应用[J]. 机械工程师,2019(5):127–129. doi: 10.3969/j.issn.1002-2333.2019.05.044 WANG Degui, WU Xiaoxiong, WANG Xiaohong, et al. Development and application of hydraulic underreamers[J]. Mechanical Engineer, 2019(5): 127–129. doi: 10.3969/j.issn.1002-2333.2019.05.044
[6] 卿山盟,陈颖,周威. 新型液压随钻扩眼器的研制[J]. 机械研究与应用,2015,28(1):99–101. doi: 10.3969/j.issn.1007-4414.2015.01.034 QING Shanmeng, CHEN Ying, ZHOU Wei. Research on a new-pattern hydraulic pressure reamer[J]. Mechanical Research & Application, 2015, 28(1): 99–101. doi: 10.3969/j.issn.1007-4414.2015.01.034
[7] 李琴,傅文韬,黄志强,等. 硬地层单牙轮–PDC钻扩联合钻头破岩特性[J]. 中国机械工程,2019,30(22):2683–2690. doi: 10.3969/j.issn.1004-132X.2019.22.006 LI Qin, FU Wentao, HUANG Zhiqiang, et al. Rock breaking characteristics of a single cone-PDC combined drill bit in hard forma-tion[J]. China Mechanical Engineering, 2019, 30(22): 2683–2690. doi: 10.3969/j.issn.1004-132X.2019.22.006
[8] MANCINI S, HITCHCOCK G R, OPSAHL J, et al. Drill string vibration mitigation during simultaneous drilling and hole enlargement[R]. SPE 119260, 2009.
[9] VILA P, DHAHER K S, MILLER G C, et al. Successful hole enlargement while drilling in deepwater offshore Brazil[R]. OTC 22637, 2011.
[10] 左凯,朱益辉,吴占民,等. 液压扩眼器设计及井下试验验证[J]. 石油机械,2013,41(12):14–17. ZUO Kai, ZHU Yihui, WU Zhanmin, et al. Design and downhole test verification of hydraulic reamer[J]. China Petroleum Machinery, 2013, 41(12): 14–17.
[11] 余荣华,袁鹏斌. 随钻扩眼技术研究进展[J]. 石油机械,2016,44(8):6–10. doi: 10.16082/j.cnki.issn.1001-4578.2016.08.002 YU Ronghua, YUAN Pengbin. Advances in reaming while drilling technology[J]. China Petroleum Machinery, 2016, 44(8): 6–10. doi: 10.16082/j.cnki.issn.1001-4578.2016.08.002
[12] 陈红,杨兰田,刘晓艳,等. 塔河油田盐膏层井段随钻扩孔技术[J]. 石油钻探技术,2004,32(3):15–17. doi: 10.3969/j.issn.1001-0890.2004.03.005 CHEN Hong, YANG Lantian, LIU Xiaoyan, et al. Reaming while drilling technology for salt-gypsum intervals in Tahe Oilfield[J]. Petroleum Drilling Techniques, 2004, 32(3): 15–17. doi: 10.3969/j.issn.1001-0890.2004.03.005
[13] 冯定, 杨行, 孙巧雷, 等. 一种扩眼外径可调的液压式随钻扩眼装置: CN201711264284.5[P]. 2018-03-27. FENG Ding, YANG Hang, SUN Qiaolei, et al. Hydraulic while-drilling reaming device with reaming outer diameter adjusting function: CN201711264284.5[P]. 2018-03-27.
[14] XU Jie, CHEN Xuyue, DU Xu, et al. A method for selecting the correct reamer and bit combination in reaming while drilling[R]. ARMA-2020−1232, 2020.
[15] 张佳伟,纪国栋,郭卫红,等. 随钻扩眼钻具组合与钻井参数优化研究[J]. 石油机械,2021,49(2):22–27. doi: 10.16082/j.cnki.issn.1001-4578.2021.02.004 ZHANG Jiawei, JI Guodong, GUO Weihong, et al. Study on bottom hole assembly and drilling parameter optimization for reaming while drilling[J]. China Petroleum Machinery, 2021, 49(2): 22–27. doi: 10.16082/j.cnki.issn.1001-4578.2021.02.004
[16] 管志川,魏文忠,夏焱. 随钻扩眼工具井底钻压分配的实验研究[J]. 中国石油大学学报(自然科学版),2007,31(6):44–47. GUAN Zhichuan, WEI Wenzhong, XIA Yan. Experimental research on ratio of weight on bit for reaming while drilling tools[J]. Journal of China University of Petroleum(Edition of Natural Science), 2007, 31(6): 44–47.
[17] 马汝涛,郑岩,纪友哲,等. 随钻扩眼钻压分配的双因素计算方法[J]. 石油机械,2012,40(1):26–28. doi: 10.16082/j.cnki.issn.1001-4578.2012.01.010 MA Rutao, ZHENG Yan, JI Youzhe, et al. The double-factor method for calculation of the bit weight distribution in reaming while drilling[J]. China Petroleum Machinery, 2012, 40(1): 26–28. doi: 10.16082/j.cnki.issn.1001-4578.2012.01.010
-
