Research and Field Test on Life-Long Water Control Completion Technology in Offshore Oilfields
-

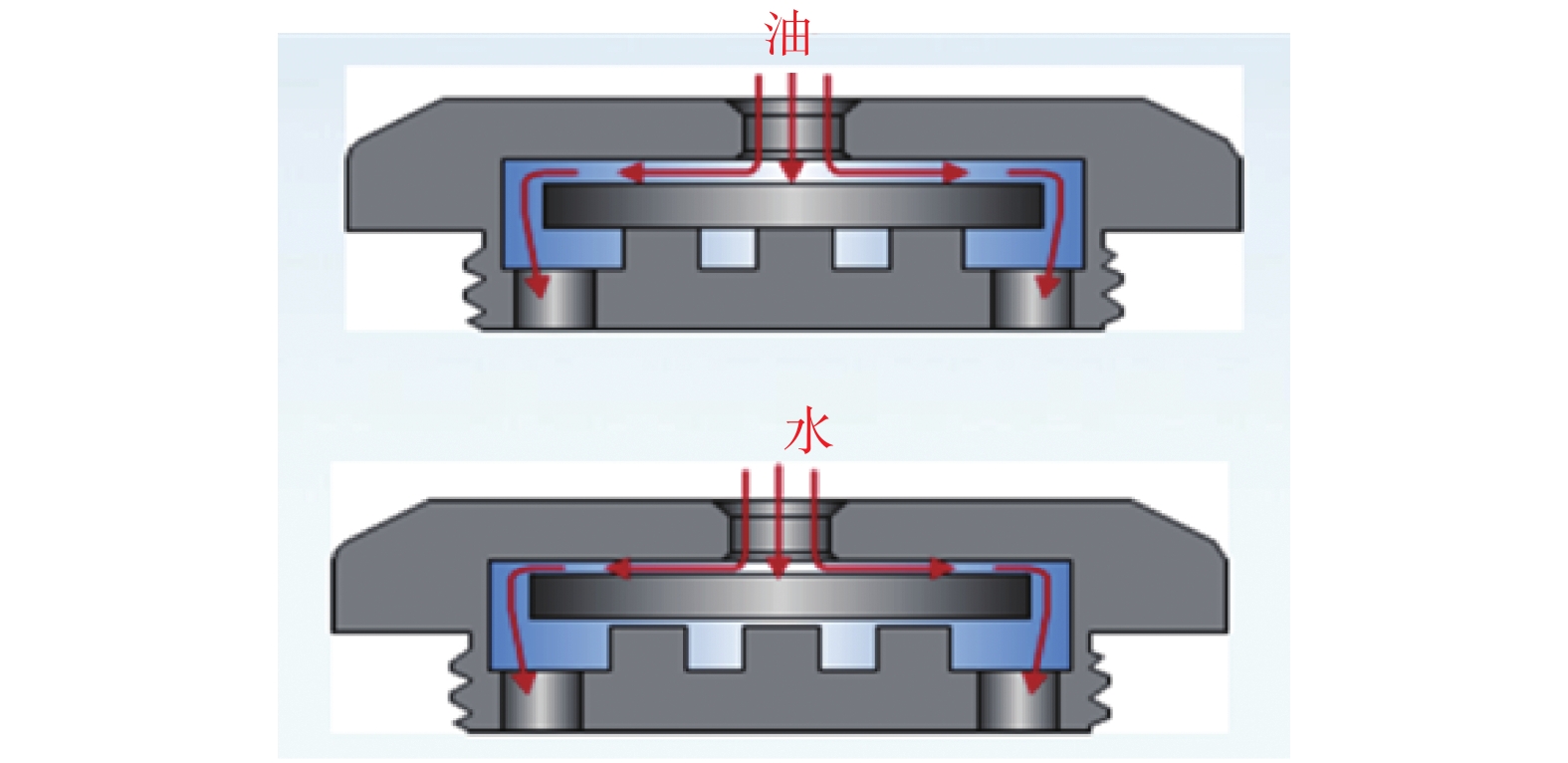

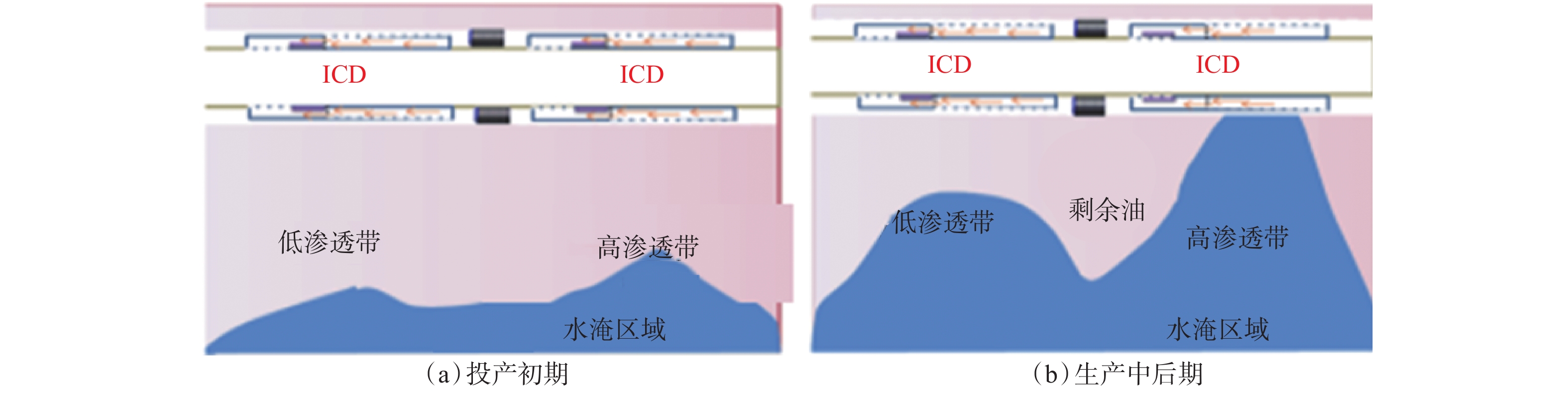

摘要: 为了解决海上油田砂岩底水油藏水平井开发过程中底水快速锥进的问题，在分析流入控制装置（ICD）和自动流入控制装置（AICD）控水完井技术的优势与不足的基础上，研究了海上油田全寿命控水完井技术。该技术结合ICD和AICD控水完井技术的优势，在油井投产初期通过抑制高渗段来均衡水平井水平段供液剖面，投产中后期通过“自动控制流量”来抑制水平段高含水段出液，实现自动控水，起到延缓油井含水率上升的作用。海上油田全寿命控水完井技术在X油田H油藏W1井进行了现场试验，与同油藏生产井对比发现，该技术对水平井开发过程中的含水率上升有抑制作用，值得扩大规模试验。Abstract: Aiming at solving the problem of rapid coning of bottom water during the development by horizontal wells in the sandstone bottom water reservoir of offshore oilfields, a life-long water control completion technology in offshore oilfields was studied based on the analysis of the advantages and disadvantages of inflow control device (ICD) and autonomousinflow control device (AICD). The technology combined the advantages of ICD and AICD. During the early production period, the high permeability section was constrained to balance the liquid supply profile in the horizontal section of the horizontal wells. In the later periods, the "autonomous flow rate control" was used to constrain the liquid flow of the horizontal high water content section, which could slow down the increase in water cut by autonomous water control. The technology was tested on-site in Well W1 in Reservoir H of Oilfield X. By comparing with production wells in the same reservoir, it is shown that the life-long water control completion technology can restrain the increase of water cut in the development by horizontal wells and is worthy of expanding the test scale.
-
-
![]()

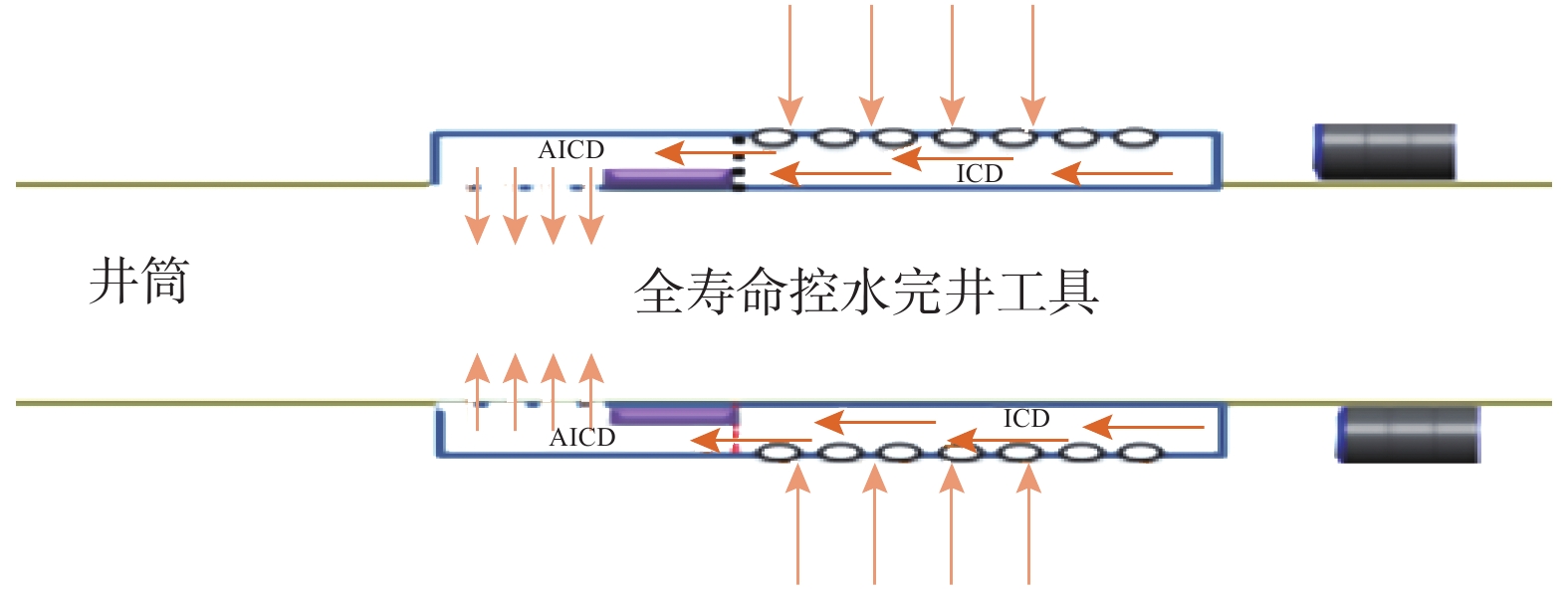

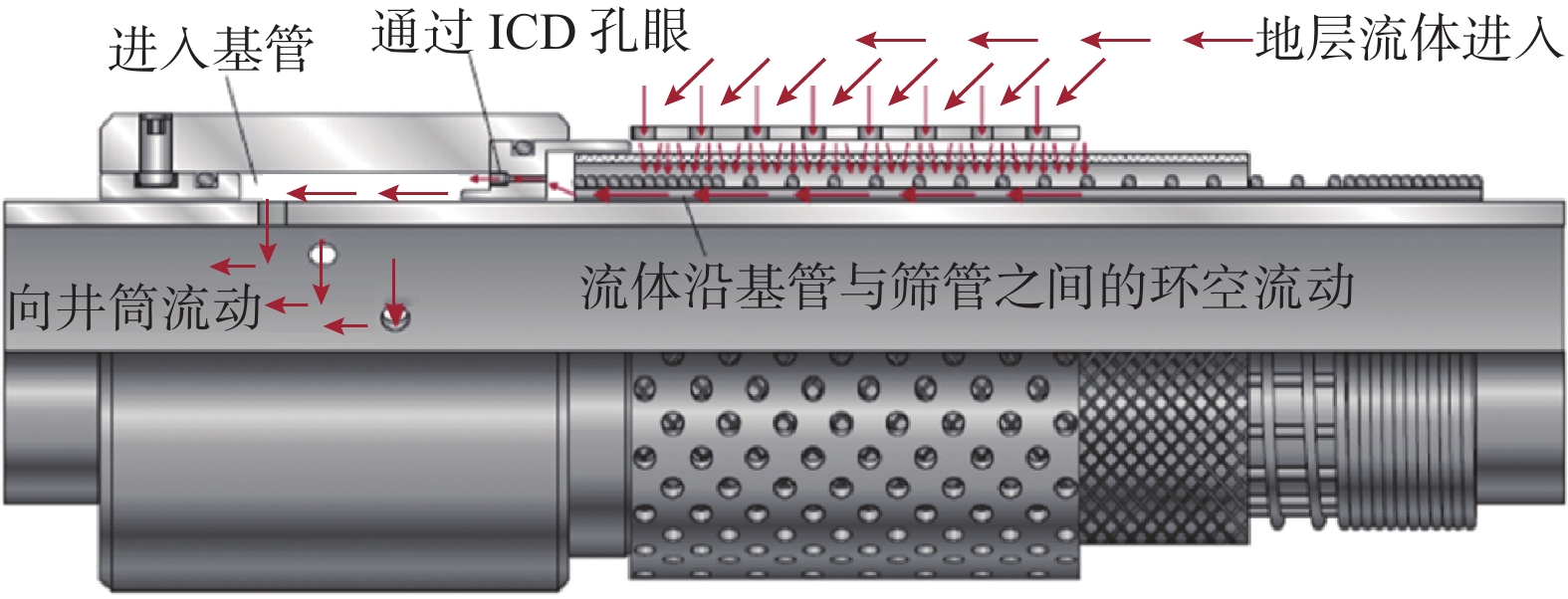

图 5 流体流经全寿命控水完井工具示意
Figure 5. Formation fluid flow through life-long water control completion tool
![]()
图 6 地层流体在全寿命控水完井工具筛管外的流动示意
Figure 6. Formation fluid flow out of life-long water control completion tool sieve tube
![]()

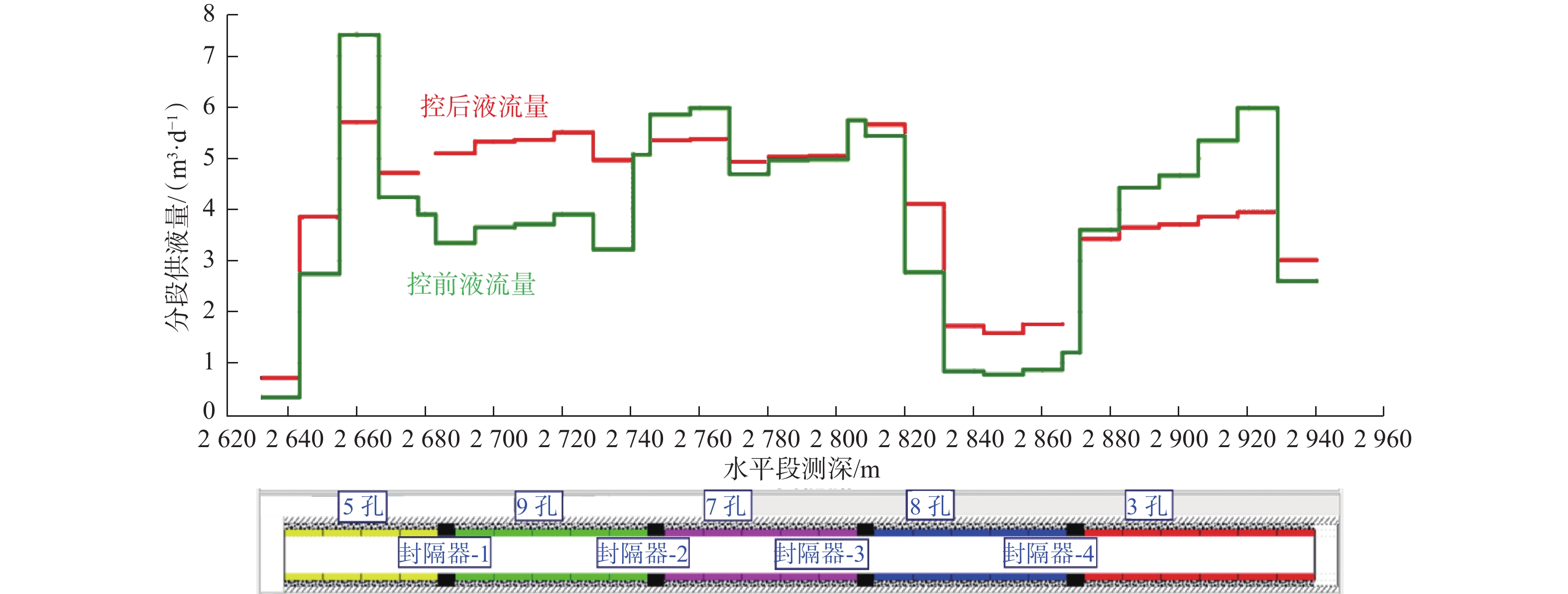

图 7 W1井水平段各段优化前后供液剖面对比
Figure 7. Comparison of liquid supply profile of Well W1 before and after optimization of each horizontal section
![]()

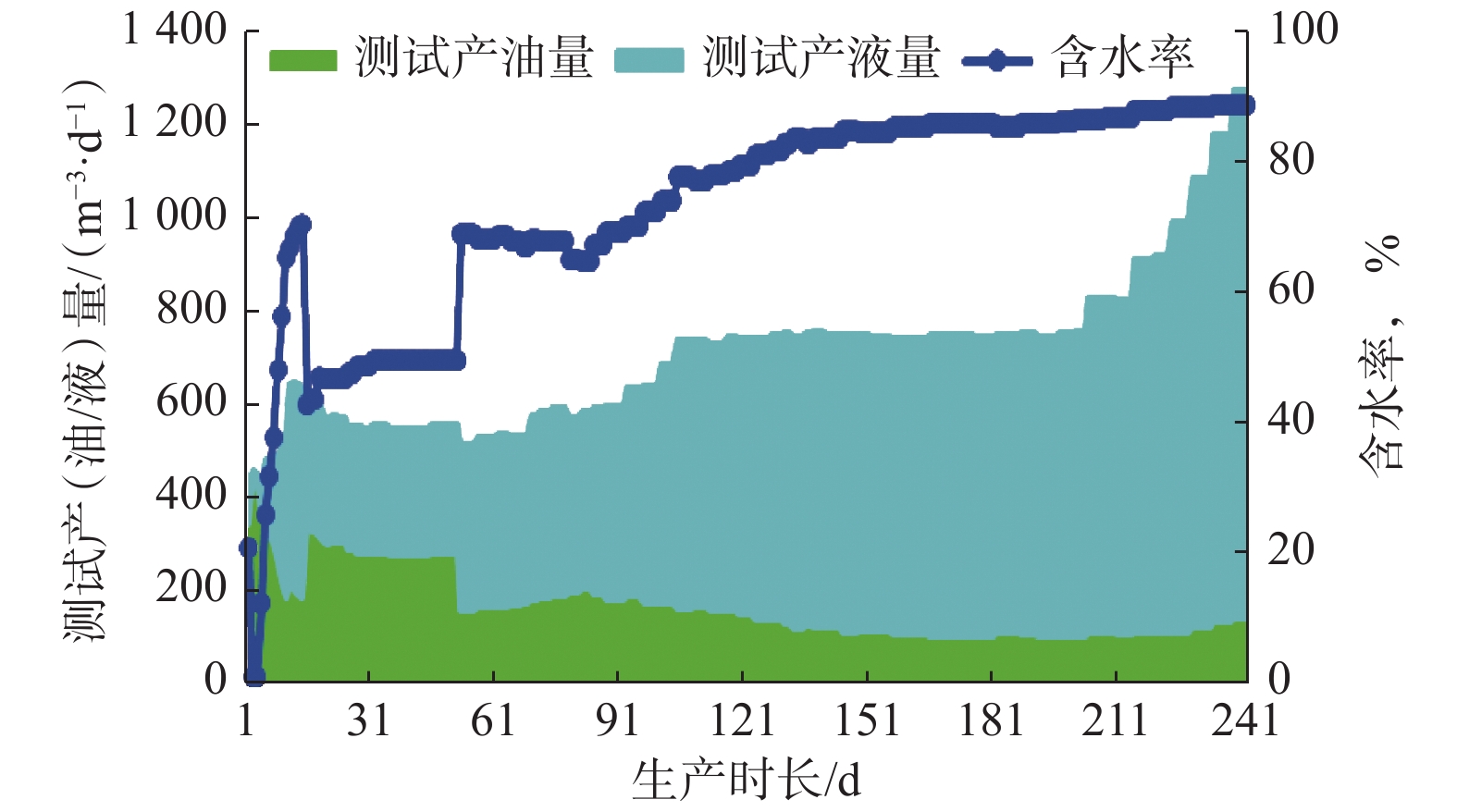

图 8 W1井投产8个月内的生产曲线
Figure 8. Production performance curve of Well W1 within eight months after the start of production
![]()

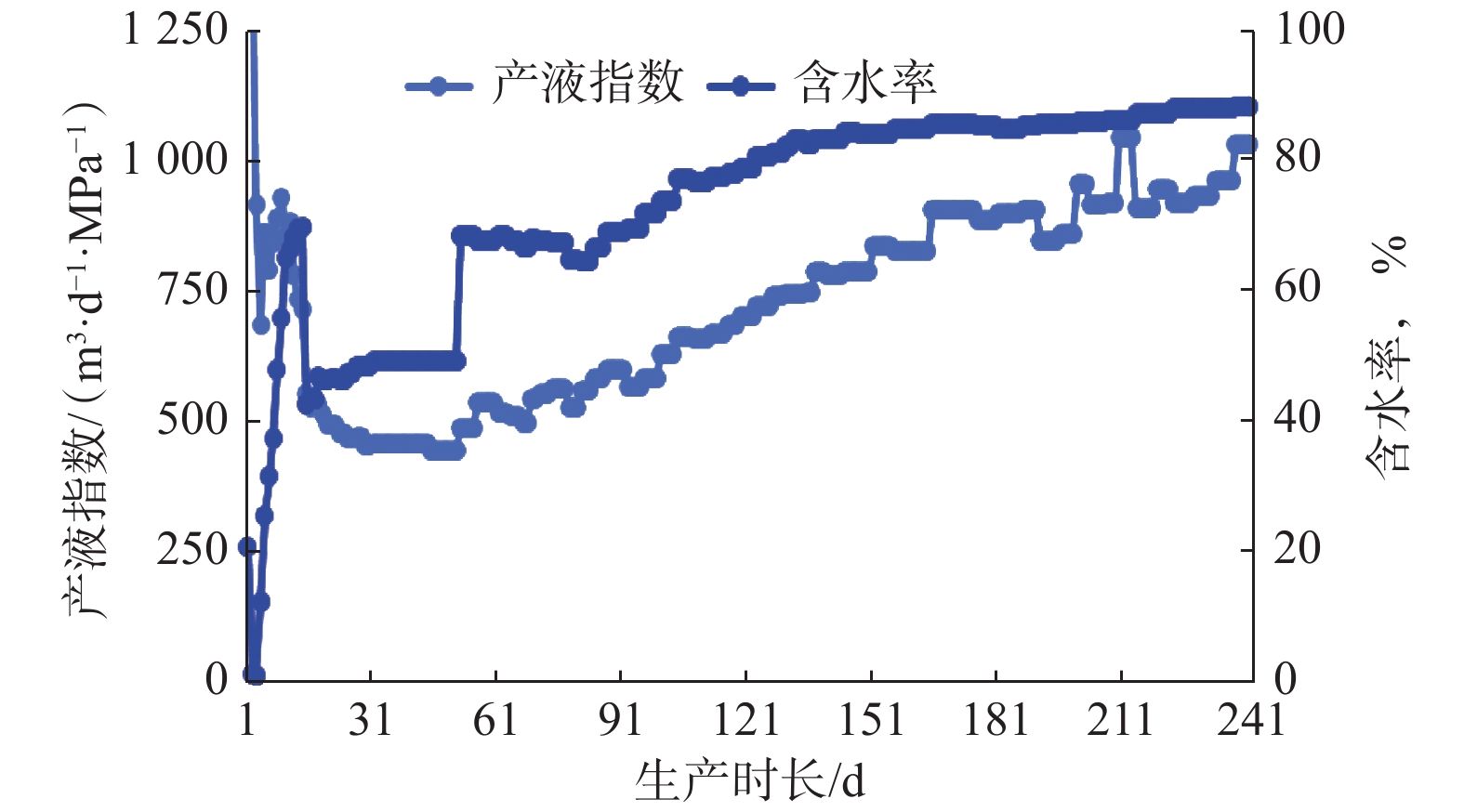

图 9 W1井投产8个月内的生产指标曲线
Figure 9. Production index curve of Well W1 within eight months after the start of production
![]()

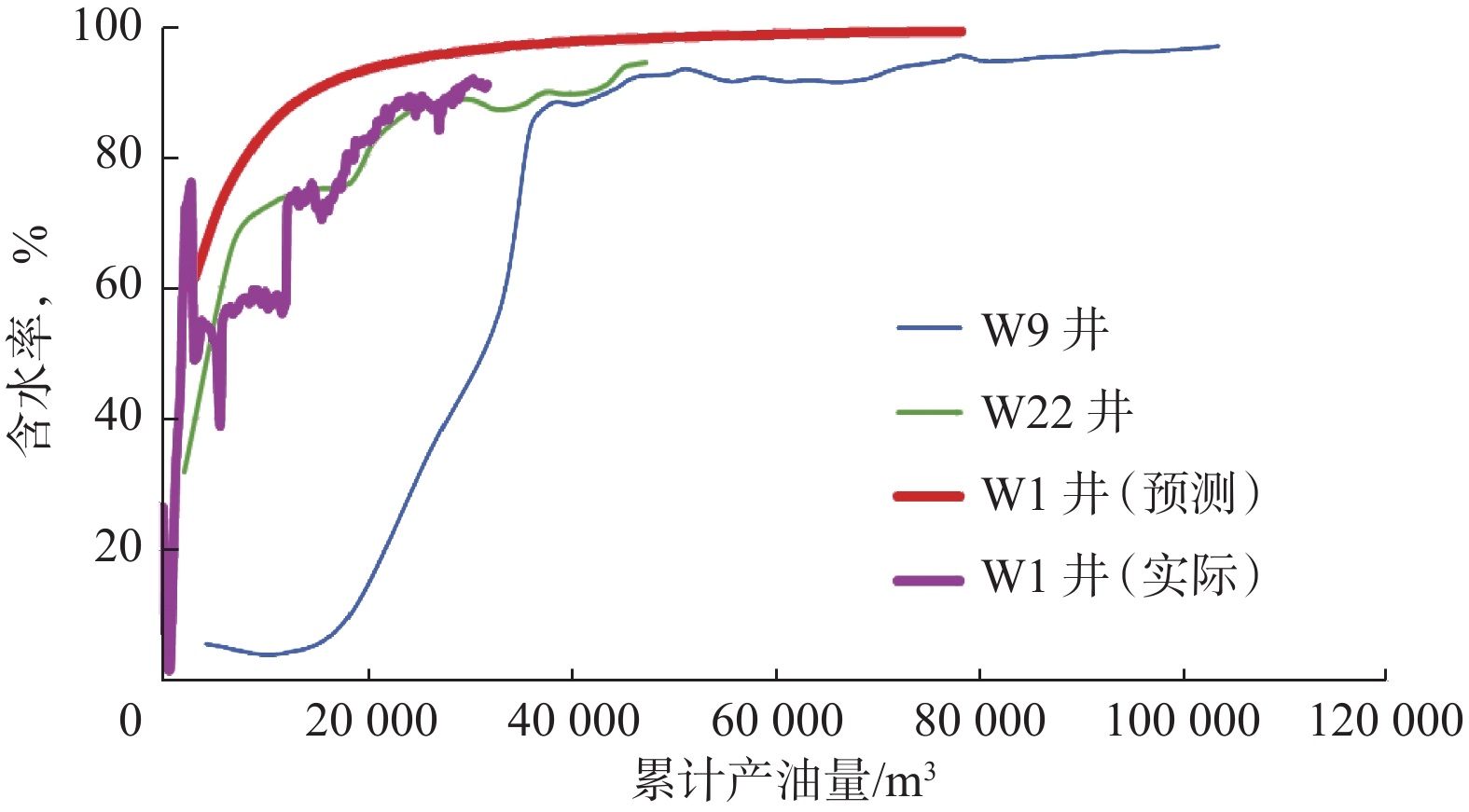

图 10 W1井、W9井和W22井累计产油量与含水率的关系曲线
Figure 10. Relationship curves for cumulative oil production and water cut of Well W1,W9, and W22
表 1 W1井全寿命控水完井方案
Table 1 Life-long water control completion plan for Well W1
水平井分段 起始深度/ m 控水工具数量 控水工具开孔数 第一段 2 632.31 4 5 封隔器-1 2 678.02 第二段 2 683.17 5 9 封隔器-2 2 740.39 第三段 2 745.54 5 7 封隔器-3 2 802.73 第四段 2 807.88 5 8 封隔器-4 2 865.34 第五段 2 870.51 6 3
