Key Technologies for ROP Improvement in Exploratory Well Yangliu-1
-
摘要: 杨柳1井为普光气田周边区块的一口预探井，设计井深5 850.00 m，因陆相地层软硬交错、倾角大、须家河组研磨性强和裂缝性地层发育等问题，导致钻井过程中存在提速困难、井身质量控制难度大、钻井液漏失量大等技术难题。为此，根据该井地层岩性特征，优选应用了泡沫/空气钻井技术以提高上部陆相地层机械钻速、“螺杆钻具+复合钻头”钻井提速技术以提高须家河组高研磨性地层机械钻速、预弯曲动力学防斜打快技术以提高井身质量、裂缝性地层防漏堵漏技术以提高堵漏成功率，确保该井顺利钻至井深5 890.00 m完钻，平均机械钻速2.77 m/h，与邻井相比有较大幅度的提高，且未出现严重的井下故障，减少了钻头使用量，缩短了堵漏时间，取得了良好的经济效益。杨柳1井实现了钻探目的，完善了该区块的地质资料，为今后该区块的钻井积累了提速经验。Abstract: Well Yangliu-1 is an exploratory well in the surrounding blocks of Puguang Gas Field, with a design well depth of 5 850.00 m. Problems such as interlaced soft and hard continental strata, large dip angles, strong abrasiveness of the Xujiahe Formation, fractured strata were encountered, leading to difficulties in improving the ROP(rate of penetration), hard quality control of the casing program, and serious lost circulation during the drilling process. According to the lithological characteristics of strata in the well area, the air/foam drilling technology was selected to improve the ROP of upper continental strata; the PDM(positive displacement motor) + compound bit technology was employed to improve the ROP in the highly abrasive strata of the Xujiahe Formation; the pre-bending dynamic inclining prevention and fast drilling technology was adopted to enhance casing program quality; the lost circulation prevention and control technology was applied in fractured strata for a higher success rate of lost circulation control. As a result, the well was successfully drilled to the depth of 5 890.00 m, with an average ROP of 2.77 m/h, which was greatly enhanced compared with that of adjoining wells. This process had no serious downhole failures, which reduced the bit usage, shortened the time for lost circulation control, and thus achieved good economic benefits. The drilling goal has been achieved in Well Yangliu-1, which enriches the geological data of this block and provides ROP improvement experience for the drilling in this block in the future.
-
-
![]()

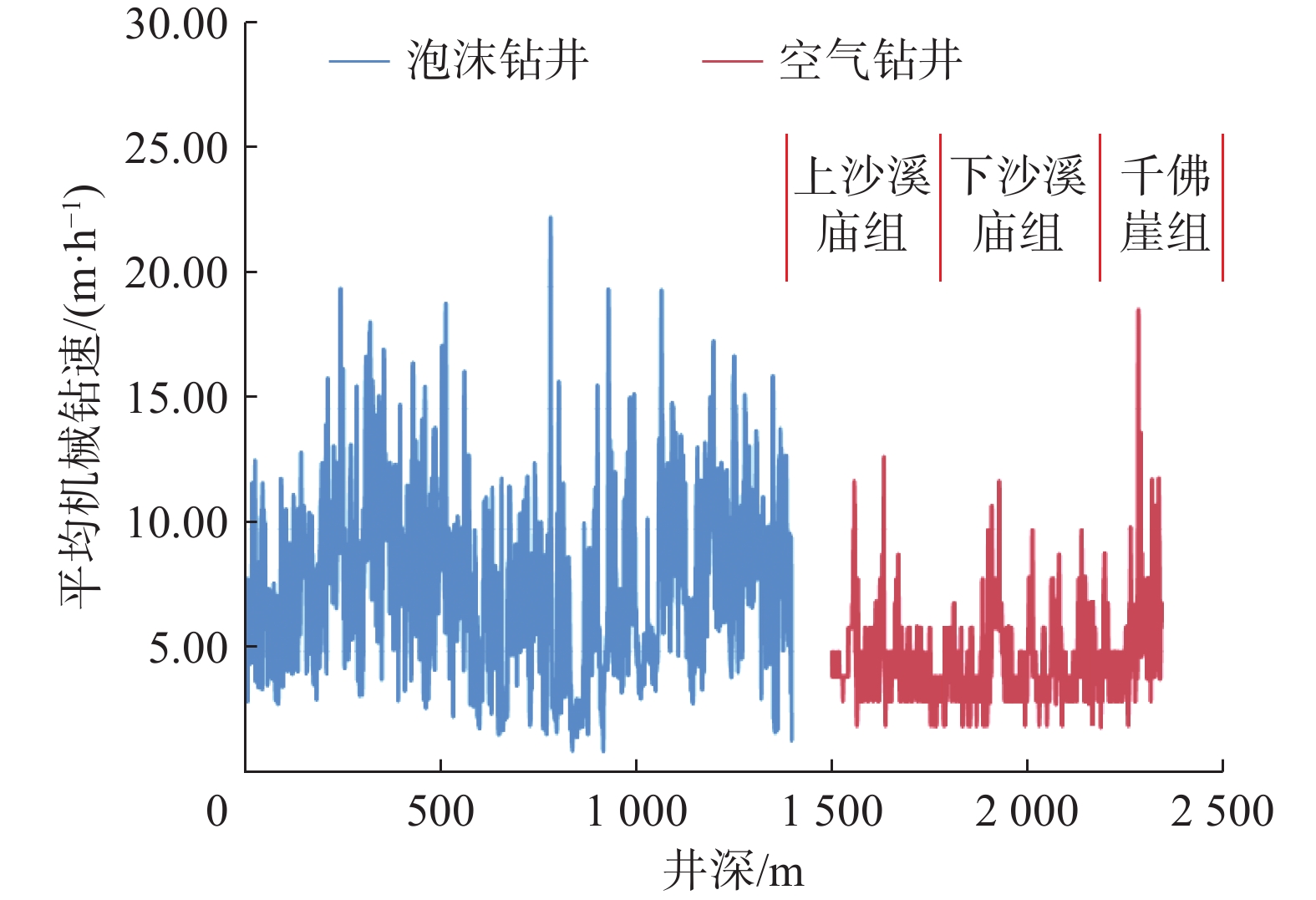

图 1 杨柳1井泡沫/空气钻井平均机械钻速曲线
Figure 1. Average ROP curves of air/foam drilling in Well Yangliu-1
-
[1] 马永生,蔡勋育,赵培荣,等. 深层超深层碳酸盐岩优质储层发育机理和 “三元控储” 模式: 以四川普光气田为例[J]. 地质学报,2010,84(8):1087–1094. MA Yongsheng, CAI Xunyu, ZHAO Peirong, et al. Formation mechanism of deep-buried carbonate reservoir and its model of three-element controlling reservoir: a case study from the Puguang Oilfield in Sichuan[J]. Acta Geologica Sinica, 2010, 84(8): 1087–1094.
[2] 蒋小琼,管宏林,郑和荣,等. 四川盆地普光气田飞仙关组白云岩储层成因探讨[J]. 石油实验地质,2014,36(3):332–336, 345. doi: 10.11781/sysydz201403332 JIANG Xiaoqiong, GUAN Honglin, ZHENG Herong, et al. Discussion on origin of dolomite reservoirs in Feixianguan Formation, Puguang Gas Field, Sichuan Basin[J]. Petroleum Geology and Experiment, 2014, 36(3): 332–336, 345. doi: 10.11781/sysydz201403332
[3] 陈明,黄志远,马庆涛,等. 马深1井钻井工程设计与施工[J]. 石油钻探技术,2017,45(4):15–20. CHEN Ming, HUANG Zhiyuan, MA Qingtao, et al. Design and drilling of Well Mashen 1[J]. Petroleum Drilling Techniques, 2017, 45(4): 15–20.
[4] 张金成,张东清,张新军. 元坝地区超深井钻井提速难点与技术对策[J]. 石油钻探技术,2011,39(6):6–10. doi: 10.3969/j.issn.1001-0890.2011.06.002 ZHANG Jincheng, ZHANG Dongqing, ZHANG Xinjun. Difficulties of improving rate of penetration and its technical solutions in Yuanba Area[J]. Petroleum Drilling Techniques, 2011, 39(6): 6–10. doi: 10.3969/j.issn.1001-0890.2011.06.002
[5] 闫光庆,张金成. 中国石化超深井钻井技术现状与发展建议[J]. 石油钻探技术,2013,41(2):1–6. doi: 10.3969/j.issn.1001-0890.2013.02.001 YAN Guangqing, ZHANG Jincheng. Status and proposal of the Sinopec ultra-deep drilling technology[J]. Petroleum Drilling Techniques, 2013, 41(2): 1–6. doi: 10.3969/j.issn.1001-0890.2013.02.001
[6] 于文平. 我国深井钻井技术发展的难点及对策[J]. 中外能源,2010,15(9):52–55. YU Wenping. Difficulty and countermeasures for the advance of the deep well drilling technology in China[J]. Sino-Global Energy, 2010, 15(9): 52–55.
[7] 侯树刚,刘新义,杨玉坤. 气体钻井技术在川东北地区的应用[J]. 石油钻探技术,2008,36(3):24–28. doi: 10.3969/j.issn.1001-0890.2008.03.006 HOU Shugang, LIU Xinyi, YANG Yukun. Application of gas drilling technology in Northeast Sichuan Area[J]. Petroleum Drilling Techniques, 2008, 36(3): 24–28. doi: 10.3969/j.issn.1001-0890.2008.03.006
[8] 董明键,肖新磊,边培明. 复合钻井技术在元坝地区陆相地层中的应用[J]. 石油钻探技术,2010,38(4):38–40. DONG Mingjian, XIAO Xinlei, BIAN Peiming. Application of compound drilling technology in terrestrial formation in Yuanba Area[J]. Petroleum Drilling Techniques, 2010, 38(4): 38–40.
[9] 王文龙,赵勤,李子丰,等. 普光气田气体钻井钻具失效原因分析及预防措施[J]. 石油钻采工艺,2008,30(5):38–43. doi: 10.3969/j.issn.1000-7393.2008.05.009 WANG Wenlong, ZHAO Qin, LI Zifeng, et al. Cause analysis and precautions of drilling tools failure during gas drilling in Puguang Gas Field[J]. Oil Drilling & Production Technology, 2008, 30(5): 38–43. doi: 10.3969/j.issn.1000-7393.2008.05.009
[10] 朱宽亮,周岩,胡中志. PDC-牙轮复合钻头在南堡油田大斜度井的应用[J]. 石油钻探技术,2017,45(6):60–64. ZHU Kuanliang, ZHOU Yan, HU Zhongzhi. Application of a PDC-roller hybrid bit in highly-deviated wells of the Nanpu Oilfield[J]. Petroleum Drilling Techniques, 2017, 45(6): 60–64.
[11] 况雨春,魏莉鸿,秦超. 牙轮-PDC复合钻头井底流场CFD模拟研究[J]. 石油机械,2013,41(6):6–9. doi: 10.3969/j.issn.1001-4578.2013.06.002 KUANG Yuchun, WEI Lihong, QIN Chao. Research on bottomhole flow field CFD simulation of composite roller-PDC bit[J]. China Petroleum Machinery, 2013, 41(6): 6–9. doi: 10.3969/j.issn.1001-4578.2013.06.002
[12] 邓柯,刘殿琛,李宬晓. 预弯曲动力学井斜控制技术在长宁构造气体钻井中的应用[J]. 钻采工艺,2020,43(2):38–40. doi: 10.3969/J.ISSN.1006-768X.2020.02.10 DENG Ke, LIU Dianchen, LI Chengxiao. Application of pre-bending dynamic well inclination control technology in gas drilling in Changnig Structure[J]. Drilling & Production Technology, 2020, 43(2): 38–40. doi: 10.3969/J.ISSN.1006-768X.2020.02.10
[13] 汝大军,李立昌,陆红,等. 预弯曲钻具组合特性分析及其应用[J]. 石油钻采工艺,2003,25(4):14–16. doi: 10.3969/j.issn.1000-7393.2003.04.004 RU Dajun, LI Lichang, LU Hong, et al. Property evaluation on pre-bending BHA and its application[J]. Oil Drilling & Production Technology, 2003, 25(4): 14–16. doi: 10.3969/j.issn.1000-7393.2003.04.004
[14] 狄勤丰,吴玉禄,石向前. 预弯曲动力学防斜打快技术初探[J]. 石油学报,2003,24(3):86–89. doi: 10.3321/j.issn:0253-2697.2003.03.019 DI Qinfeng, WU Yulu, SHI Xiangqian. Primary research on vertical and fast drilling technology with pre-bending dynamic method[J]. Acta Petrolei Sinica, 2003, 24(3): 86–89. doi: 10.3321/j.issn:0253-2697.2003.03.019
[15] 何胡军,曾大乾,毕建霞,等. 普光气田碳酸盐岩储层裂缝的成因及其控制因素[J]. 海相油气地质,2014,19(4):65–72. doi: 10.3969/j.issn.1672-9854.2014.04.010 HE Hujun, ZENG Daqian, BI Jianxia, et al. Genesis and control factors of fractures in carbonate reservoirs in Puguang Gas Field[J]. Marine Origin Petroleum Geology, 2014, 19(4): 65–72. doi: 10.3969/j.issn.1672-9854.2014.04.010
[16] 臧艳彬,王瑞和,张锐. 川东北地区钻井漏失及堵漏措施现状分析[J]. 石油钻探技术,2011,39(2):60–64. doi: 10.3969/j.issn.1001-0890.2011.02.011 ZANG Yanbin, WANG Ruihe, ZHANG Rui. Current situation analysis of circulation lost and measures in Northeast Sichuan Basin[J]. Petroleum Drilling Techniques, 2011, 39(2): 60–64. doi: 10.3969/j.issn.1001-0890.2011.02.011
[17] 张杜杰,金军斌,陈瑜,等. 深部裂缝性致密储层随钻堵漏材料补充时机研究[J]. 特种油气藏,2020,27(6):158–164. doi: 10.3969/j.issn.1006-6535.2020.06.023 ZHANG Dujie, JIN Junbin, CHEN Yu, et al. Study on the supplement timing of leakage stoppage materials while drilling for deep fractured tight reservoirs[J]. Special Oil & Gas Reservoirs, 2020, 27(6): 158–164. doi: 10.3969/j.issn.1006-6535.2020.06.023
-
