Performance Evaluation and Field Application of Self-Consolidating Plugging Agents
-

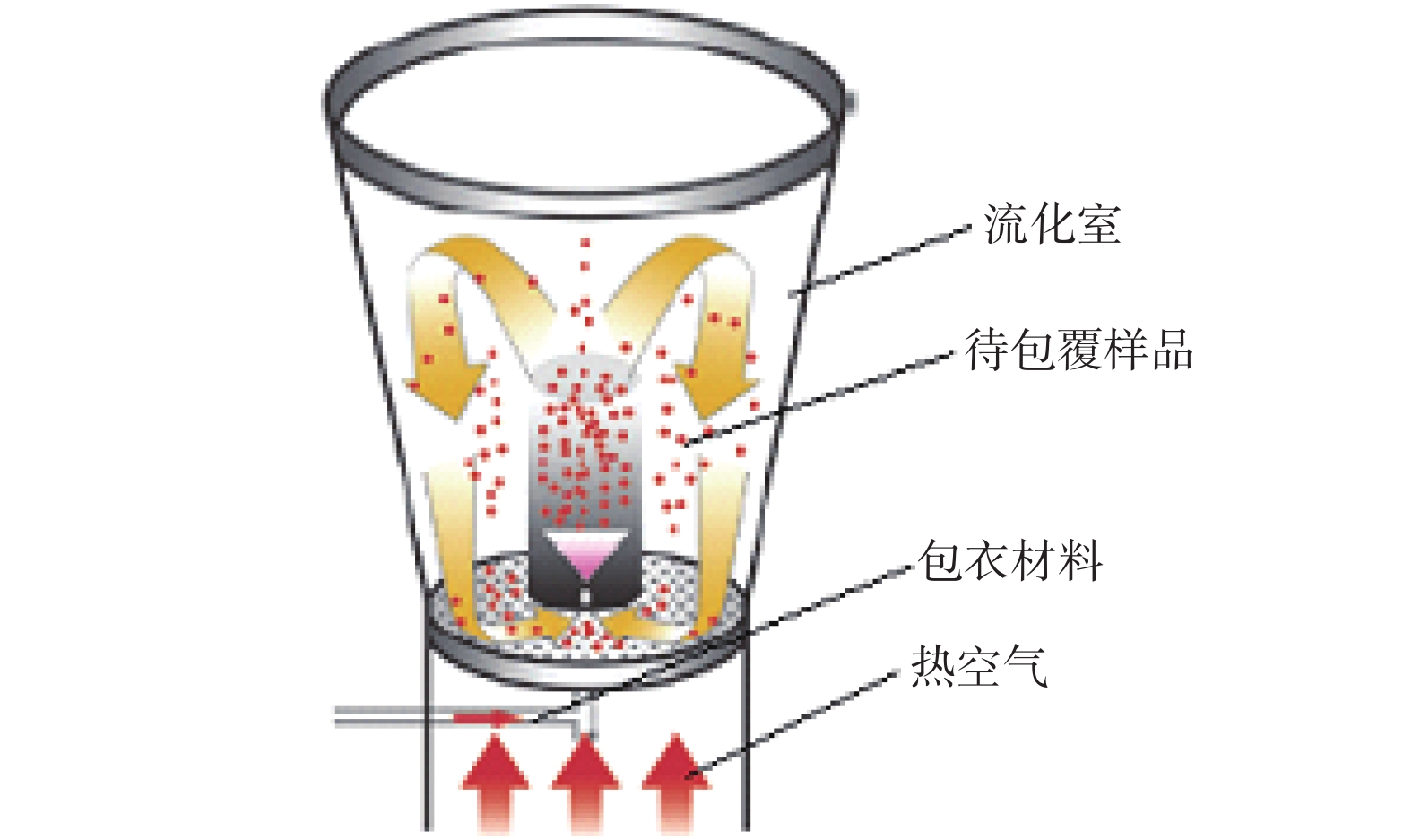

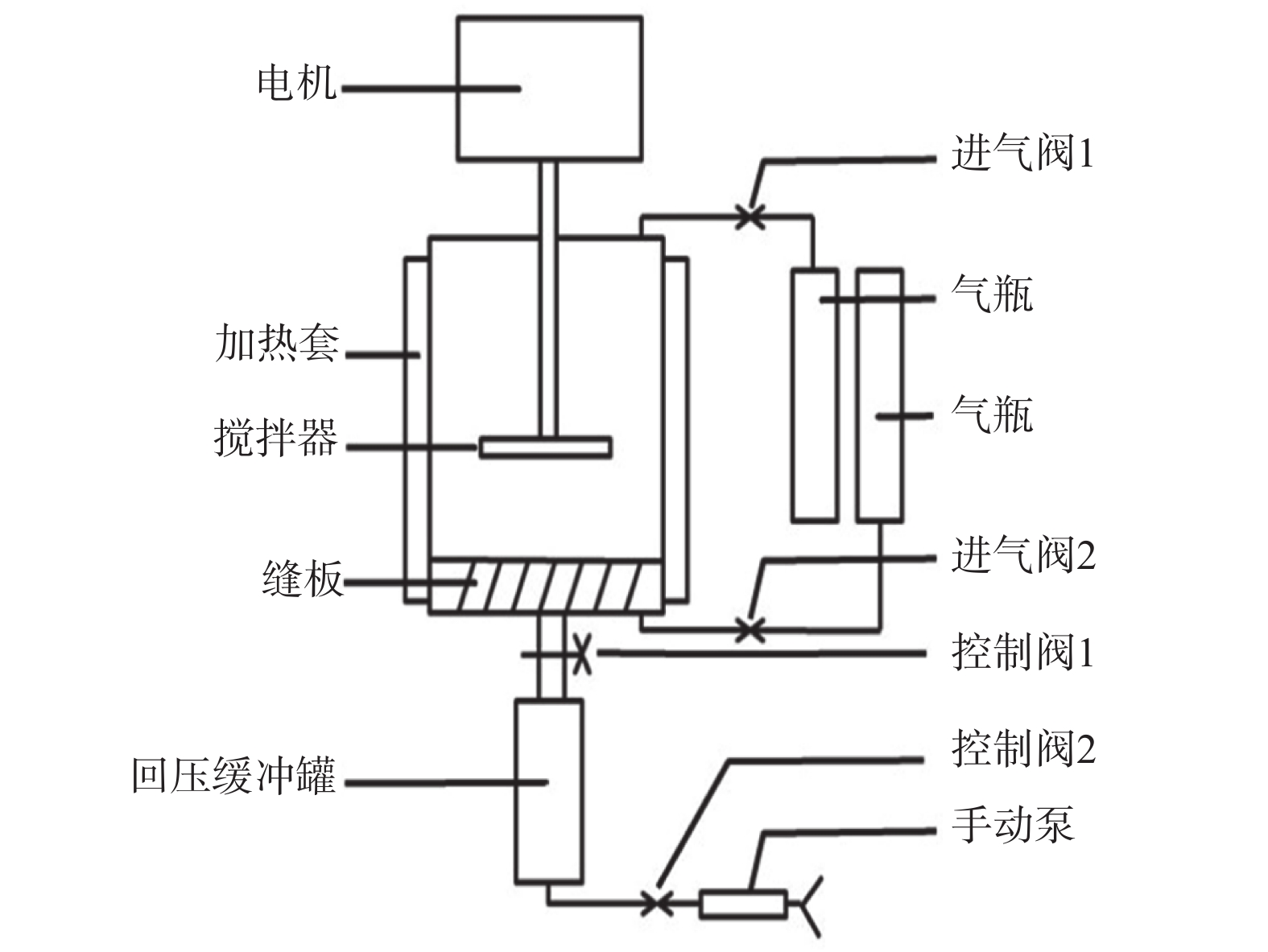

摘要: 针对常规复合堵漏剂堵漏成功率低的问题，开展了自固结堵漏剂研究。采用流化包衣机在堵漏剂外表面涂覆可在井下固结的环氧胶黏剂，流化包衣在井下温度条件下固结，从而提高堵漏剂的井下封堵强度。调节流化包衣机的进风口温度50～100 ℃、出风口温度25～40 ℃、喷枪速率0.5～2.0 L/h，可实现喷雾、包衣、干燥一体完成。室内高温堵漏试验表明，自固结堵漏剂具有较好的抗钻井液扰动和抗负压抽汲作用，通过选择环氧树脂的型号、固化剂和促进剂DL-1的加量，能够调节自固结堵漏剂的井下固结时间；110 ℃温度下，堵漏剂在2 h以后开始初步固结，强度逐渐增加，15 h时抗压强度达到4.6 MPa。堵漏层扫描电镜图片显示，涂覆层在温度升高过程中发生了软化和固结，固结后材料之间结合紧密。研究结果表明，自固结堵漏剂能够大幅提高严重裂缝性漏失的堵漏成功率，可为实现漏失层的有效封堵提供技术支撑。Abstract: In light of the low success rate of plugging by conventional compound plugging agents, self-consolidating plugging agents were studied. A fluidized coating equipment was adopted to coat the outer surface of the plugging agents with a layer of epoxy adhesive that can be consolidated at downhole temperature, so as to increase the underground plugging strength of plugging agents. By adjusting the inlet air temperature of the fluidized coating equipment at 50–100 °C, the air outlet temperature at 25–40 °C, and the rate of the spray gun at 0.5–2.0 L/h, the spray, coating, and drying could be achieved. The laboratory experiments of plugging at high temperature showed that the developed plugging agents could resist the disturbance of drilling fluids and the negative-pressure suction. By selecting the specific type of epoxy resin, the dosage of curing agent and accelerator DL-1, the downhole consolidation time of the self-consolidating plugging agents could be adjusted. At 110 °C, the plugging agents began to consolidate after 2 h, and the strength increased to 4.6 MPa after 15 h. Scanning electron microscope photographs of the plugging layers showed that the coating layers were softened and then consolidated as the temperature rose, and the materials bound tightly after consolidation. The result indicated that the self-consolidating plugging agents can greatly improve the success rate of plugging in severely fractured thief zones and provide technical supports for effective plugging.
-
-
![]()

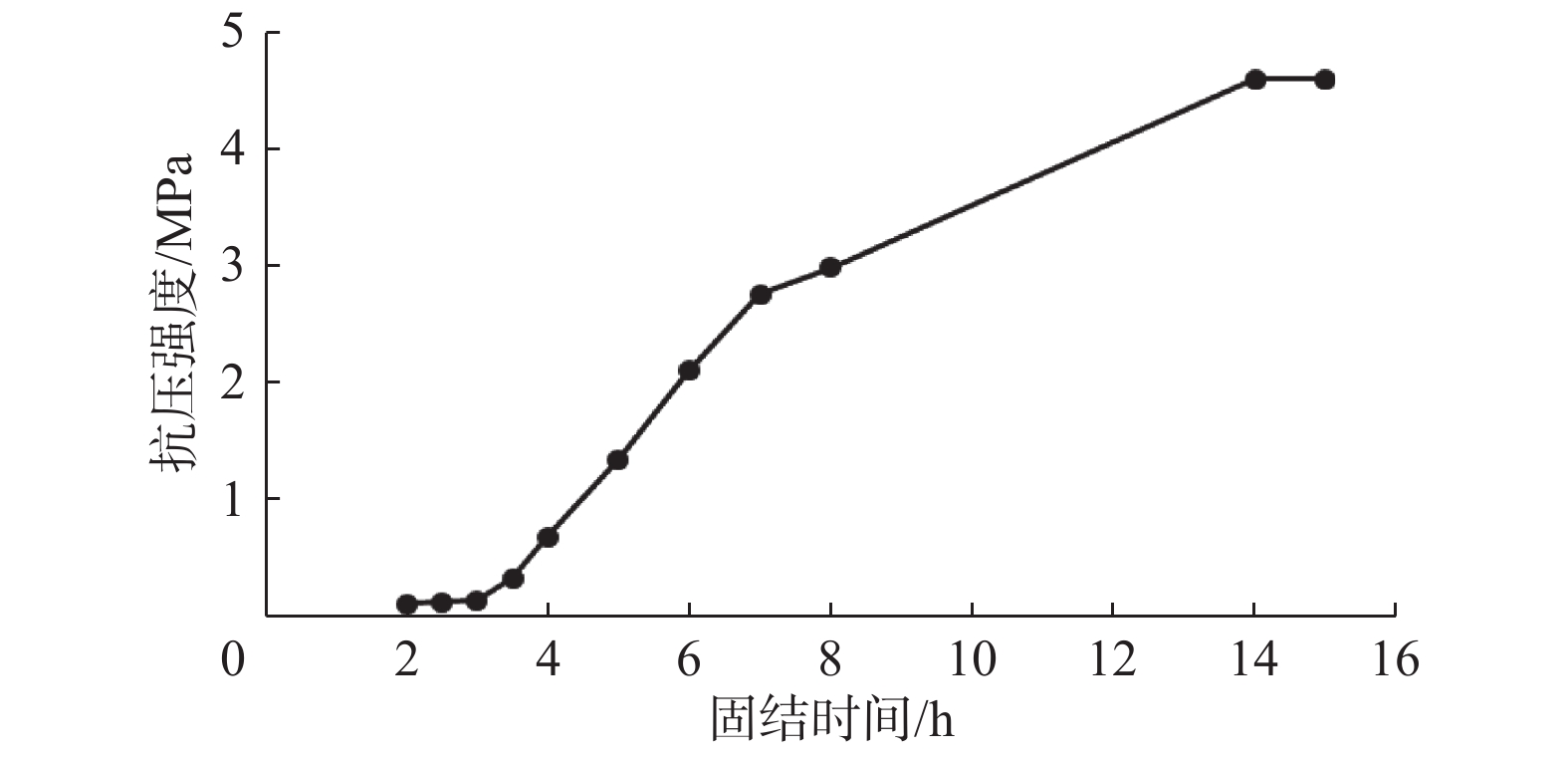

图 3 试样固结时间和抗压强度的关系
Figure 3. Relationship between the consolidation time and compressive strength of samples
![]()
图 4 110 ℃条件下堵漏试验封堵层扫描电镜照片
Figure 4. Scanning electron microscope photographs of experimental plugging layers at 110 °C
表 1 未涂覆自固结材料配方和涂覆自固结堵漏材料配方堵漏效果对比
Table 1 Comparison of plugging effect between uncoated formula and formula coated by self-consolidating plugging material
堵漏剂 缝板宽度/
mm封堵成功时
压力/MPa漏失时压力/
MPa漏失时反向
压力/MPaB 3 1.5 0.5 2.0 5 1.9 0.3 1.8 A 3 1.5 未漏失 未漏失 5 2.0 未漏失 未漏失
下载: 导出CSV
-
[1] 杨川,刘忠飞,肖勇,等. 库车山前构造高温高压储层环空密封固井技术[J]. 断块油气田,2019,26(2):264–268. YANG Chuan, LIU Zhongfei, XIAO Yong, et al. Cementing technology of annulus sealing in high-temperature and high-pressure reservoir of Kuqa Piedmont[J]. Fault-Block Oil & Gas Field, 2019, 26(2): 264–268.
[2] 鄢捷年. 钻井液工艺学[M]. 东营: 石油大学出版社, 2001: 348–360. YAN Jienian. Drilling fluid technology[M]. Dongying: Petroleum University Press, 2001: 348–360.
[3] 胜亚楠,管志川,许玉强,等. 井壁稳定问题的不确定性分析方法探讨[J]. 断块油气田,2017,24(6):847–850, 866. SHENG Yanan, GUAN Zhichuan, XU Yuqiang, et al. Discussion on uncertainty analysis method for wellbore stability[J]. Fault-Block Oil & Gas Field, 2017, 24(6): 847–850, 866.
[4] 康毅力,王凯成,许成元,等. 深井超深井钻井堵漏材料高温老化性能评价[J]. 石油学报,2019,40(2):215–223. KANG Yili, WANG Kaicheng, XU Chengyuan, et al. High-temperature aging property evaluation of lost circulation materials in deep and ultra-deep well drilling[J]. Acta Petrolei Sinica, 2019, 40(2): 215–223.
[5] 王在明,邱正松,徐加放,等. 复合堵漏中平衡区域及其在新型堵漏仪中的应用[J]. 石油学报,2007,28(1):143–145. WANG Zaiming, QIU Zhengsong, XU Jiafang, et al. Balance area of compound lost circulation control and its application in novel lost circulation simulator[J]. Acta Petrolei Sinica, 2007, 28(1): 143–145.
[6] 方俊伟,吕忠楷,何仲,等. 化学凝胶堵剂承压堵漏技术在顺北3 井的应用[J]. 钻井液与完井液,2017,34(6):13–17. FANG Junwei, LYU Zhongkai, HE Zhong, et al. Application of chemical gel LCM on Well Shunbei-3[J]. Drilling Fluid & Completion Fuild, 2017, 34(6): 13–17.
[7] 马庆坤,朱维耀,高珉,等. 可动凝胶体系渗流流变特性及其表征[J]. 石油学报,2007,28(5):85–88. MA Qingkun, ZHU Weiyao, GAO Min, et al. Characterization and rheometry of porous flow for weak gel system[J]. Acta Petrolei Sinica, 2007, 28(5): 85–88.
[8] 余婷婷,邓建民,李键,等. 纤维堵漏水泥浆的室内研究[J]. 石油钻采工艺,2007,29(4):89–91. YU Tingting, DENG Jianmin, LI Jian, et al. Laboratory research on use of fiber cement slurry to prevent lost circulation[J]. Oil Drilling & Production Technology, 2007, 29(4): 89–91.
[9] 蔡利山,张进双,苏长明. 关于合理使用承压堵漏技术指标的建议[J]. 石油钻探技术,2008,36(2):84–87. CAI Lishan, ZHANG Jinshuang, SU Changming. Suggestions about reasonable use of sealing under pressure technology[J]. Petroleum Drilling Techniques, 2008, 36(2): 84–87.
[10] 王熙. 水下胶粘剂的应用研究[D]. 西安: 西北工业大学, 2007. WANG Xi. Application of underwater adhesives[D]. Xi’an: Northwestern Polytechnical University, 2007.
[11] 李久龙,张春爱,张孝阿. 高柔韧性环氧树脂胶粘剂的制备与性能[J]. 中国胶粘剂,2016,25(12):25–29. LI Jiulong, ZHANG Chun’ai, ZHANG Xiaoa. Preparation and properties of epoxy resin adhesive with high flexibility[J]. China Adhesives, 2016, 25(12): 25–29.
[12] 胡东岚,李卉,罗迎社,等. 一种自制环氧树脂结构胶粘剂的动态黏弹性能研究[J]. 中南林业科技大学学报,2019,39(4):112–116. HU Donglan, LI Hui, LUO Yingshe, et al. Study on dynamic viscoelasticity of an epoxy resin building repair adhesive[J]. Journal of Central South University of Forestry & Technology, 2019, 39(4): 112–116.
[13] 张晶,陈婷,宋洪涛. 流化床悬浮包衣法制备吗替麦考酚酯缓释微丸[J]. 中国医院药学杂志,2014,34(17):1471–1476. ZHANG Jing, CHEN Ting, SONG Hongtao. Preparation of mycophenolatemofetil sustained-release pellets by fluid bed coating[J]. Chinese Journal of Hospital Pharmacy, 2014, 34(17): 1471–1476.
[14] 徐晨,谢俊,黄春玉,等. 粉末包衣技术在药物制剂领域的应用研究进展[J]. 药学进展,2013,37(12):635–641. XU Chen, XIE Jun, HUANG Chunyu, et al. Recent researches on the application of powder coating technology in pharmaceutics[J]. Progress in Pharmaceutical Sciences, 2013, 37(12): 635–641.
[15] 谢中国,王芙蓉,金煜华,等. 湿法制粒与流化床工艺制备海水仔稚鱼微粒饲料研究[J]. 中国粮油学报,2013,28(10):66–70. XIE Zhongguo, WANG Furong, JIN Yuhua, et al. Marine fish larvae diet prepared using wet granulation and fluidized bed coating process[J]. Journal of the Chinese Cereals and Oils Association, 2013, 28(10): 66–70.
[16] 王新,姚研,徐庆,等. 热熔融流化床液固接触包衣特性的CFD-DEM模拟[J]. 中国粉体技术,2019,25(2):6–11. WANG Xin, YAO Yan, XU Qing, et al. Liquid-solid contacting simulation of hot-melt fluidized bed coating based on CFD-DEM[J]. China Powder Science and Technology, 2019, 25(2): 6–11.
[17] 游国叶. 流化床包衣法制备氢氯噻嗪缓释微丸[J]. 河南大学学报(医学版),2018,37(3):166–169. YOU Guoye. Fluidized bed-coating to prepare Hydrochlorothiazide sustained release pellets[J]. Journal of Henan University(Medical Science), 2018, 37(3): 166–169.
[18] 陈毅,刘海龙,张羽臣,等. 热采抗高温水泥石力学完整性研究[J]. 石油机械,2018,46(11):23–28. CHEN Yi, LIU Hailong, ZHANG Yuchen, et al. Study on mechanical integrity of high temperature cement in thermal recovery well[J]. China Petroleum Machinery, 2018, 46(11): 23–28.
-
