河北博野某地热井结垢位置预测及影响因素分析

梁海军, 郭啸峰, 高涛, 卜宪标, 李华山, 王令宝

梁海军, 郭啸峰, 高涛, 卜宪标, 李华山, 王令宝. 河北博野某地热井结垢位置预测及影响因素分析[J]. 石油钻探技术, 2020, 48(5): 105-110. DOI: 10.11911/syztjs.2020096
引用本文: 梁海军, 郭啸峰, 高涛, 卜宪标, 李华山, 王令宝. 河北博野某地热井结垢位置预测及影响因素分析[J]. 石油钻探技术, 2020, 48(5): 105-110. DOI: 10.11911/syztjs.2020096
LIANG Haijun, GUO Xiaofeng, GAO Tao, BU Xianbiao, LI Huashan, WANG Lingbao. Scaling Spot Prediction and Analysis of Influencing Factors for a Geothermal Well in Boye County, Hebei Province[J]. Petroleum Drilling Techniques, 2020, 48(5): 105-110. DOI: 10.11911/syztjs.2020096
Citation: LIANG Haijun, GUO Xiaofeng, GAO Tao, BU Xianbiao, LI Huashan, WANG Lingbao. Scaling Spot Prediction and Analysis of Influencing Factors for a Geothermal Well in Boye County, Hebei Province[J]. Petroleum Drilling Techniques, 2020, 48(5): 105-110. DOI: 10.11911/syztjs.2020096

河北博野某地热井结垢位置预测及影响因素分析

基金项目: 国家重点研发计划项目“井储防垢除垢关键技术及工艺”(编号:2019YFB1504104)和中国石化集团科技攻关项目“中高温地热水防垢除垢技术研究”(编号:JP18063-2)部分研究内容
详细信息
    作者简介:

    梁海军(1972—),男,山东滨州人,1995年毕业于石油大学(华东)石油工程专业,高级工程师,主要从事地热、干热岩等新能源技术的研发、咨询及规划工作。E-mail:lianghaijun.xxsy@sinopec.com

  • 中图分类号: TK52

Scaling Spot Prediction and Analysis of Influencing Factors for a Geothermal Well in Boye County, Hebei Province

  • 摘要: 地热井开发过程中的碳酸钙结垢严重制约了地热能的可持续开发利用,为了给地热井阻垢技术的应用提供理论依据,对河北博野地热井X井结垢位置进行了数值模拟研究。基于地热井井身结构,利用WELLSIM软件,进行了结垢位置预测和结垢影响因素分析研究。研究结果表明:根据出口流体成分反推得到的井底流体温度为128.0 ℃;地热流体沿井筒上升过程中压力迅速降低,在井下56.10 m处发生闪蒸,其干度、CO2分压随之发生突变;地热井内流体闪蒸位置随CO2质量分数、NaCl质量分数和地热流体流量增大而下移,其中CO2质量分数对地热水闪蒸位置的影响最大。现场防垢时,潜水泵的下入深度或阻垢剂的加注深度均应在闪蒸点56.10 m以下。研究表明,控制井口压力和流量可以调节闪蒸位置,实现地热开采与防垢技术的协同优化。
    Abstract: Calcium carbonate scaling in geothermal wells seriously hinders the sustainable development and utilization of geothermal energy. In order to provide a theoretical basis for the implementation of scale inhibition technology in geothermal wells, the scaling spots of a geothermal well in Boye County of Hebei Province were numerically simulated. Based on the casing program of geothermal wells, the influencing factors and scaling spot depth prediction were studied by using WELLSIM. The results showed that fluid temperature at the bottomhole calculated from the composition of outlet fluids was 128.0 ℃. The geothermal fluid pressure drops rapidly as it rose along the wellbore. A flash occurred at the depth of 56.10 m, the dryness and CO2 partial pressure sharply changed accordingly. The flash depth of geothermal fluids migrated downwards with the increase of CO2 mass fraction, NaCl mass fraction and geothermal fluid flow rate, in which CO2 mass fraction played the decisive role. In field scale prevention practice, the setting depth of the submersible pump and the injection depth of the scale inhibitor should be below the flash depth of 56.1 m. The research shows that the flash depth can be adjusted by controlling the wellhead pressure and flow rate to accomplish the collaborative optimization of geothermal exploitation and scale prevention.

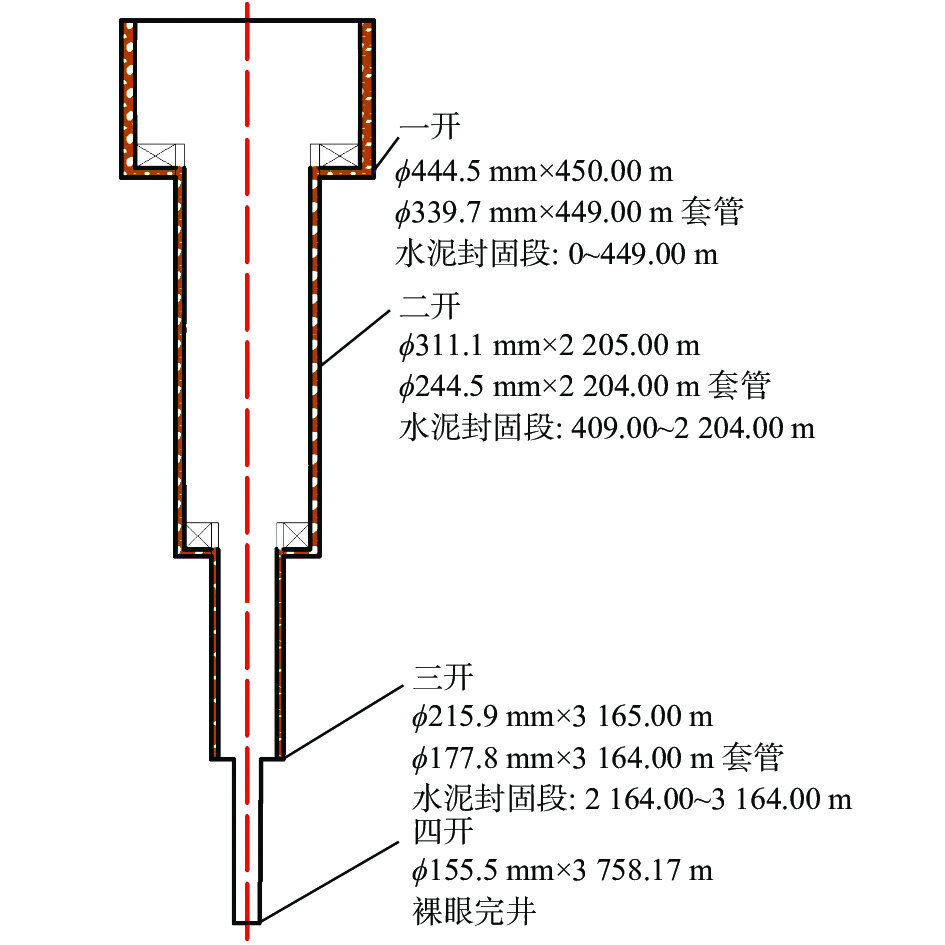

  • 图  1   地热X井井身结构

    Figure  1.   Casing program of a geothermal well

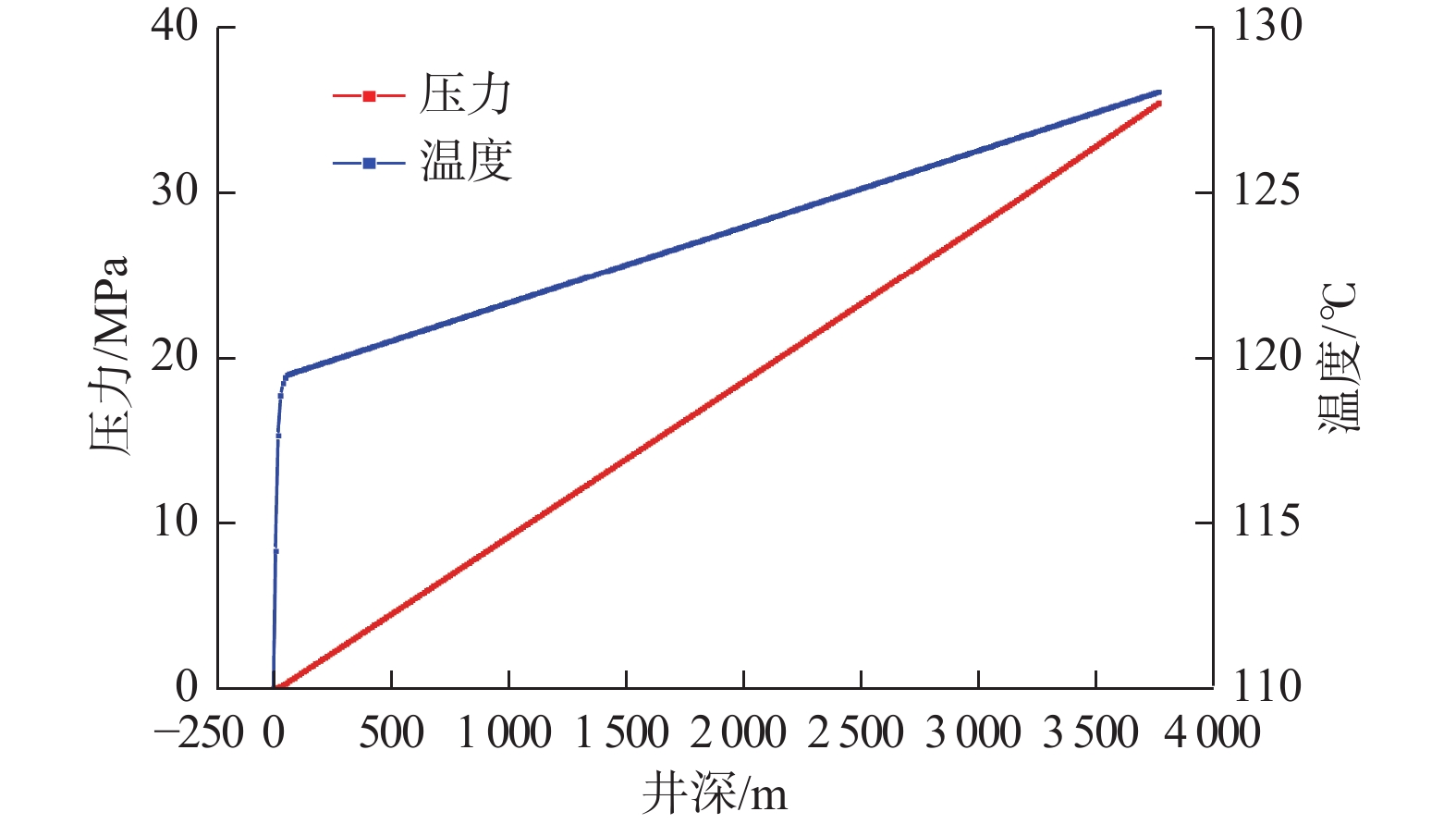

    图  2   全井段温度和压力的变化趋势

    Figure  2.   Variation trends of temperature and pressure along the wellbore

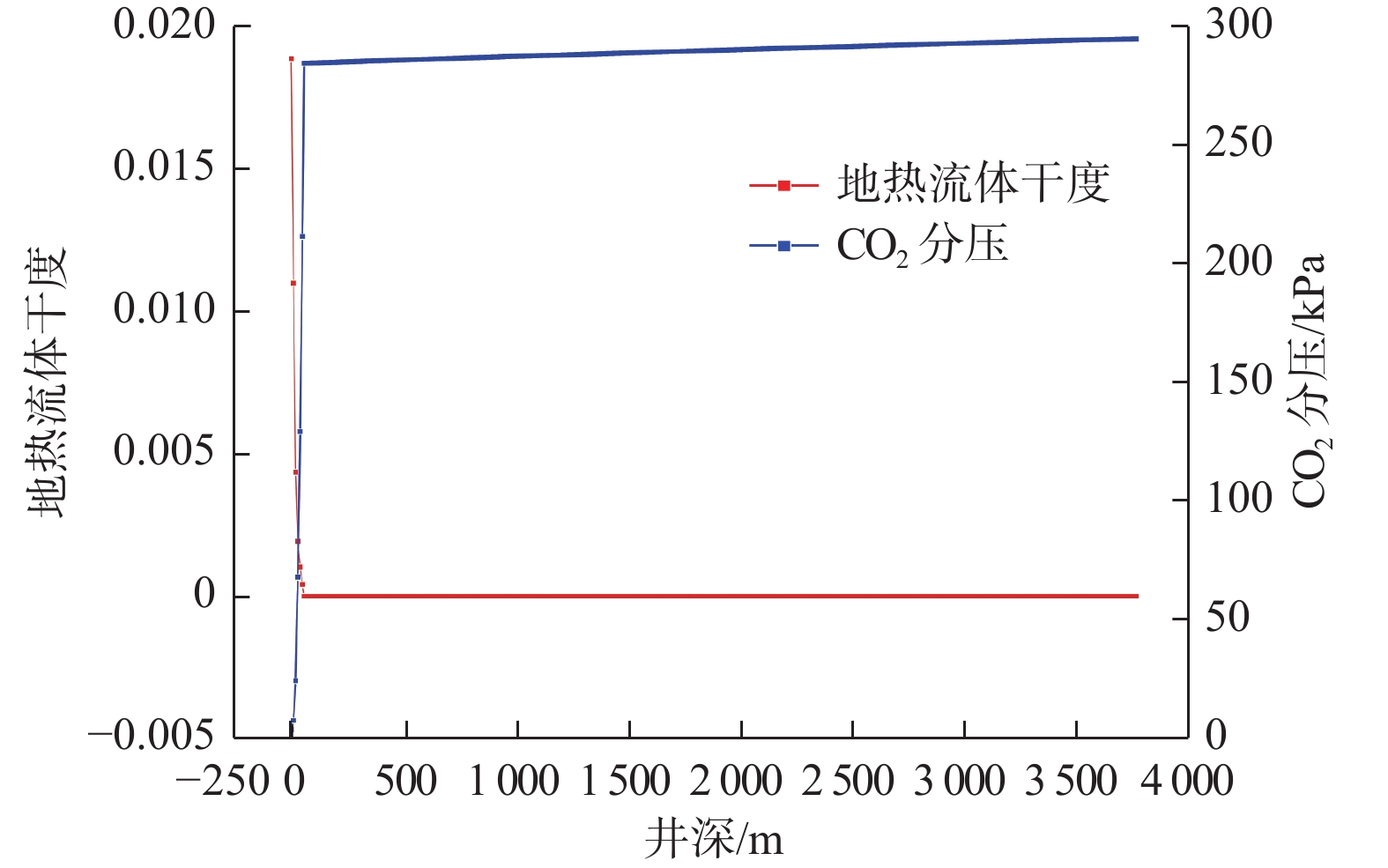

    图  3   全井段地热流体干度和CO2分压的变化规律

    Figure  3.   Variations laws of dryness and CO2 partial pressure along the wellbore

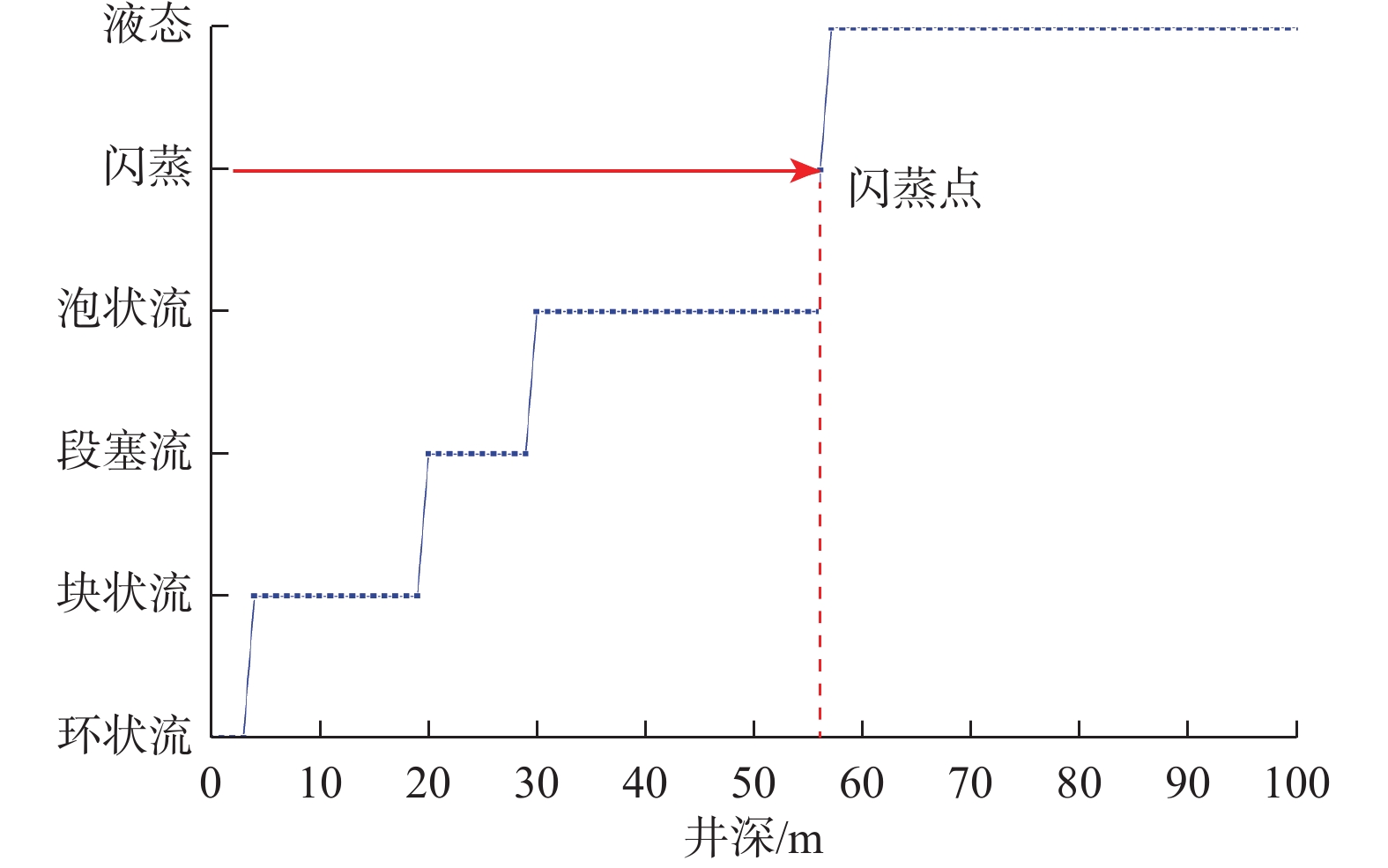

    图  4   地热流体流型的变化规律

    Figure  4.   Variation law of geothermal fluids flow pattern

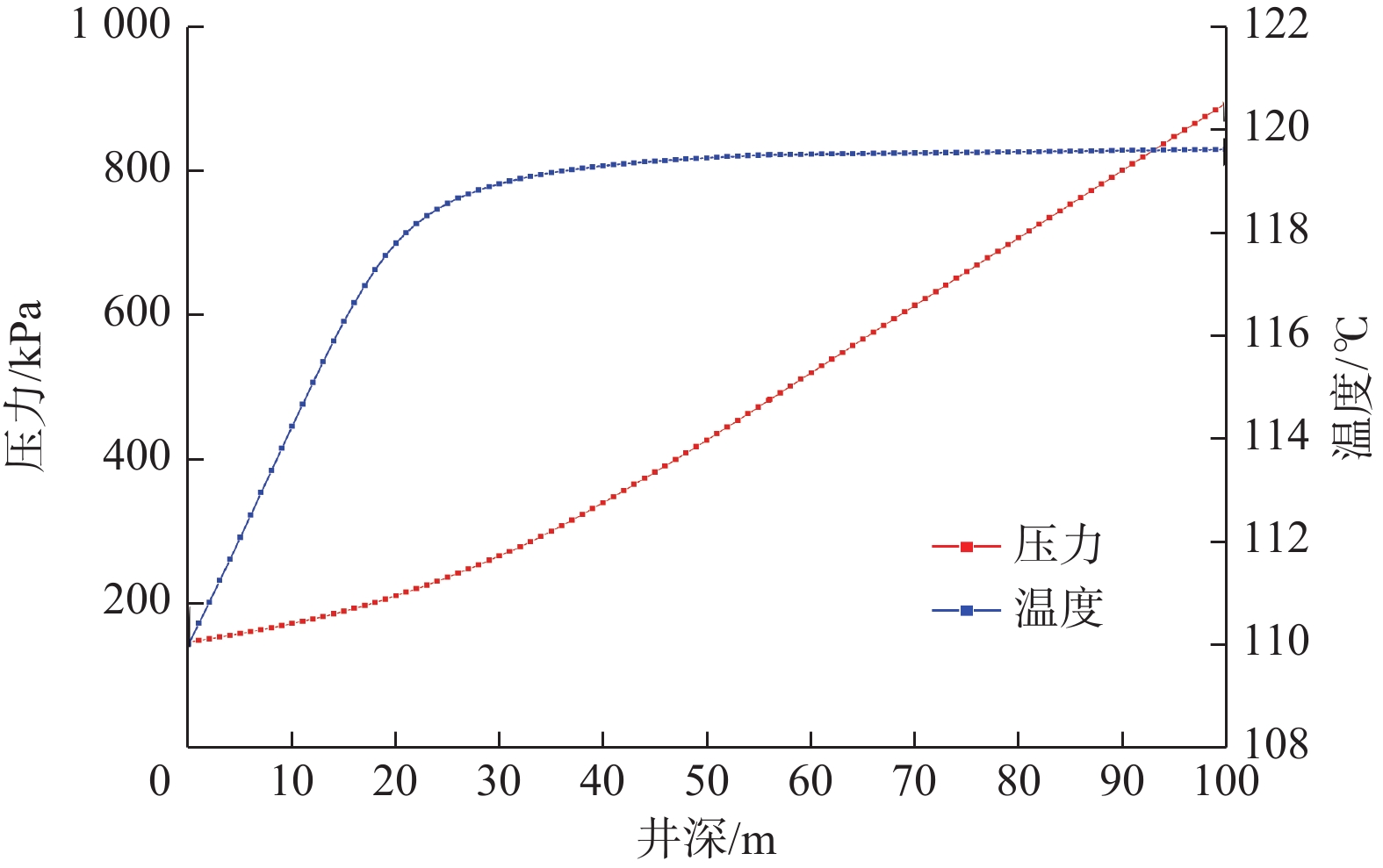

    图  5   井深100.00 m以浅地热流体温度和压力的变化规律

    Figure  5.   Variation laws of temperature and pressure of of geothermal fluids within 100 m below the wellhead

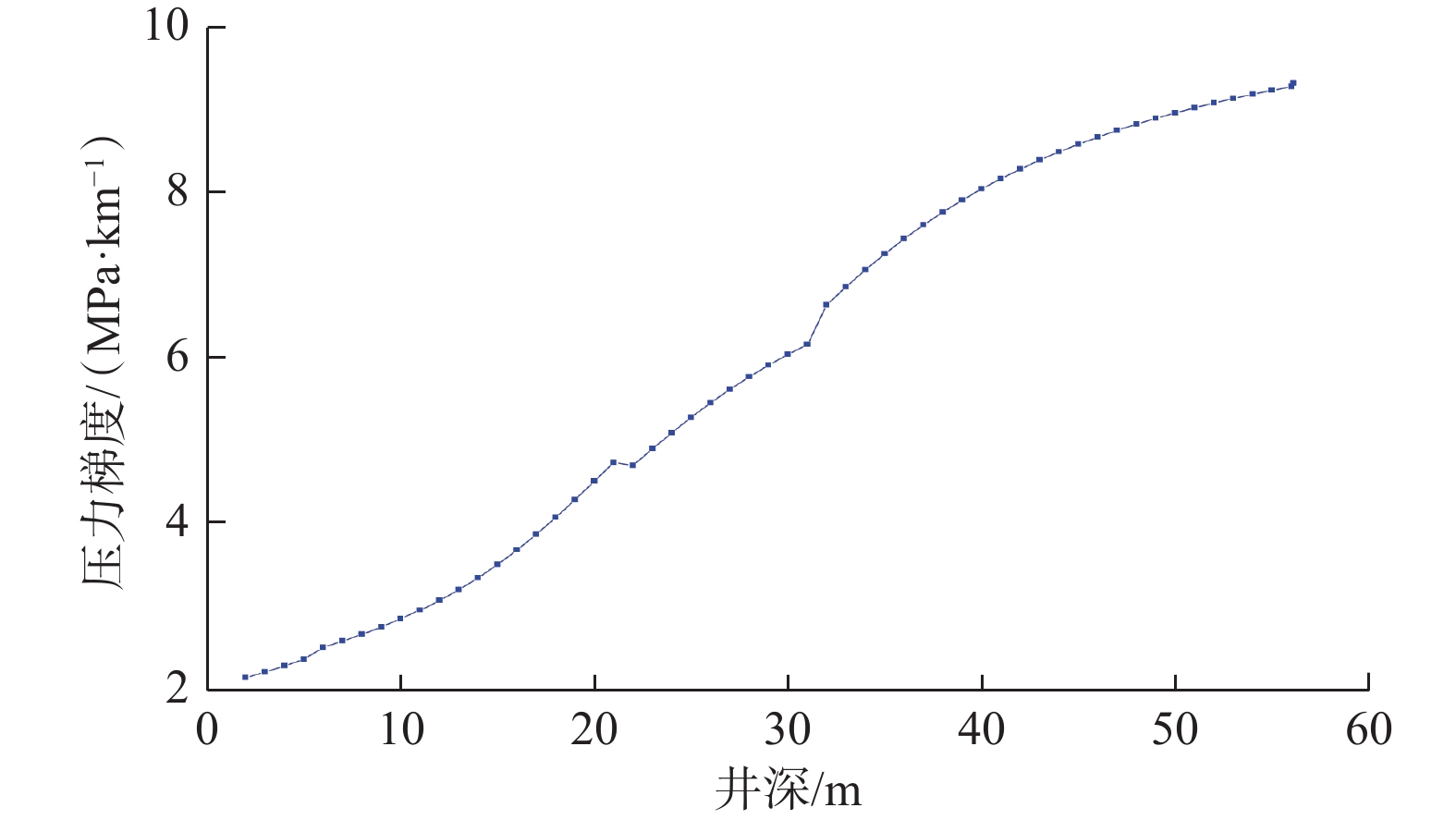

    图  6   闪蒸位置以上重力原因造成的压力梯度变化趋势

    Figure  6.   Variation trend of pressure drop caused by gravity above flashing depth

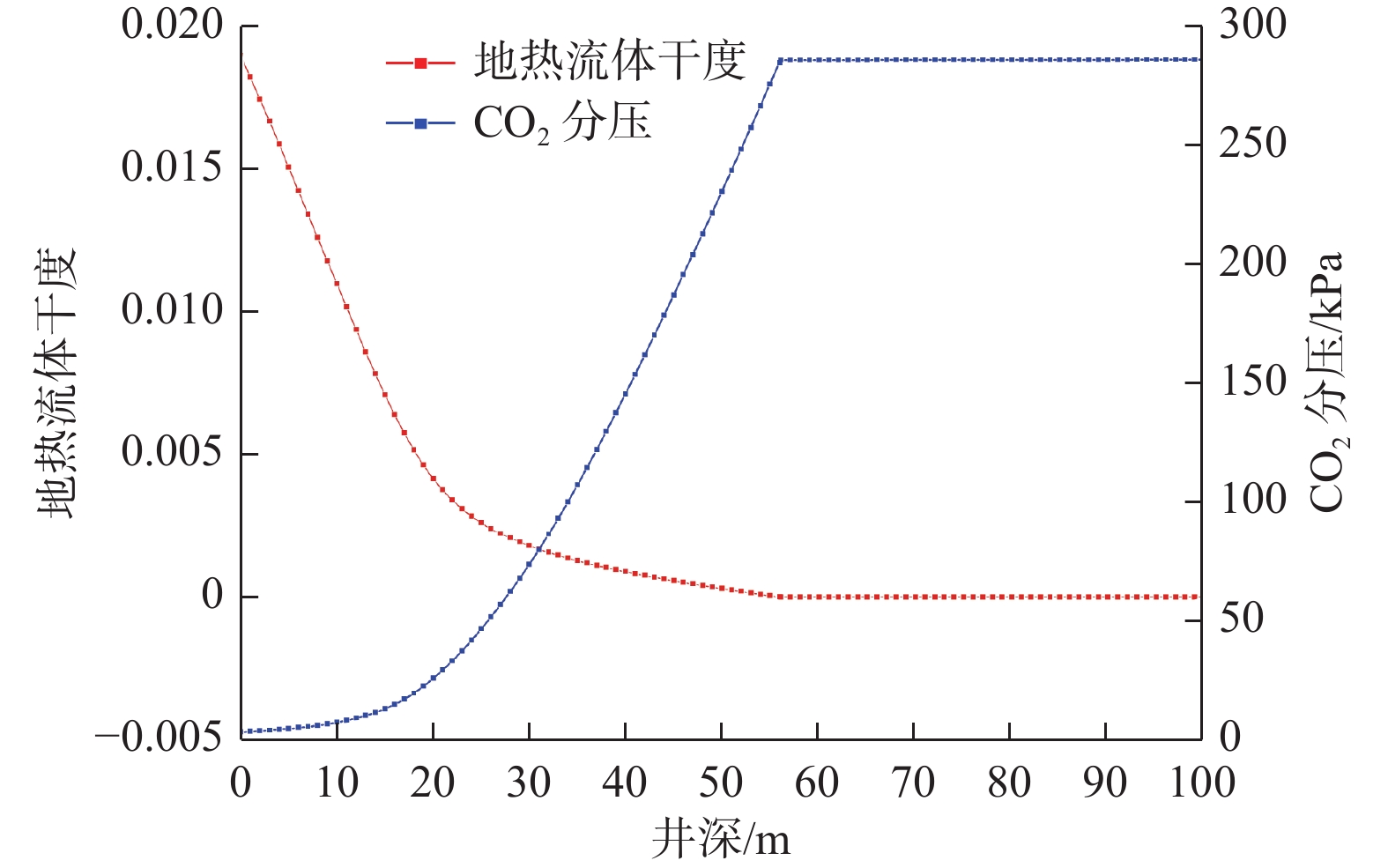

    图  7   井深100.00 m以浅地热流体干度和CO2分压的变化

    Figure  7.   Variations of dryness and CO2 partial pressure of geothermal fluids within 100 m below the wellhead

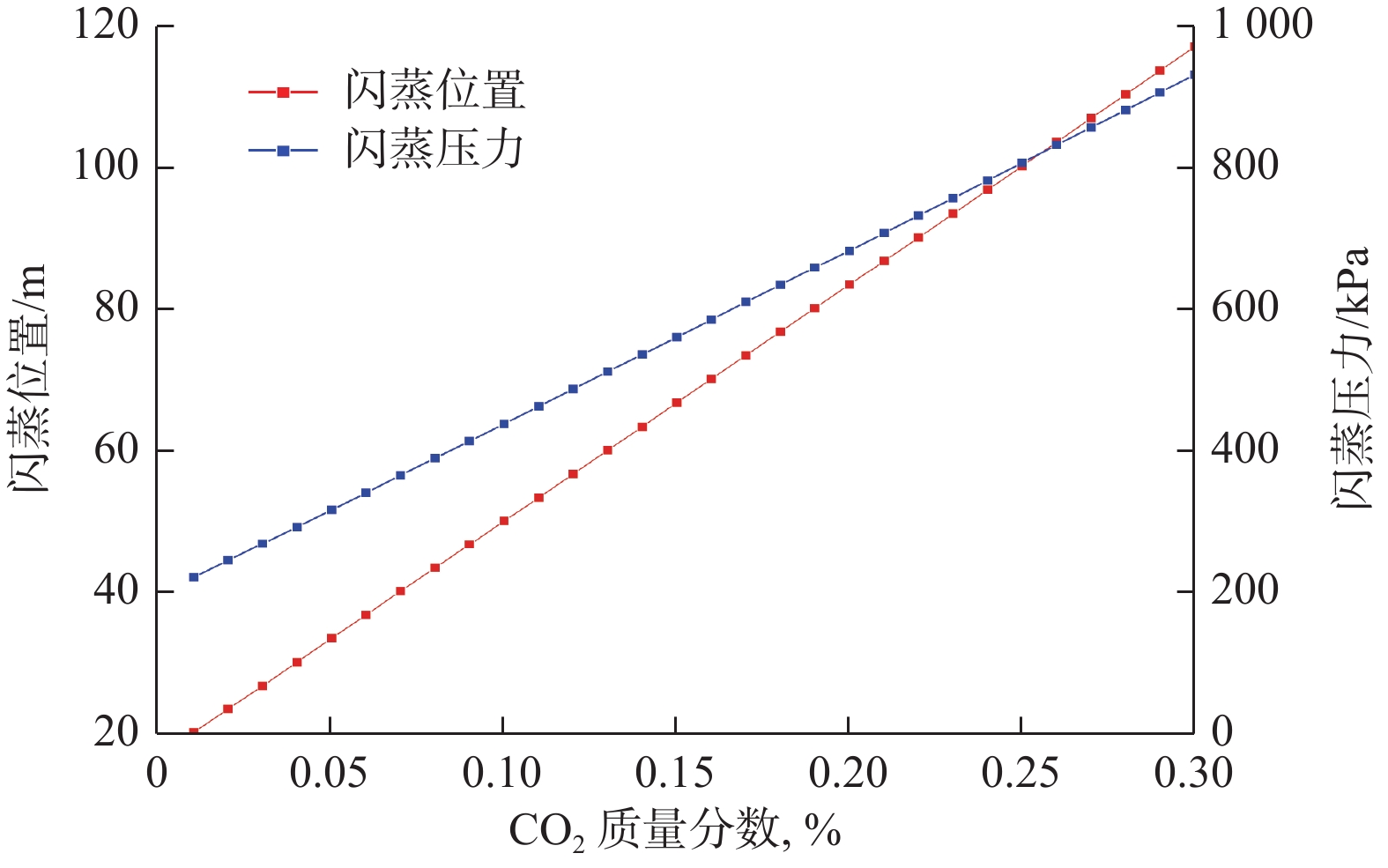

    图  8   井口CO2质量分数对闪蒸位置和闪蒸压力的影响规律

    Figure  8.   Influence of CO2 mass fraction at wellhead on flashing depth and flashing pressure

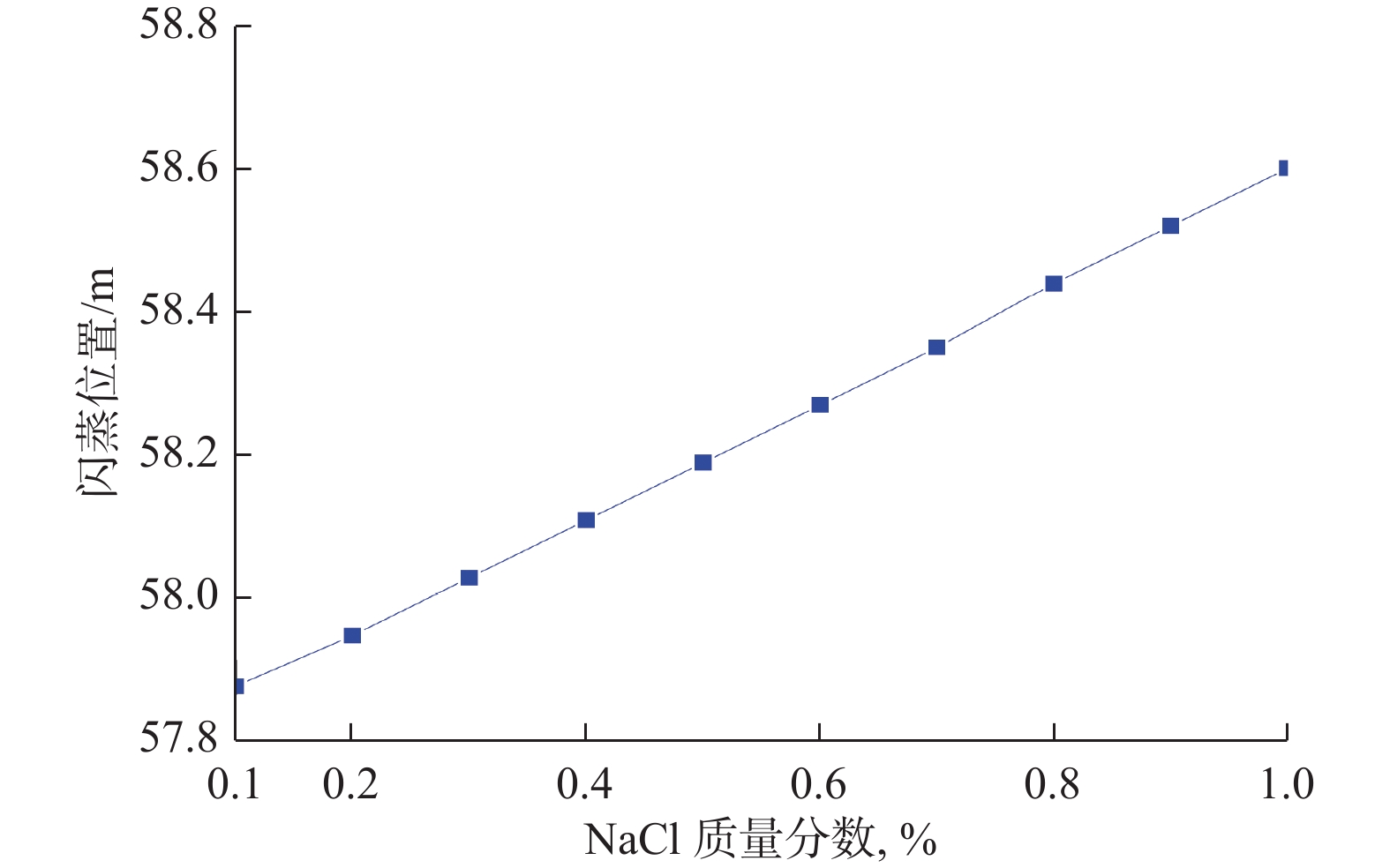

    图  9   井口NaCl质量分数对闪蒸位置的影响规律

    Figure  9.   Influence of NaCl mass fraction at wellhead on flashing depth

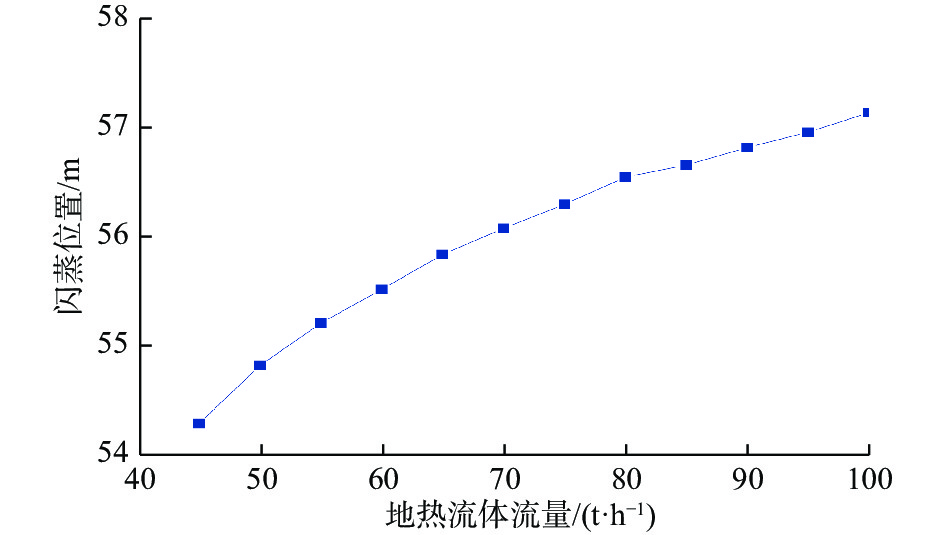

    图  10   井口地热流体流量对闪蒸位置的影响规律

    Figure  10.   Influence law of geothermal fluids flow rate at wellhead on flashing depth
