曾凡辉,胡大淦,张宇,等. 数据驱动的页岩油水平井压裂施工参数智能优化研究[J]. 石油钻探技术,2023, 51(5):78-87. DOI: 10.11911/syztjs.2023087
引用本文: 曾凡辉,胡大淦,张宇,等. 数据驱动的页岩油水平井压裂施工参数智能优化研究[J]. 石油钻探技术,2023, 51(5):78-87. DOI: 10.11911/syztjs.2023087
ZENG Fanhui, HU Dagan, ZHANG Yu, et al. Research on data-driven intelligent optimization of fracturing treatment parameters for shale oil horizontal wells [J]. Petroleum Drilling Techniques,2023, 51(5):78-87. DOI: 10.11911/syztjs.2023087
Citation: ZENG Fanhui, HU Dagan, ZHANG Yu, et al. Research on data-driven intelligent optimization of fracturing treatment parameters for shale oil horizontal wells [J]. Petroleum Drilling Techniques,2023, 51(5):78-87. DOI: 10.11911/syztjs.2023087

数据驱动的页岩油水平井压裂施工参数智能优化研究

Research on Data-Driven Intelligent Optimization of Fracturing Treatment Parameters for Shale Oil Horizontal Wells

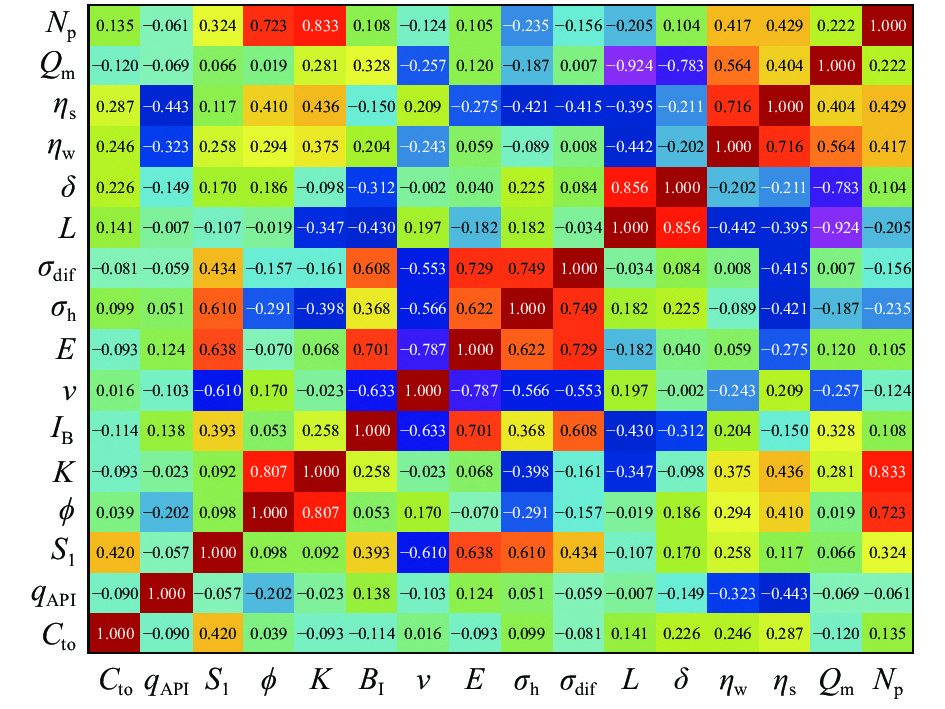

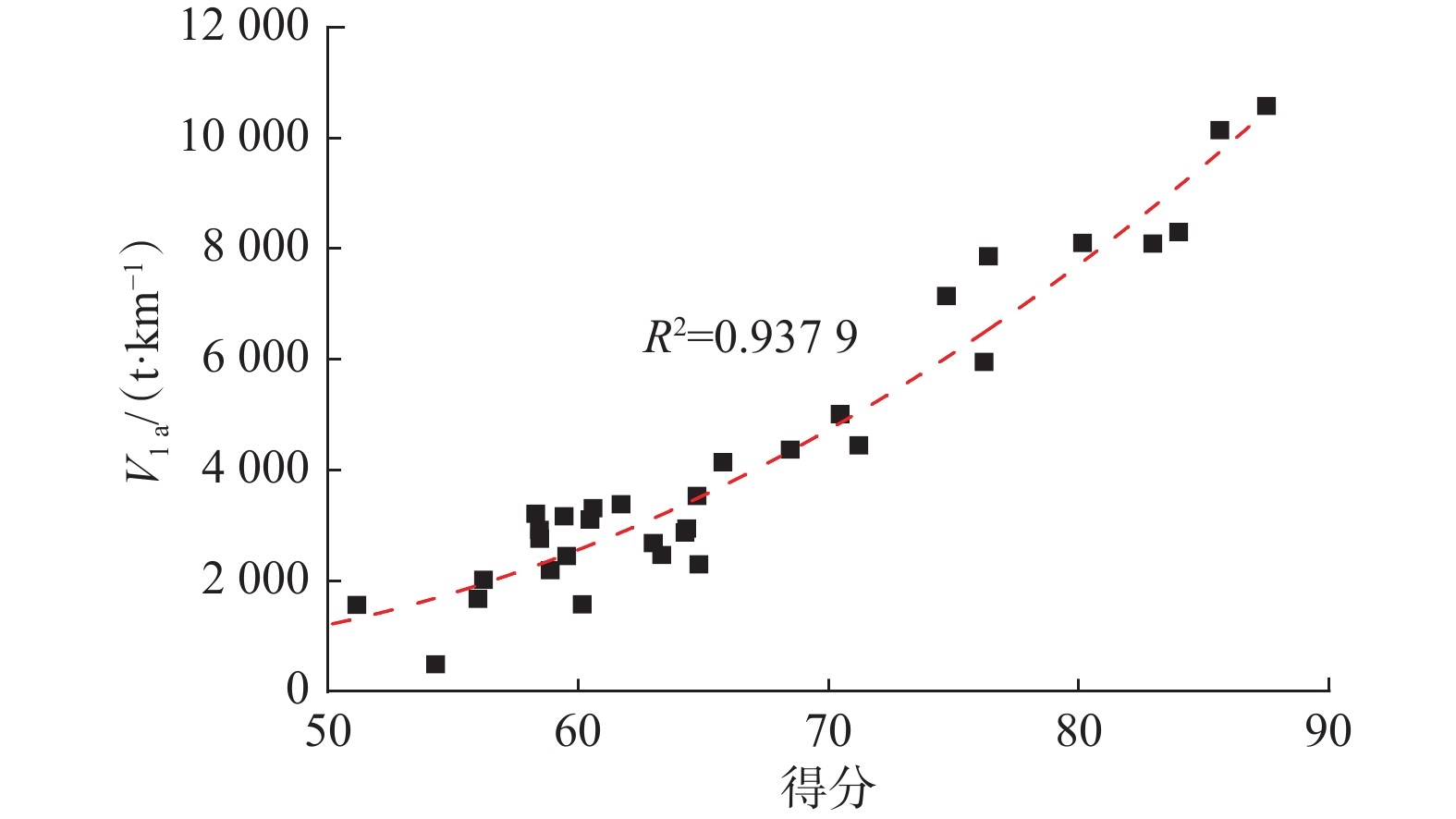

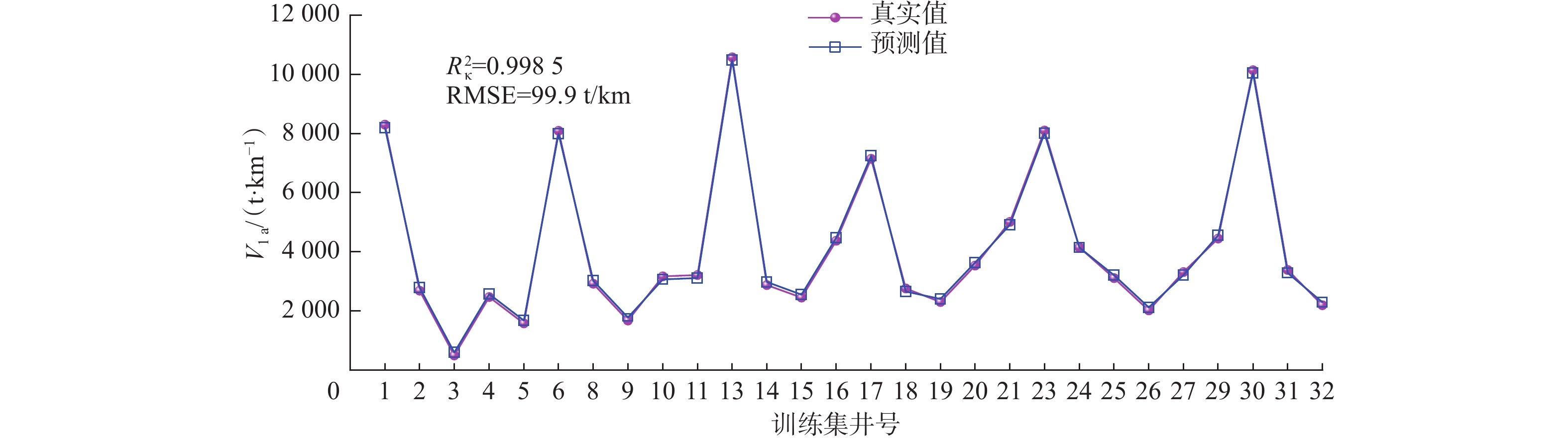

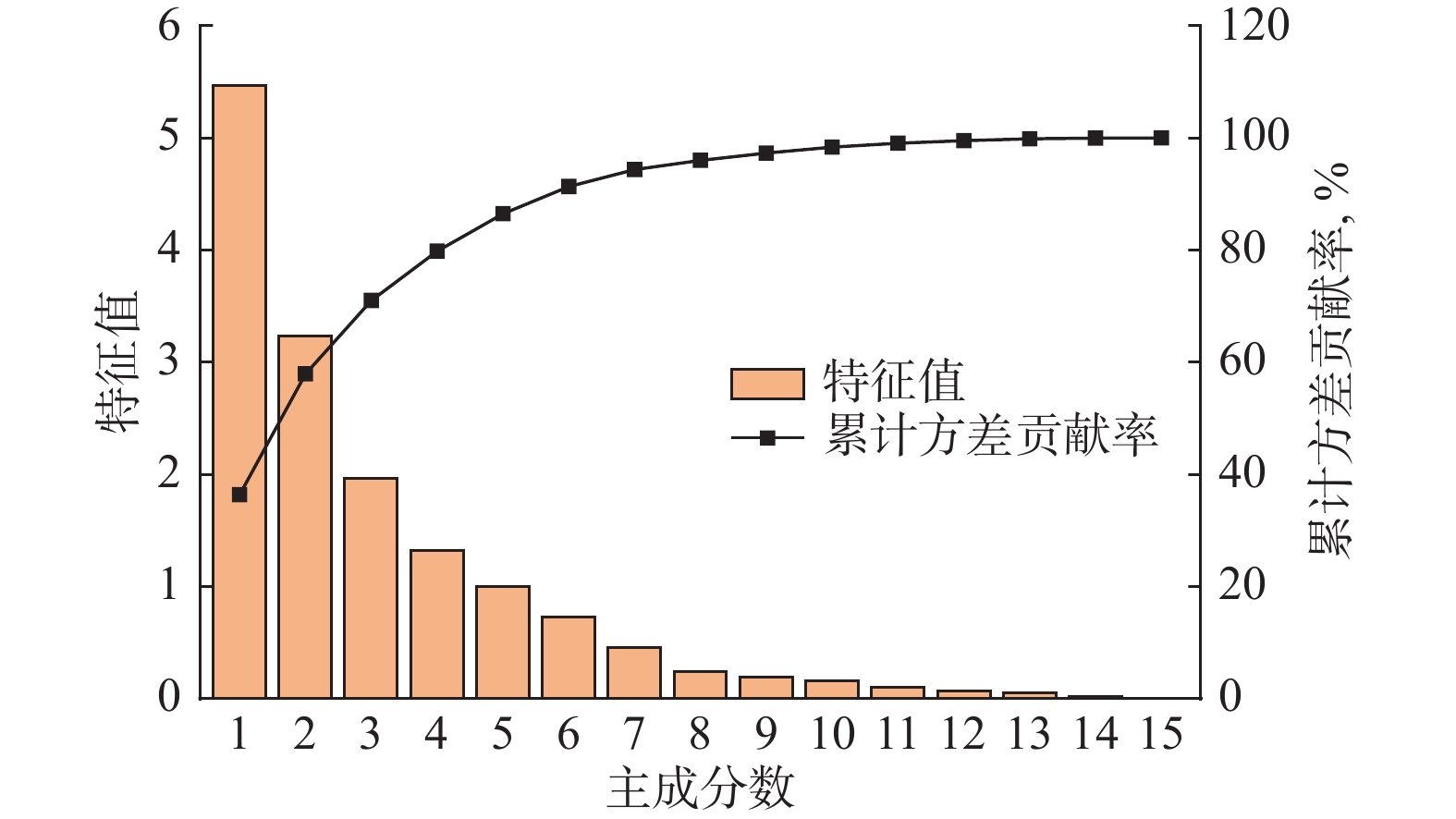

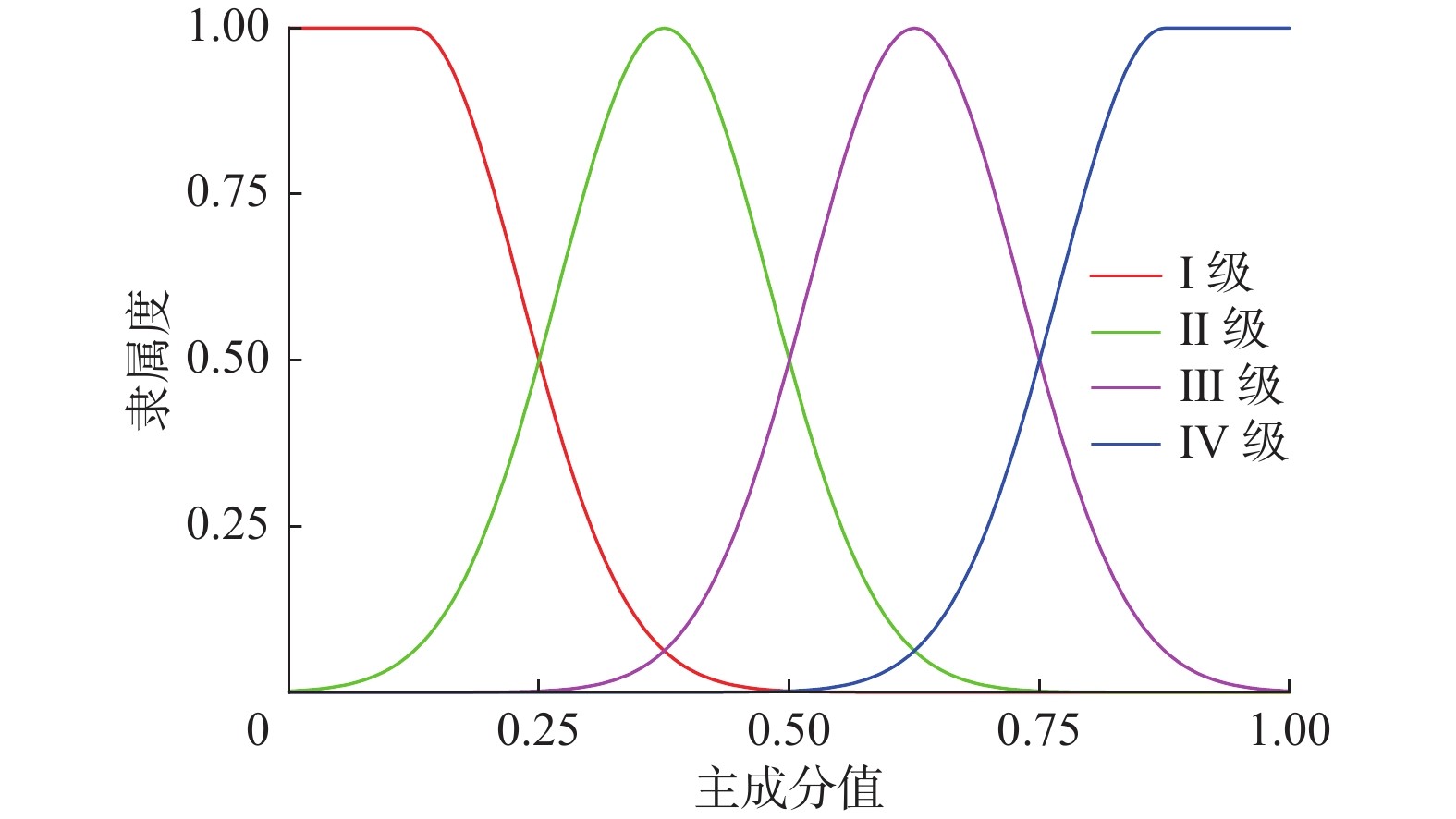

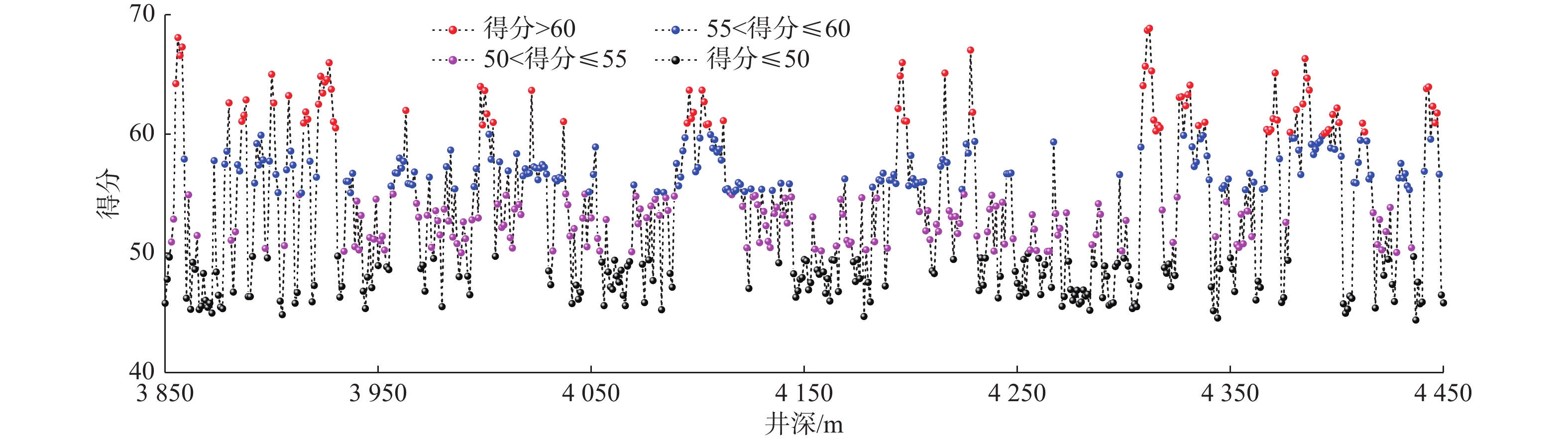

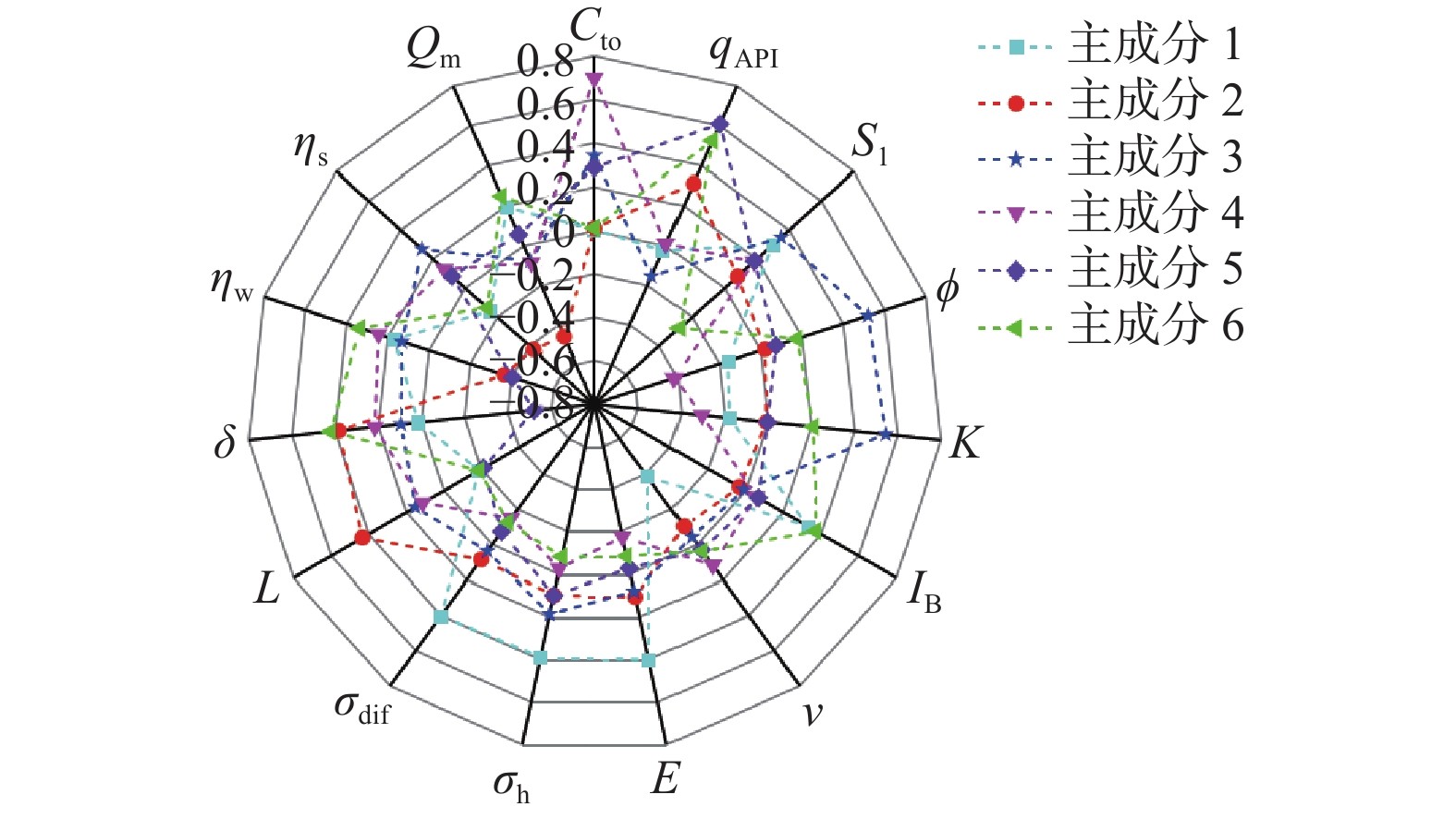

  • 摘要: 针对目前数智化压裂施工参数设计针对性不足、流程不畅通等问题,建立了基于数据驱动的压裂施工参数智能优化方法。以CD区块32口页岩油井为研究对象,采用主成分分析法处理代表储层地质特征、工程品质和施工参数的15项产量影响因素,使之降低维度,引入高斯隶属函数和熵权法进行储层压裂非均质性模糊综合评价,结合支持向量回归和粒子群优化算法,以产量最高为目标,推荐射孔位置、段长、簇间距、单位长度液量、单位长度砂量和排量。研究结果表明,渗透率、孔隙度、热解游离烃含量、单位长度液量和单位长度砂量为研究区块的产量主控因素。应用实例井采用优化的参数施工后,第一压裂段8簇均成功起裂,裂缝半长59.50~154.80 m,产量预测符合率为94.86%。研究表明,该方法可实现有效储层质量评价、产量预测和匹配储层地质条件施工参数的快速优化,推动页岩油等非常规储层高效开发。



    Abstract: A data-driven intelligent optimization method for fracturing treatment parameters was proposed to address the issues of insufficient pertinence and incomplete process design in digital fracturing treatment parameters. With 32 shale oil wells in the CD block as the research object, principal component analysis was used to reduce the 15 production-influencing factor dimensions representing geological attributes, engineering quality, and construction parameters of the reservoir. A Gaussian membership function and entropy weight method were introduced for a fuzzy comprehensive evaluation of reservoir fracturing heterogeneity. Combined with support vector regression and particle swarm optimization algorithms, the perforation location, segment length, cluster spacing, fracturing fluid intensity, sanding intensity, and discharge capacity were recommended with the highest production as the goal. The research results indicated that permeability, porosity, free hydrocarbon content by pyrolysis, fracturing fluid intensity, and sanding intensity were the main control factors for the production of the target block. All eight clusters of the first fracturing section of the application well have successfully initiated fractures during treatment with optimized parameters, with a half-length of 59.50–154.80 m and a production prediction accuracy of 94.86%. The method proposed can achieve effective reservoir quality evaluation, production prediction, and rapid optimization of treatment parameters that match reservoir geological conditions, promoting efficient shale oil development in unconventional reservoirs.



/
