A Laboratory Method for Evaluating the Bonding Tensile Strength of the Cement–Formation Interface Considering Multiple Factors
-
摘要:
受井壁表面粗糙度、钻井液残留和温压扰动等因素的影响，固井二界面是整个环空封隔的最薄弱环节，且极易发生张拉破坏导致环空密封失效，但已有的评价方法只能获得固井二界面的胶结剪切强度，不能很好地评价固井二界面抗拉破裂性能。为此，考虑岩性、界面粗糙度、钻井液残留、冲洗液清洗和水泥浆等主要因素，建立了一种固井二界面胶结抗拉强度室内评价方法，从冲洗效率、胶结细观结构、抗拉强度、破裂形貌等多个维度对固井二界面胶结抗拉性能进行了系统评价。研究结果表明，该评价方法科学合理、步骤清晰、简单适用、试验结果离散性小，不同因素下测试结果区分度好，进一步完善了固井二界面胶结强度评价方法，具有较高的推广应用价值。
Abstract:Due to the influence of surface roughness of wellbore walls, residual drilling fluids, and temperature perturbation, the cement–formation interface is the weakest link in the whole annulus sealing system. Additionally, tensile fracture is prone to occur and can lead to annulus sealing failure. The existing evaluation methods, however, can only determine the bonding shear strength of the cement–formation interface and cannot adequately evaluate its bonding tensile property. Therefore, a laboratory method was established to evaluate the bonding tensile strength of the cement–formation interface. This method took into consideration the main factors such as lithology, interface roughness, drilling fluid deposit, flushing fluid washing, and cement slurry. It systematically evaluated the bonding tensile strength of the cement–formation interface from multiple perspectives, including the flushing efficiency, the mesoscopic structure of bonding, tensile strength, and fracture morphology. Results from the research suggest that the proposed method is scientific and reasonable, and it reveals clear steps, simple application, and small discreteness of test results, and the test results are discriminative under different factors. Hence, the method improves the evaluation method for the bonding strength of the cement–formation interface and merits dissemination.
-

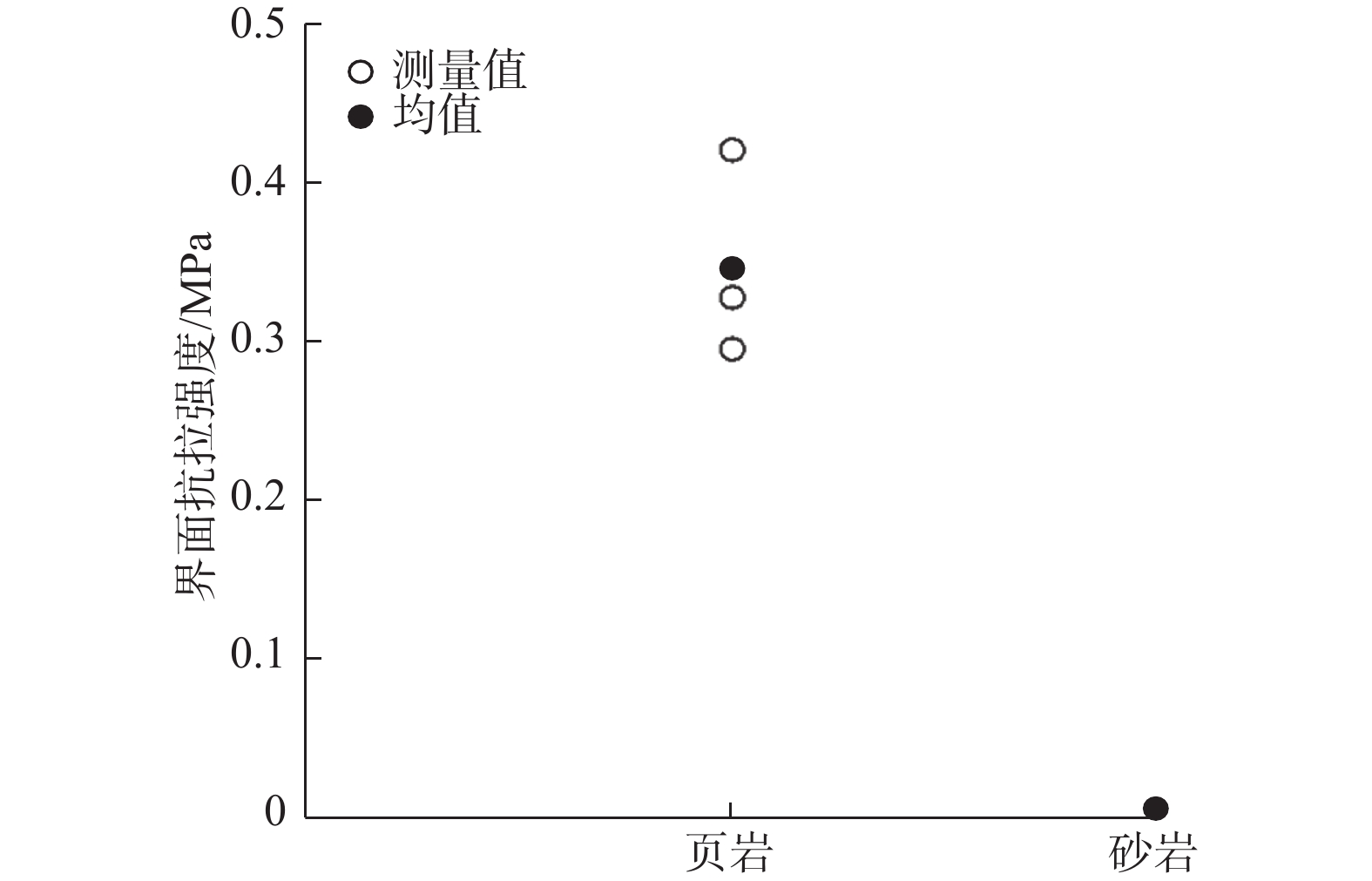

图 5 岩性对岩石–水泥石界面抗拉强度的影响
Figure 5. Influence of lithology on the tensile strength of rock-cement interface

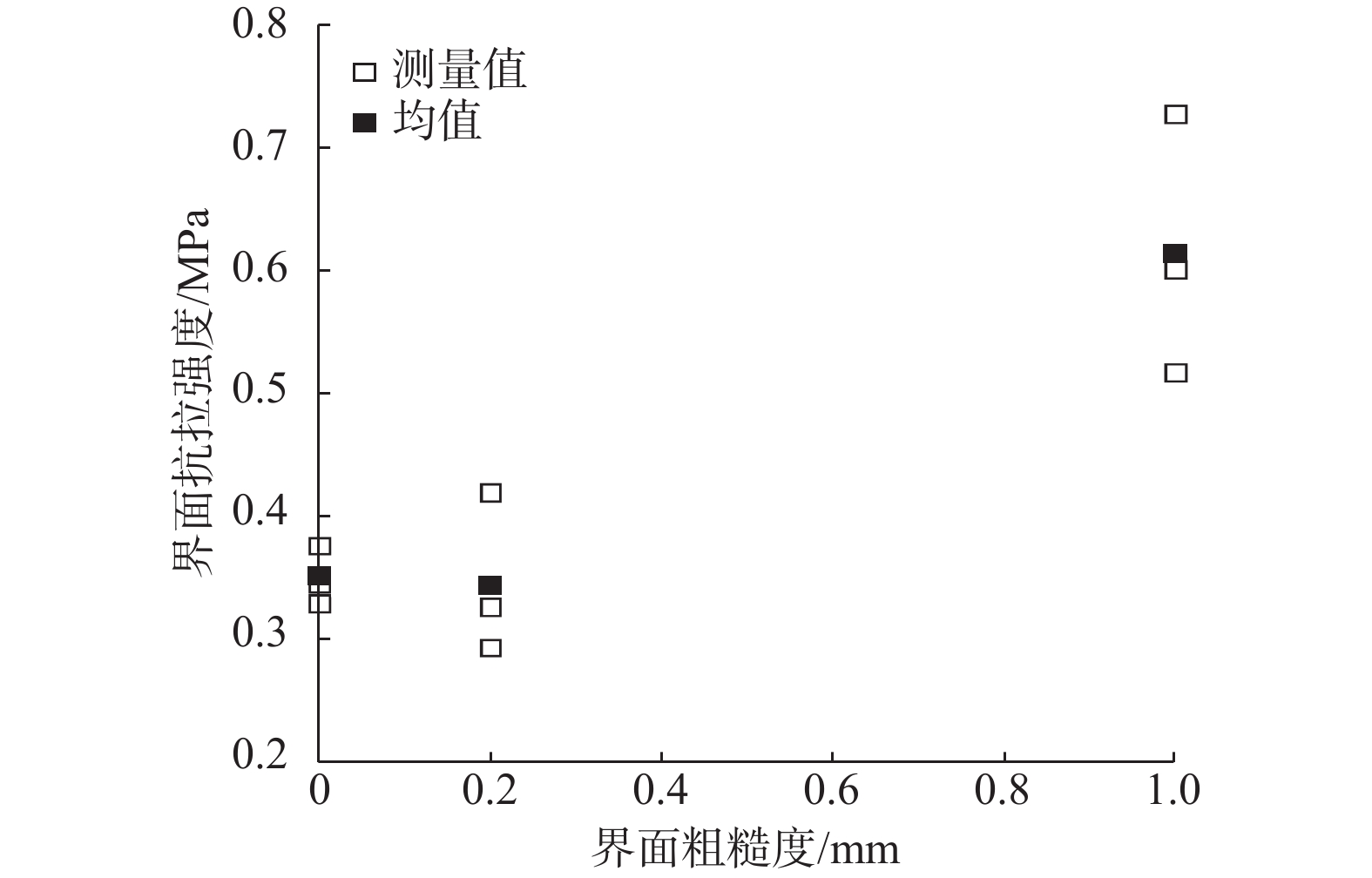

图 6 界面粗糙度对岩石–水泥石界面抗拉强度的影响
Figure 6. Influence of surface roughness on the tensile strength of rock-cement interface

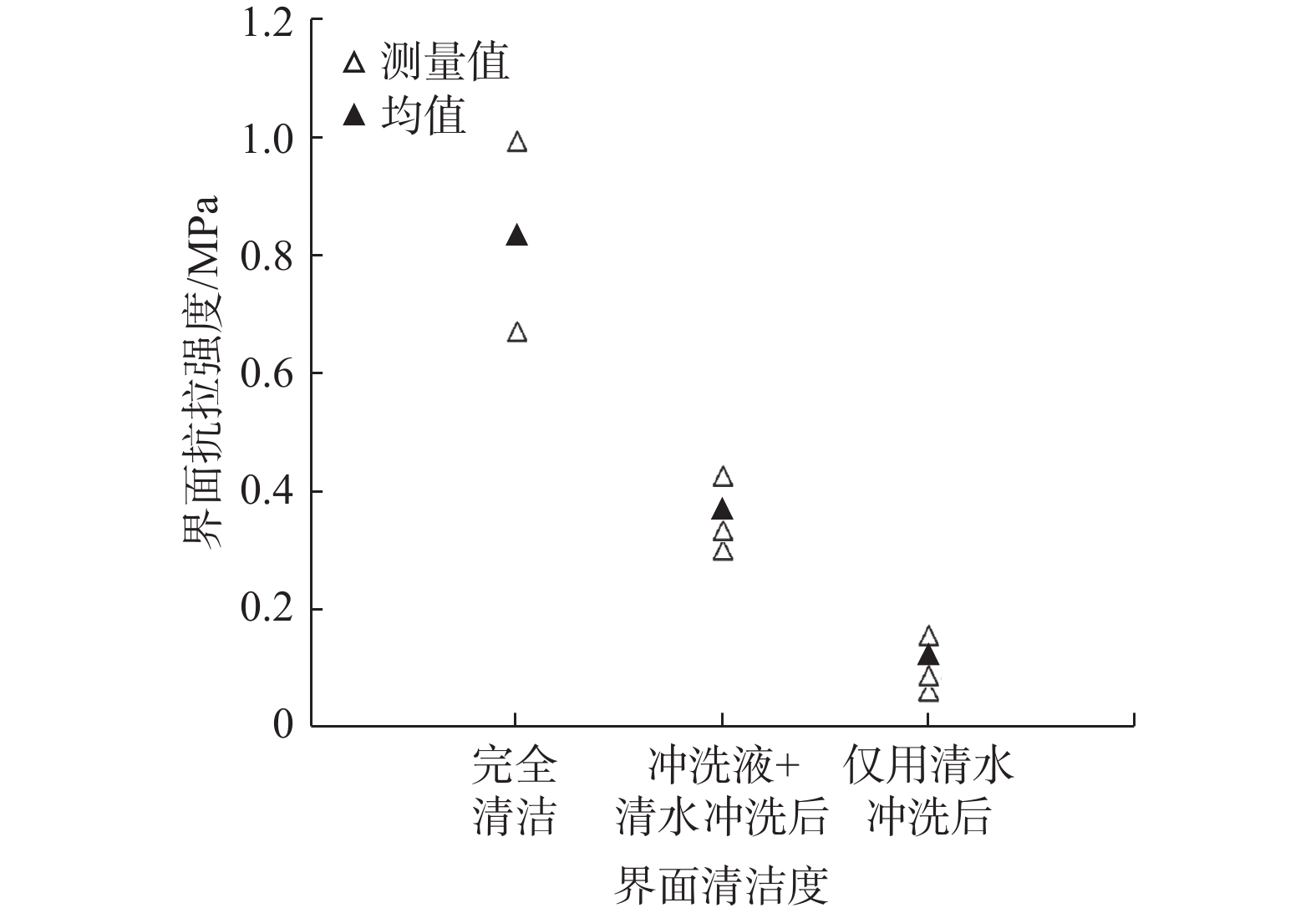

图 7 界面清洁度对岩石–水泥石界面抗拉强度的影响
Figure 7. Influence of surface cleanliness on the tensile strength of rock-cement interface

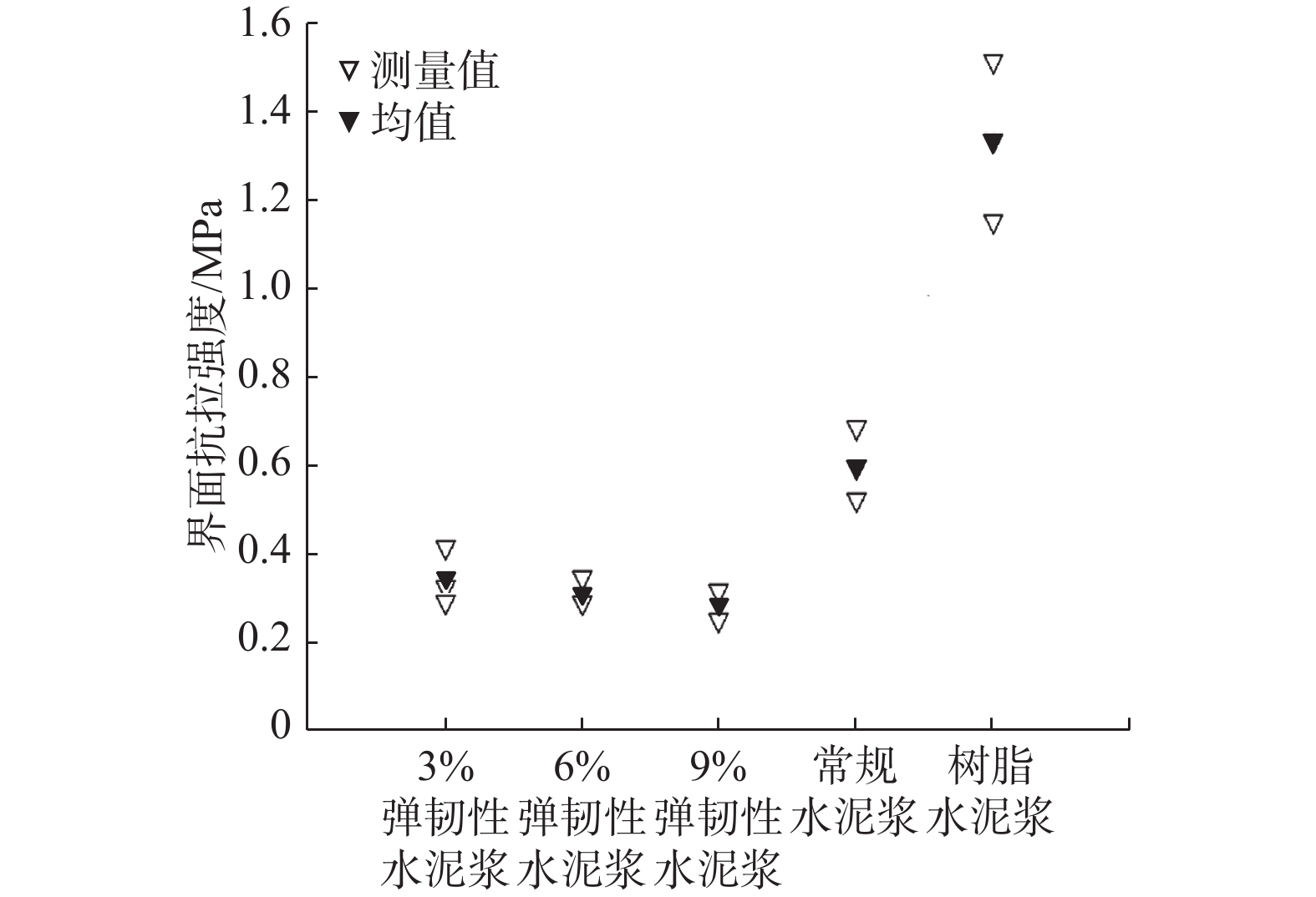

图 8 水泥浆对岩石–水泥石界面抗拉强度的影响
Figure 8. Influence of cement slurry on the tensile strength of rock-cement interface

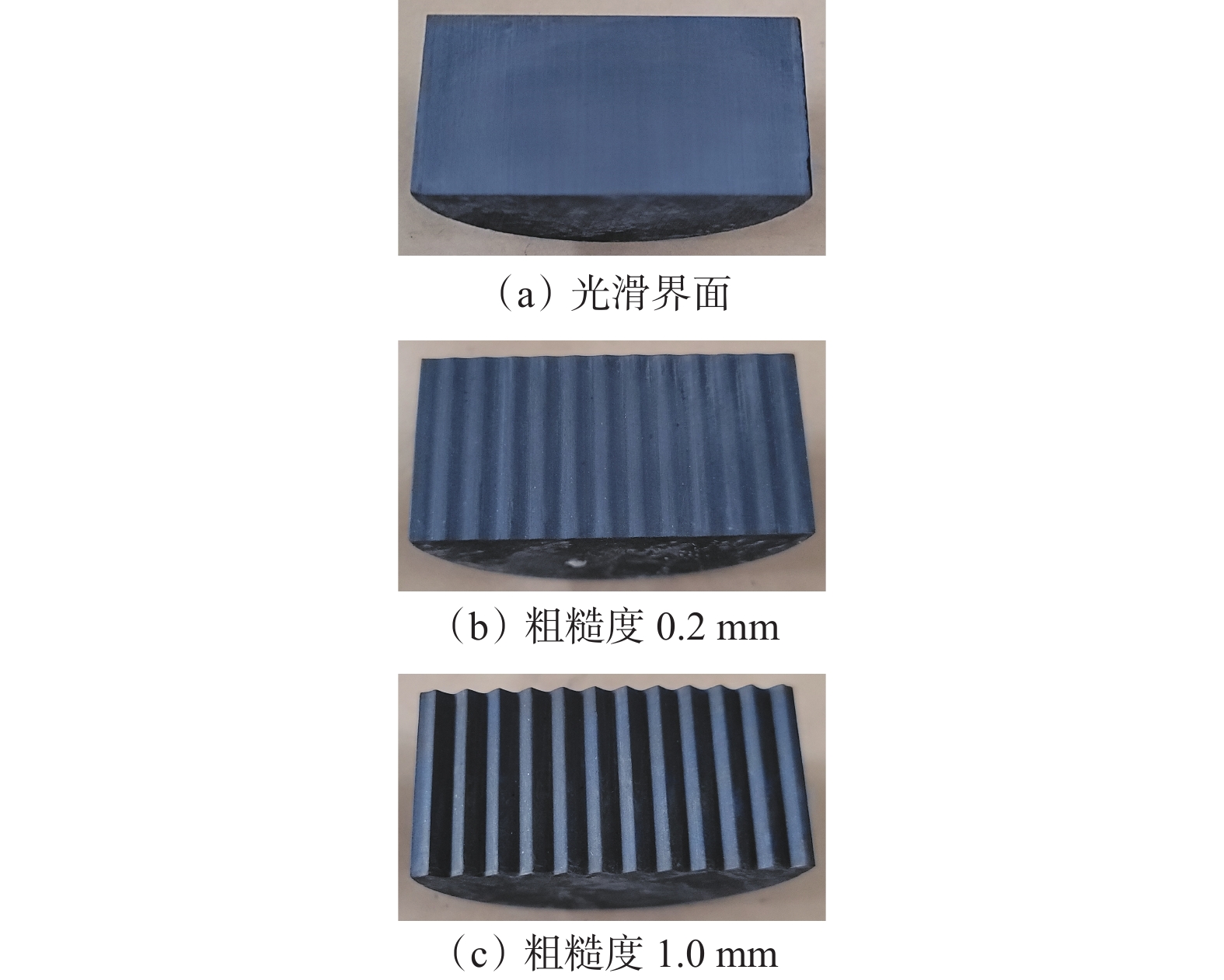

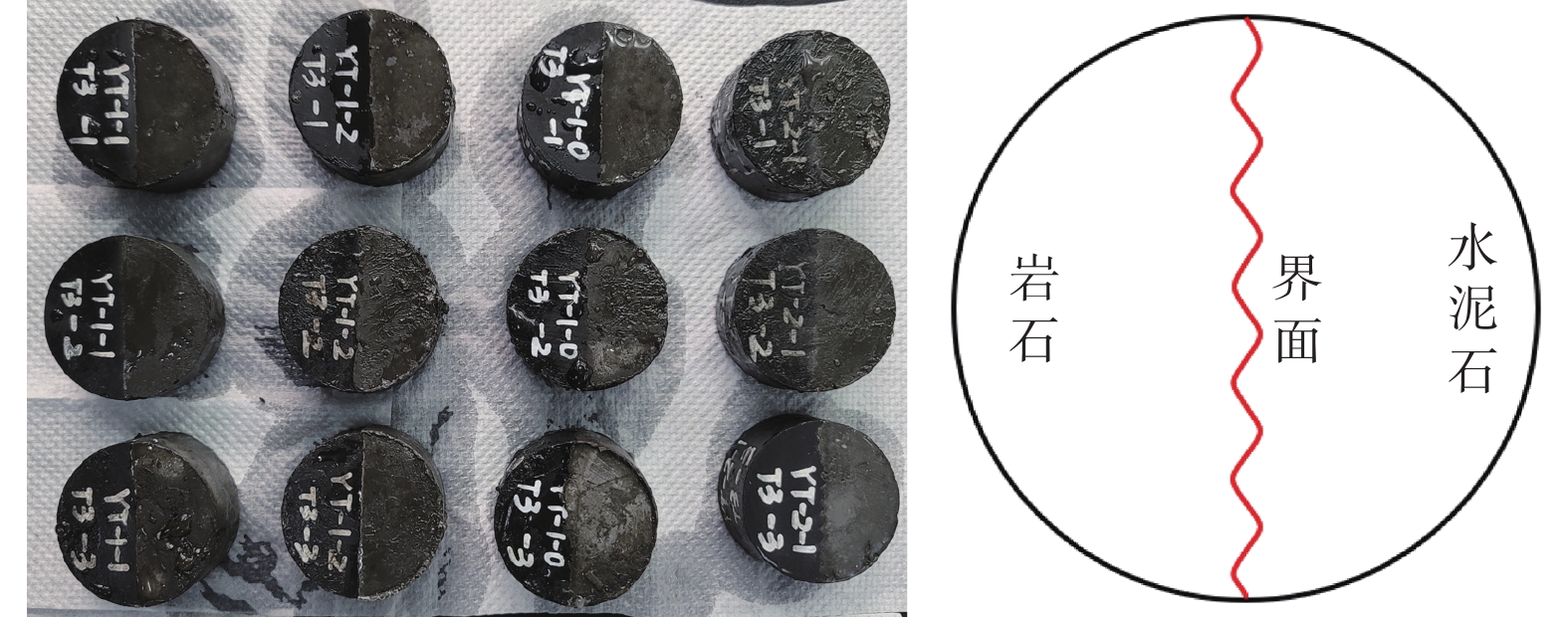

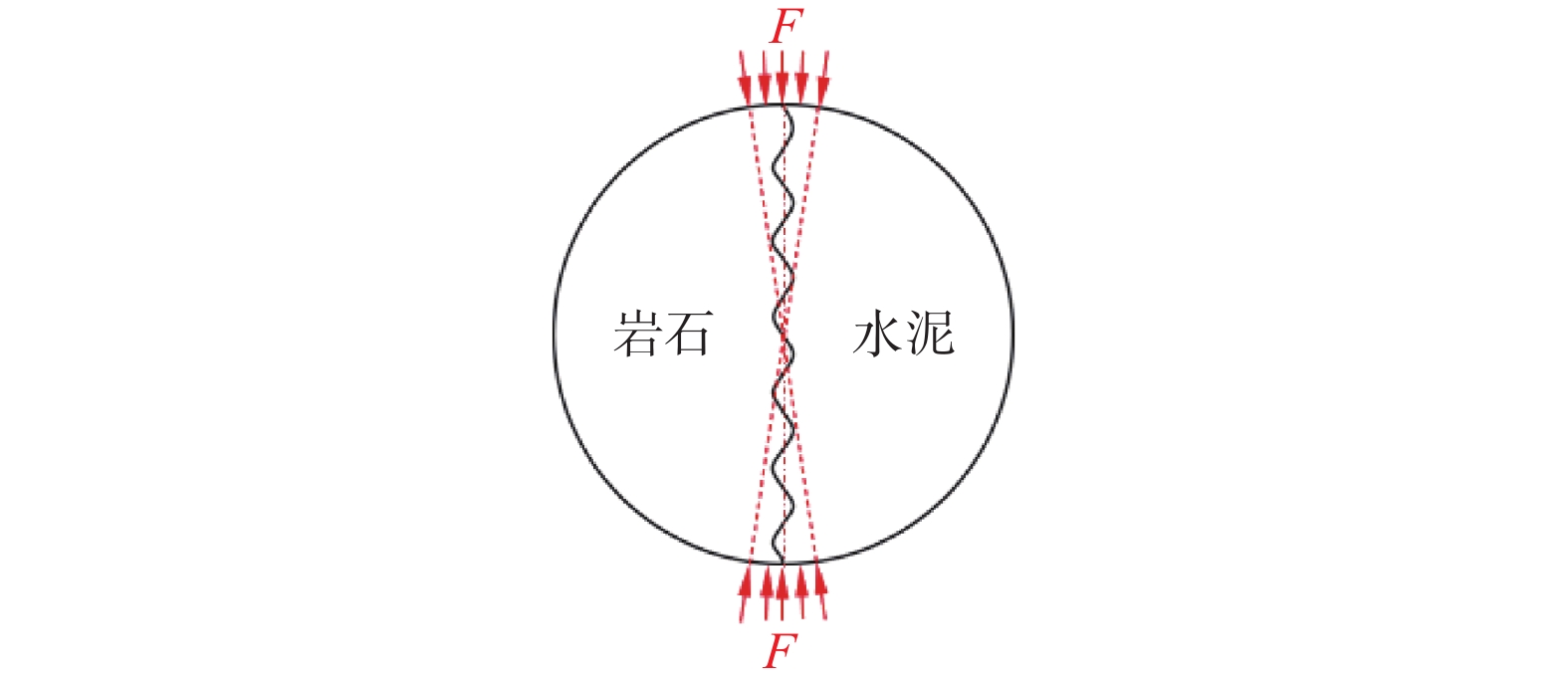

表 1 试验方案设计
Table 1. Experimental scheme design
岩性 界面粗糙度/mm 界面清洁度 水泥浆 试样编号 页岩 0.2 新鲜界面 3%弹韧性水泥浆 T3-YT-1-0-1,2,3 钻井液+冲洗液+清水 T3-YT-1-1-1,2,3 钻井液+清水 T3-YT-1-2-1,2,3 0 钻井液+冲洗液+清水 T3-YT-0-1-1,2,3 1.0 T3-YT-2-1-1,2,3 0.2 钻井液+冲洗液+清水 6%弹韧性水泥浆 T6-YT-1-1-1,2,3 9%弹韧性水泥浆 T9-YT-1-1-1,2,3 常规水泥浆 C-YT-1-1-1,2,3 树脂水泥浆 S-YT-1-1-1,2,3 砂岩 0.2 钻井液+冲洗液+清水 3%弹韧性水泥浆 T3-ST-1-1-1,2,3 注：常规水泥浆的配方为水泥+4.00%降滤失剂+0.25%消泡剂+40.00%清水；3%，6%和9%弹韧性水泥浆的配方为水泥+3.00%/6.00%/9.00%弹性材料+3.00%降滤失剂+10.00%液硅+0.25%消泡剂+33.00%清水；树脂水泥浆的配方为水泥+5.00%树脂+4.00%降滤失剂+35.00%清水+0.25%消泡剂。
下载: 导出CSV
表 2 不同岩性岩样的力学参数
Table 2. Mechanical parameters of rock sample with different lithology
岩性 单轴抗压
强度/MPa弹性模量/
GPa泊松比 巴西劈裂抗拉
强度/MPa渗透率/
mD页岩 98.5 24.10 0.20 13.0 0.000 21 砂岩 41.2 6.23 0.13 4.4 0.760 00
下载: 导出CSV
-
[1] 陈平. 钻井与完井工程[M]. 北京: 石油工业出版社, 2011.CHEN Ping. Drilling and completion engineering [M]. Beijing: Petroleum Industry Press, 2011. [2] 孙坤忠,陶谦,周仕明,等. 丁山区块深层页岩气水平井固井技术[J]. 石油钻探技术,2015,43(3):55–60.SUN Kunzhong, TAO Qian, ZHOU Shiming, et al. Cementing technology for deep shale gas horizontal well in the Dingshan Block[J]. Petroleum Drilling Techniques, 2015, 43(3): 55–60. [3] 王磊,曾义金,张青庆,等. 高温环境下油井水泥石力学性能试验[J]. 中国石油大学学报(自然科学版),2018,42(6):88–95.WANG Lei, ZENG Yijin, ZHANG Qingqing, et al. Experimental study on mechanical properties of oil well cement under high temperature[J]. Journal of China University of Petroleum (Edition of Natural Science), 2018, 42(6): 88–95. [4] 曾义金. 干热岩热能开发技术进展与思考[J]. 石油钻探技术,2015,43(2):1–7.ZENG Yijin. Technical process and thinking for development of hot dry rock (HDR) geothermal resources[J]. Petroleum Drilling Techniques, 2015, 43(2): 1–7. [5] 王培义,马鹏鹏,张贤印,等. 中低温地热井钻井完井工艺技术研究与实践[J]. 石油钻探技术,2017,45(4):27–33.WANG Peiyi, MA Pengpeng, ZHANG Yinxian, et al. Drilling and completion technologies for geothermal wells with medium and low temperatures[J]. Petroleum Drilling Techniques, 2017, 45(4): 27–33. [6] 杨春和,王同涛. 深地储能研究进展[J]. 岩石力学与工程学报,2022,41(9):1729–1759.YANG Chunhe, WANG Tongtao. Advance in deep underground energy storage[J]. Chinese Journal of Rock Mechanics and Engineering, 2022, 41(9): 1729–1759. [7] HE Tao, WANG Tongtao, SHAN Baodong, et al. Fatigue damage of wellbore cement sheath in gas storage salt cavern under alternating internal pressure[J]. Rock Mechanics and Rock Engineering, 2022, 55: 715–732. doi: 10.1007/s00603-021-02686-7 [8] 顾军,高兴原,刘洪. 油气井固井二界面封固系统及其破坏模型[J]. 天然气工业,2006,26(7):74–76.GU Jun, GAO Xingyuan, LIU Hong. Two interface isolation system of oil/gas well cementing and its damage model[J]. Natural Gas Industry, 2006, 26(7): 74–76. [9] 顾军,高德利,石凤歧,等. 论固井二界面封固系统及其重要性[J]. 钻井液与完井液,2005,22(2):7–10. doi: 10.3969/j.issn.1001-5620.2005.02.003GU Jun, GAO Deli, SHI Fengqi, et al. The two contacts cementing system in cementing job and its importance[J]. Drilling Fluid & Completion Fluid, 2005, 22(2): 7–10. doi: 10.3969/j.issn.1001-5620.2005.02.003 [10] 郭辛阳,沈忠厚,步玉环,等. 固井微环空成因研究进展及解决方法[J]. 钻采工艺,2009,32(5):1–3.GUO Xinyang, SHEN Zhonghou, BU Yuhuan, et al. Research development of cementing microannular and its solving methods[J]. Drilling & Production Technology, 2009, 32(5): 1–3. [11] 崔茂荣,马勇. 评价钻井液滤饼对固井二界面胶结质量影响的新方法[J]. 天然气工业,2006,26(12):92–93,96.CUI Maorong, MA Yong. A new method for evaluating the effects of drilling fluid filter cake on bond quality of the second cementing interface[J]. Natural Gas Industry, 2006, 26(12): 92–93,96. [12] 郭辛阳,步玉环,李娟,等. 变温条件下泥饼对二界面胶结强度的影响[J]. 钻井液与完井液,2010,27(1):55–57.GUO Xinyang, BU Yuhuan, LI Juan, et al. The effect of mud cake on the bond strength of the second interface under varied temperatures[J]. Drilling Fluid & Completion Fluid, 2010, 27(1): 55–57. [13] PLANK J, TIEMEYER C, BUELICHEN D, et al. A study of cement/mudcake/formation interfaces and their impact on the sealing quality of oilwell cement[R]. SPE 170452, 2014. [14] 徐璧华,卢翔,谢应权. 高温高压下油井水泥环胶结强度测试新方法[J]. 天然气工业,2016,36(11):65–69. doi: 10.3787/j.issn.1000-0976.2016.11.008XU Bihua, LU Xiang, XIE Yingquan. A new bonding strength measurement method for oil well cement sheath under high temperatures and high pressures[J]. Natural Gas Industry, 2016, 36(11): 65–69. doi: 10.3787/j.issn.1000-0976.2016.11.008 [15] 柳华杰,步玉环,梁岩,等. 环空扰动固井二界面胶结性能评价装置及方法[J]. 实验室研究与探索,2020,39(7):78–83. doi: 10.3969/j.issn.1006-7167.2020.07.017LIU Huajie, BU Yuhuan, LIANG Yan, et al. Device and method for evaluating the cementation property of cement-formation interface under disturbance[J]. Research and Exploration in Laboratory, 2020, 39(7): 78–83. doi: 10.3969/j.issn.1006-7167.2020.07.017 [16] 杨振杰,姜晓强,吴志强,等. 固井水泥环完整性模拟评价实验仪研究[J]. 钻井液与完井液,2013,30(6):9–12. doi: 10.3969/j.issn.1001-5620.2013.06.003YANG Zhenjie, JIANG Xiaoqiang, WU Zhiqiang, et al. Research on simulation evaluation instrument of the integrity of cement sheath[J]. Drilling Fluid & Completion Fluid, 2013, 30(6): 9–12. doi: 10.3969/j.issn.1001-5620.2013.06.003 [17] MAAGI M, PIN G, JUN G. Influence of nano-TiO2 on the wellbore shear bond strength at cement-formation interface[J]. Upstream Oil and Gas Technology, 2020(5): 100016. [18] OPEDAL N, TODOROVIC J, TORSAETER M, et al. Experimental study on the cement-formation bonding[R]. SPE 168138, 2014. [19] BOIS A R, GAMIER A, RODOT F, et al. How to prevent loss of zonal isolation through a comprehensive analysis of microannulus formation[R]. SPE 124719, 2011. [20] SHENOLD C, TEODORIU C. Development of a structured workflow for enhanced well cement integrity: Lessons learned and the way ahead[J]. Journal of Natural Gas Science and Engineering, 2016, 36: 824–836. doi: 10.1016/j.jngse.2016.10.042 -
