中国石化极地冷海钻井技术研究进展与发展建议

路保平 侯绪田 柯珂

路保平, 侯绪田, 柯珂. 中国石化极地冷海钻井技术研究进展与发展建议[J]. 石油钻探技术, 2021, 49(3): 1-10. doi: 10.11911/syztjs.2021046
引用本文: 路保平, 侯绪田, 柯珂. 中国石化极地冷海钻井技术研究进展与发展建议[J]. 石油钻探技术, 2021, 49(3): 1-10. doi: 10.11911/syztjs.2021046
LU Baoping, HOU Xutian, KE Ke. Achievements and Developing Suggestions of Sinopec’s Drilling Technologies in Arctic Sea[J]. Petroleum Drilling Techniques, 2021, 49(3): 1-10. doi: 10.11911/syztjs.2021046
Citation: LU Baoping, HOU Xutian, KE Ke. Achievements and Developing Suggestions of Sinopec’s Drilling Technologies in Arctic Sea[J]. Petroleum Drilling Techniques, 2021, 49(3): 1-10. doi: 10.11911/syztjs.2021046

中国石化极地冷海钻井技术研究进展与发展建议

doi: 10.11911/syztjs.2021046
基金项目: 国家重点研发计划项目“极地冷海钻井关键技术研究”(编号:2016YFC0303300)部分研究内容
详细信息
    作者简介:

    路保平(1962—),男,河北临城人,1982年毕业于华东石油学院钻井工程专业,2001年获石油大学(北京)油气井工程专业工学博士学位,正高级工程师,国家有突出贡献中青年专家,主要从事石油工程技术研究及相关管理工作。系本刊编委会主任。E-mail:lubp.sripe@sinopec.com

  • 中图分类号: TE249

Achievements and Developing Suggestions of Sinopec’s Drilling Technologies in Arctic Sea

  • 摘要: 北极油气资源丰富,但其低温、浅层灾害、冻土层、井筒处于大温变条件等地质、环境因素给钻井作业带来诸多挑战,为此,在“十三五”期间,中国石化以钻井安全环保高效为总目标,以解决钻井装备及工具、钻井工艺及措施、井筒工作流体的“冷”适应性问题为核心,进行了钻井灾害风险评价控制与环保、钻井关键装备及工具、钻井工艺与井筒工作液等关键技术研究,在浅层气、天然气水合物灾害地层的定量风险评价方法、–50 ℃低温轨道钻机及钻井工具、冻土层井壁稳定性评价与控制技术、低温钻井液与固井水泥浆等工程技术方面取得了重要进展,初步形成了极地冷海钻井关键技术体系。随着北极油气开发,陆地上将进入更高纬度、更厚永冻层区域,海洋上将向更深水域、常年冰或更厚浮冰海域进军,极地冷海钻井将面临更大的挑战,需要进一步完善极地冷海钻井完井技术理论与方法,研制新型钻井完井关键装备与工具,形成较为完善的极地冷海钻井完井技术体系,以满足北极地区油气藏高效勘探开发的需求,提升我国石油公司在极地油气合作项目中的经济效益和核心竞争力。
  • 图  1  浅层地质灾害声波特征识别模拟试验装置

    Figure  1.  Simulation system for the acoustic identification of shallow hazards

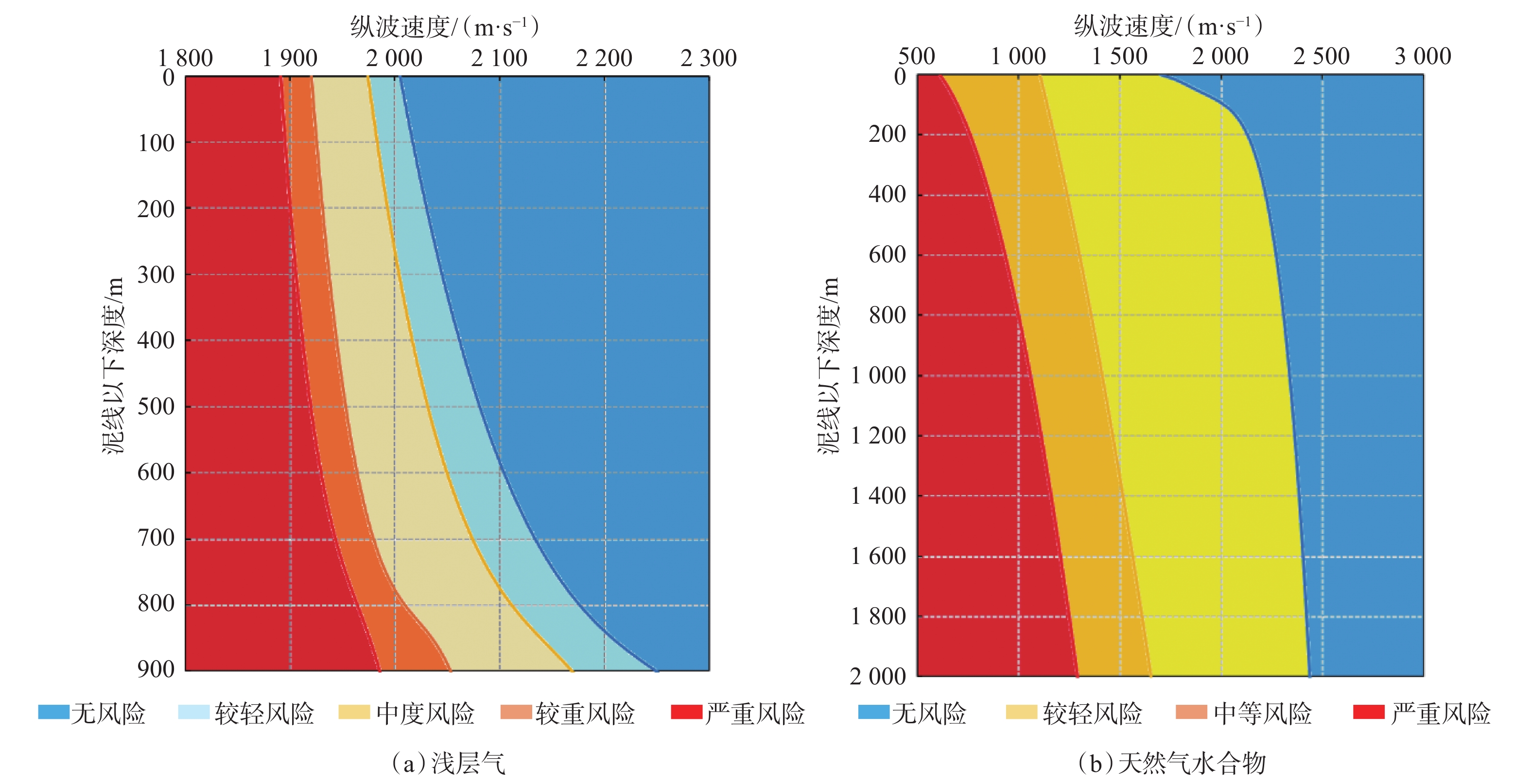

    图  2  浅层气与天然气水合物风险定量预测图版

    Figure  2.  Shallow gas and gas hydrate risk quantitative prediction chart

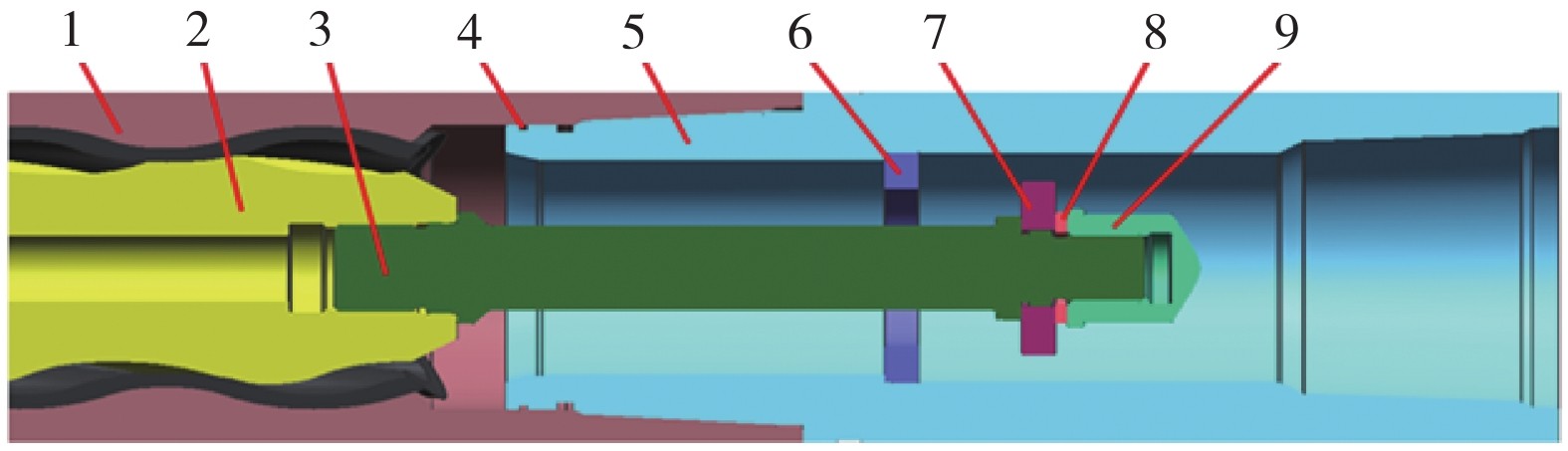

    图  3  螺杆钻具的基本结构

    1. 定子;2. 转子;3. 防掉杆;4. O形密封圈;5. 防掉接头;6. 防掉档盘;7. 防掉垫圈;8. 防松垫片;9. 防掉螺母

    Figure  3.  Basic structure of the PDM (Positive Displacement Motor)

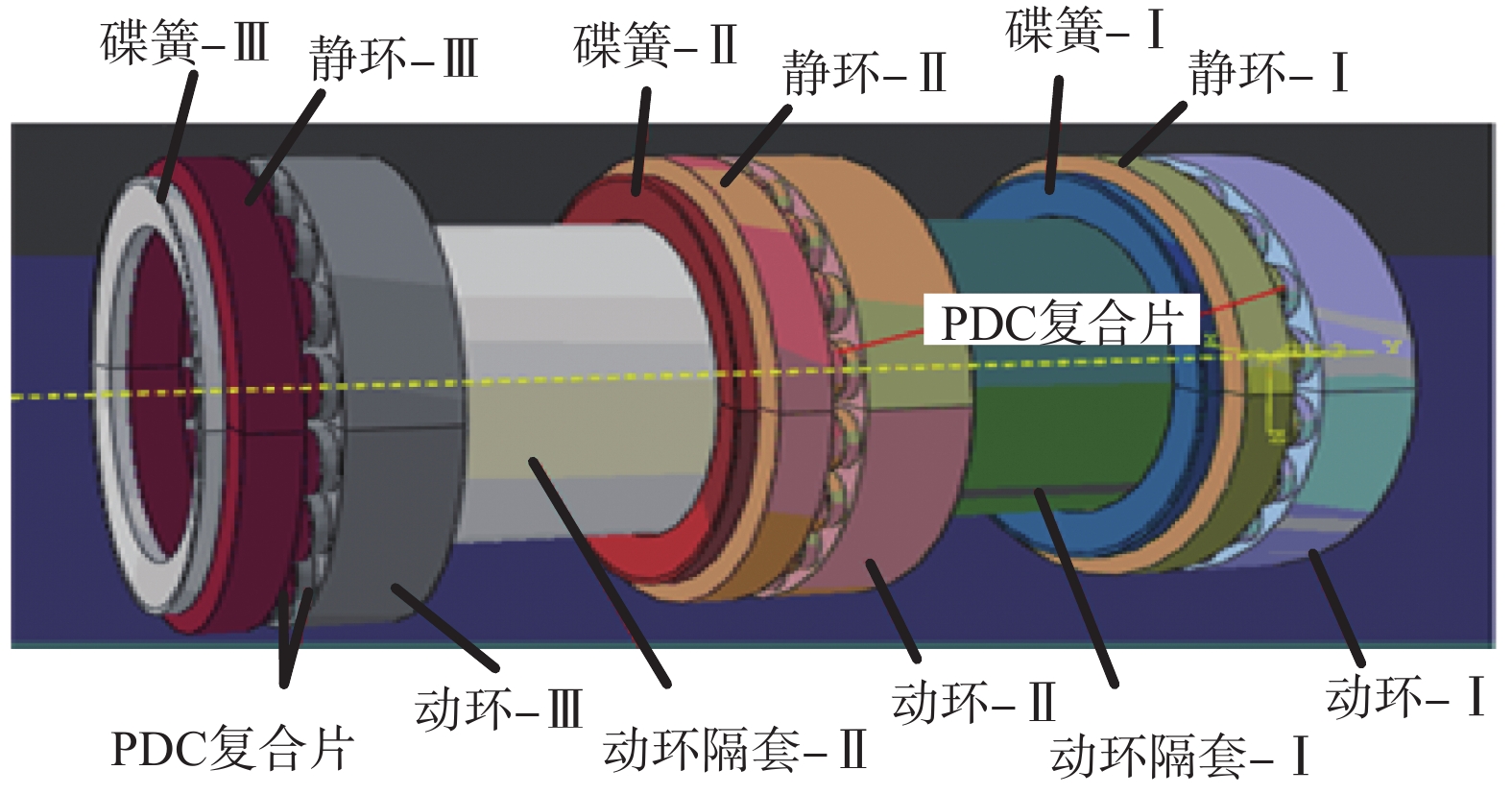

    图  4  PDC轴承的基本结构

    Figure  4.  Basic structure of the PDC bearing

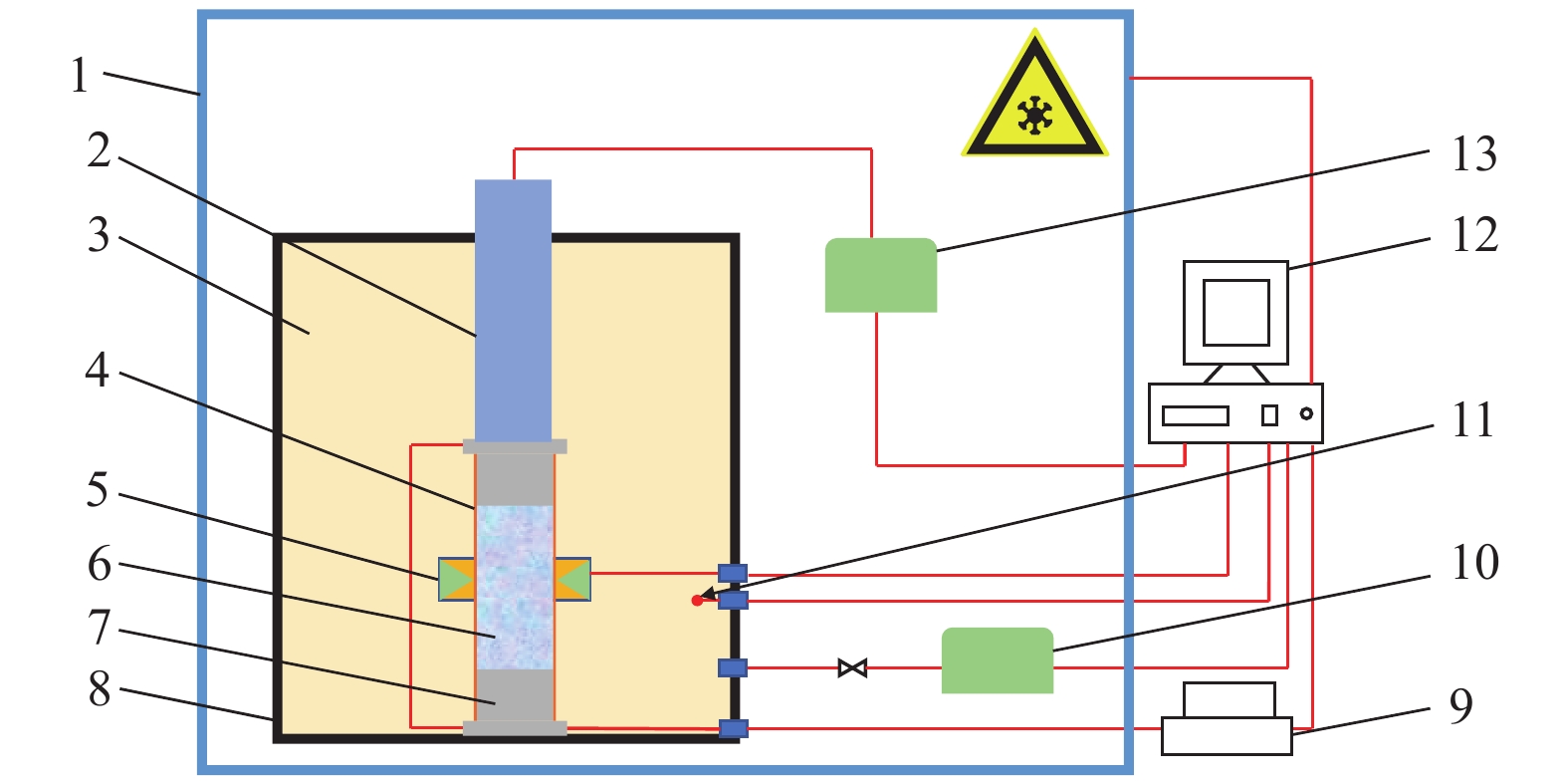

    图  5  低温岩石力学试验系统的基本组成

    1. 冷库;2. 轴压加载压头;3. 低温液压油;4. 橡胶套;5. 变形传感器;6. 冻土试样;7. 声波压头;8. 高压釜;9. 声波仪;10. 围压伺服系统;11. 温度传感器;12. 信息采集系统;13. 轴压伺服系统

    Figure  5.  Basic composition of the rock mechanics test system at a low temperature

    图  6  埋深600 m冻土抗压强度随围压和温度的变化曲线

    Figure  6.  Curves representing the compressive strength of (600 m deep) permafrost with confining pressure and temperature

    图  7  不同条件下井眼延伸极限预测图版

    Figure  7.  Prediction chart for borehole extension limits under different conditions

    图  8  低温早强固井水泥浆水化产物分析结果

    Figure  8.  Hydration products analysis of low-temperature early-strength cement slurry

    表  1  不同规格Q345E钢板–50 ℃下的冲击试验结果

    Table  1.   Impact test results of Q345E steel plates with different specifications at –50 °C

    序号材料冲击功/J结果
    1Q345E/-16277 279 287 合格
    2Q345E/-20887482合格
    3Q345E/-36248 231 209 合格
    4Q345E/-40346 2157合格
    5Q345E/-45402538合格
    6Q345E/200X160X16958680合格
    7Q345E/160X120X12171 134 158 合格
    GB/T 1591—2008和API 4F
    标准的参考值
    平均值27 J,单个值20 J
    下载: 导出CSV

    表  2  40CrNiMo合金钢采用不同热处理工艺后的低温冲击试验结果

    Table  2.   Low-temperature impact test results of 40CrNiMo alloy steel treated with different heat treatment processes

    序号材料抗拉强
    度/MPa
    屈服强
    度/MPa
    延伸率,
    %
    冲击功/
    J
    热处理工艺
    140CrNiMo10528861326A ℃淬火+
    560 ℃回火
    240CrNiMo10108681435B ℃淬火+
    585 ℃回火
    340CrNiMo9808501340A ℃淬火+
    600 ℃回火
    440CrNiMo9457601351B ℃淬火+
    620 ℃回火
    540CrNiMo9687701356C ℃淬火+
    635 ℃回火
    API 8C标准的
    参考值
    ≥820≥758≥12≥27
    下载: 导出CSV

    表  3  两种低温钻井液体系的常规性能

    Table  3.   Conventional performance of two low-temperature drilling fluid systems

    钻井液试验温度/℃表观黏度/(mPa·s)塑性黏度/(mPa·s)动切力/Paϕ6读数API滤失量/mL润滑系数pH值
    配方13026.016.010.067.20.1609
    1031.521.010.566.4
    041.524.017.575.6
    –10 50.531.019.574.4
    –25 70.044.026.093.0
    配方23032.521.011.587.20.0949
    444.528.516.094.4
    047.531.016.510 3.0
     注:配方1为–25~0 ℃低温钻井液体系;配方2为0~4 ℃低温钻井液体系;上述2种钻井液体系的密度均为1.15 kg/L。
    下载: 导出CSV
